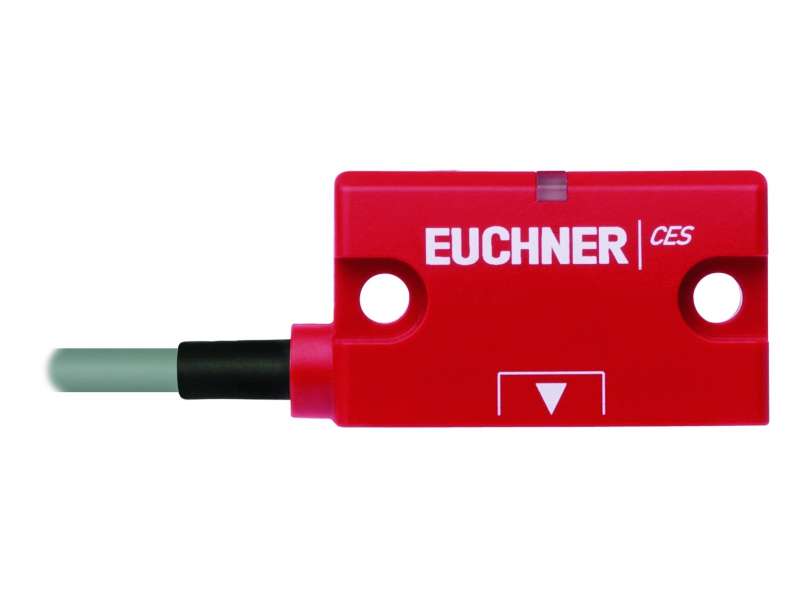

EUCHNER Read head CES-A-LNN-...hard-wired encapsulated cable 10 m, PVC, CES-A-LNN-10V; 113294
Read head CES-A-LNN-...hard-wired encapsulated cable 10 m, PVC, CES-A-LNN-10V; 113294 Cube-shaped design 42 x 25 mm Mounting compatible with series CES-A-LNA/LCA...
Cena na upit
Read head CES-A-LNN-...hard-wired encapsulated cable 10 m, PVC, CES-A-LNN-10V; 113294
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- Hard-wired encapsulated cable, PVC
- Cable length 10 m
Combination options
Suitable for connection to a CES-AZ evaluation unit
Attention: The actuating range may vary depending on the substrate material and installation situation.
Important: Actuators must be ordered separately!
Approvals
Operating and display elements
| LED display | white: valid actuator detected |
Electrical connection values
| Connecting cable | PVC, length 10m, Ø 4.6 mm, with crimped ferrules |
| Power supply | Via evaluation unit |
Mechanical values and environment
| Connection type | hard-wired encapsulated connecting cable |
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Cable length | |
| maximum allowed | max. 25 m |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... 70 °C |
| Material | |
| Housing | Reinforced thermoplastic (PBT), fully encapsulated |
| Method of operation | inductive |
-
EUCHNER 113294
