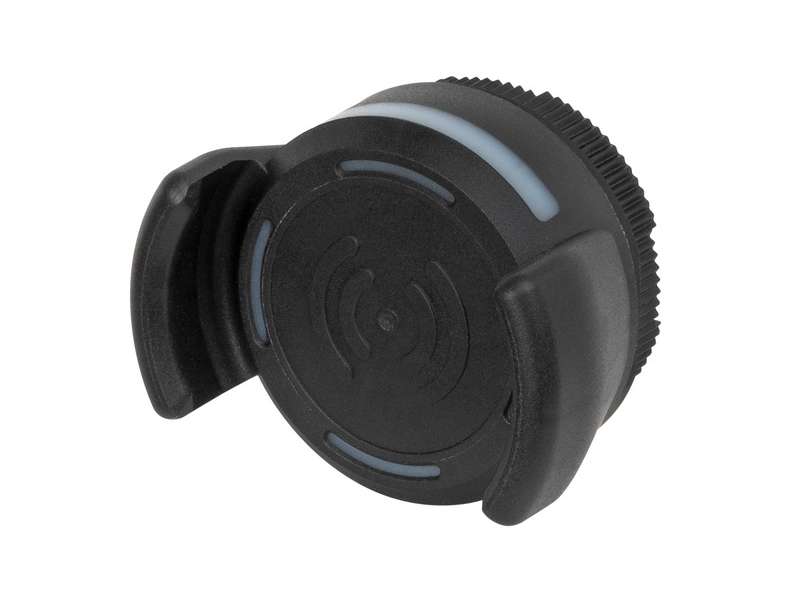

EUCHNER Electronic-Key adapter CKS, round design CKS-A-LA1-SC-171792 (Order no. 171792)
Electronic-Key adapter CKS, round design CKS-A-LA1-SC-171792 (Order no. 171792)...
Cena na upit
Electronic-Key adapter CKS, round design CKS-A-LA1-SC-171792 (Order no. 171792)
Electronic-Key adapter CKS, round design
- Key adapter with integrated CES read head
- Mechanical detent mechanism for inserted key
- LED indicator when key detected
- Simple connection via M8 plug connector(s)
- Mounting; assembly at the front; mounting cut-out Ø 22.5 mm
Combination options
Suitable for connection to a CES-AZ-.ES evaluation unit or CES-FD field device
Important!: The Electronic-Key adapter CKS must not be used as a lockout bar in combination with a multicode evaluation unit.
Important: Keys must be ordered separately!
Approvals
Workspace
| Secured switch-off distance sar | |
| related to the end stop of the inserted key | max. 35 mm |
| Secured switching distance sao | |
| related to the end stop of the inserted key | min. 2 mm |
| Switching hysteresis | 1 mm |
Operating and display elements
| LED display | green: valid key recognized |
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Connection type | M8 plug connector, 3-pin |
| Tightening torque | |
| Mounting via enclosed nut | 1.1 ... 1.3 Nm |
| Installation orientation | on the front |
| Cable length | max. 25 m |
| Mounting cut-out | D22 (EN IEC 60947-5-1) |
| Degree of protection | |
| IP69 when installed; IP20 on the rear side | IP65/IP67/IP69/IP69K |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | Plastic TPU, PBT |
| Method of operation | inductive |
-
EUCHNER 171792
-
MAN Operating-Instructions-Key-Adapter-CKS-A-L… Multilang 3120110 MAN20001713
