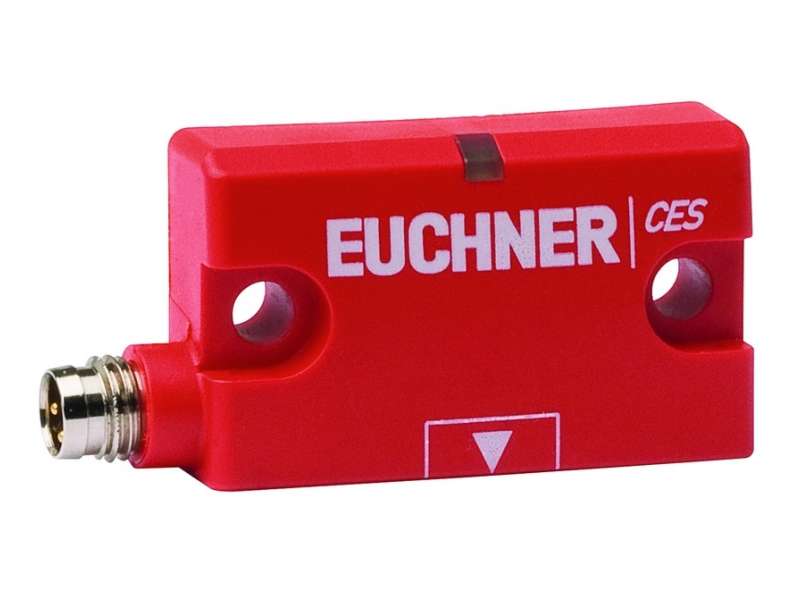

EUCHNER Read head CES-A-LNN-SC... M8 plug connector, SIGNALGEBER CES-A-LNN-SC; 106601
Read head CES-A-LNN-SC... M8 plug connector, SIGNALGEBER CES-A-LNN-SC; 106601...
Cena na upit
Read head CES-A-LNN-SC... M8 plug connector, SIGNALGEBER CES-A-LNN-SC; 106601
Read head CES-A-LNN-SC... M8 plug connector
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- With plug connector M8
Approvals
Operating and display elements
| LED display | white: valid actuator detected |
Electrical connection values
| Power supply | via evaluation unit |
Mechanical values and environment
| Connection type | M8 plug connector, 3-pin |
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Installation orientation | any |
| Cable length | |
| maximum allowed | max. 25 m |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Material | |
| Housing | Reinforced thermoplastic (PBT), fully encapsulated |
| Method of operation | inductive |
