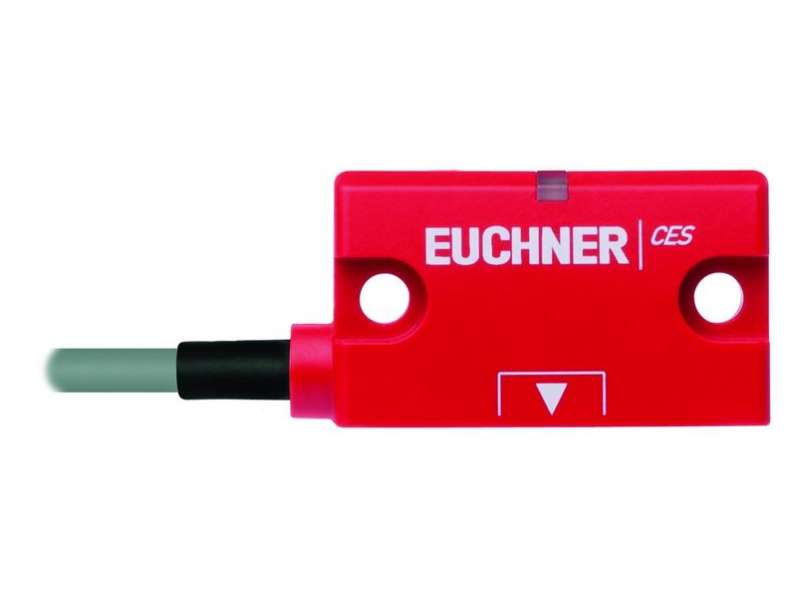

EUCHNER Read head CES-A-LNN-05V-106602, hard-wired encapsulated cable 5 m, PVC; 106602
Read head CES-A-LNN-...hard-wired encapsulated cable 5 m, PVC, CES-A-LNN-05V-106602 (Order no. 106602) // Cube-shaped design 42 x 25 mm Mounting compatible with...
Cena na upit
Read head CES-A-LNN-...hard-wired encapsulated cable 5 m, PVC, CES-A-LNN-05V-106602 (Order no. 106602)
//
//
- Cube-shaped design 42 x 25 mm
- Mounting compatible with series CES-A-LNA/LCA
- LED for indicating the door position
- Hard-wired encapsulated cable, PVC
- Cable length 5 m
Controls and indicators
| LED indicator | white: valid actuator detected |
Electrical connection ratings
| Connecting cable | PVC, length 5m, Ø 4.6 mm, with crimped ferrules |
| Power supply | via evaluation unit |
Mechanical values and environment
| Connection | hard-wired encapsulated connecting cable |
| Degree of protection | IP67 |
| Material | |
| Housing | Reinforced thermoplastic (PBT), fully encapsulated |
| Installation orientation | any |
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Cable length | |
| maximum allowed | max. 25 m |
| Ambient temperature | -25 ... +70 °C |
| Method of operation | inductive |
-
DATA Multilang 02 ast 686747
