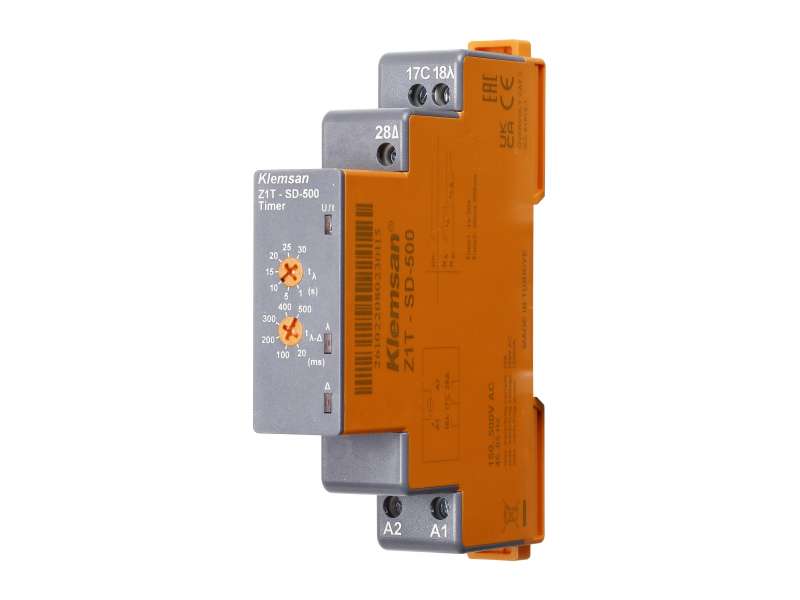

Klemsan Star-Delta Timer Relay Z1T-SD-500, 150-500 VAC; 261022
Klemsan Star-Delta Timer Relay Z1T-SD-500, 150-500 VAC; 261022...
Cena bez pdv-a: 4.074,80 |
Cena sa pdv-om: 4.889,76 |
Klemsan Star-Delta Timer Relay Z1T-SD-500, 150-500 VAC; 261022
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Case Width (mm)
18
Mounting Type
Panel & Rail
Supply Frequency
45-65 Hz
Output Type
Relay
Functions
SD
Restore Time
Maks. 100ms
Trigger Input Voltage
----
POWER SUPPLY
Voltage
150-500 VAC
Power Consumption
<1,5W DC / <10VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to + 60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95%
BACKUP CONNECTIONS
Type
2 C/O (SPDT)
Max. Values - AC (NO side)
16A/250V; 2000VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
TIME INTERVAL
Timing 1
0,1 sn .. 30 sn
Timing 2
20 msn .. 500 msn
-
Z1T-SD-500
-
Special function 31072024-TR-EN
