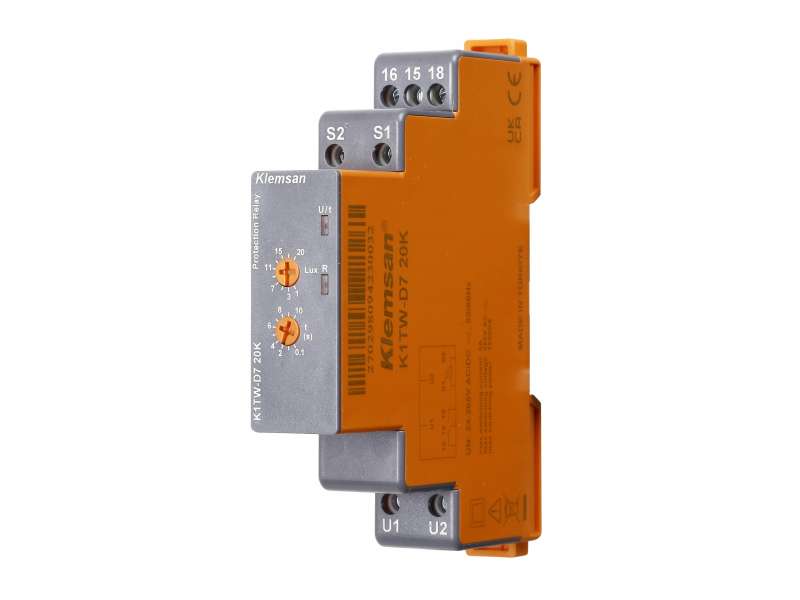

Klemsan Luminious Intensity Monitoring K1TW-D7 20K; 270298

Klemsan Luminious Intensity Monitoring K1TW-D7 20K; 270298

Klemsan Luminious Intensity Monitoring K1TW-D7 20K; 270298...

Brand: Klemsan
Šifra: 270298
Dostupnost: Proveriti dostupnost
Cena bez pdv-a: 4.761,38
Cena sa pdv-om: 5.713,66
Klemsan Luminious Intensity Monitoring K1TW-D7 20K; 270298

GENERAL

Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
EMC-EMI
ok

POWER SUPPLY

Voltage
24-265 V DC / 24-265 V AC
Frequency
50-60Hz
Consumption
<13VA AC

ENVIRONMENTAL CONDITIONS

Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)

BACKUP CONNECTIONS

Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)

MONITORING FUNCTIONS

Light Intensity Monitoring Limit
1-20 lux
Light Intensity Monitoring Delay Time
"ton= 1 .. 60 sn / toff= 1 - 60 sn"
  • Special Function 23072024-TR-EN

    Special Function 23072024-TR-EN
