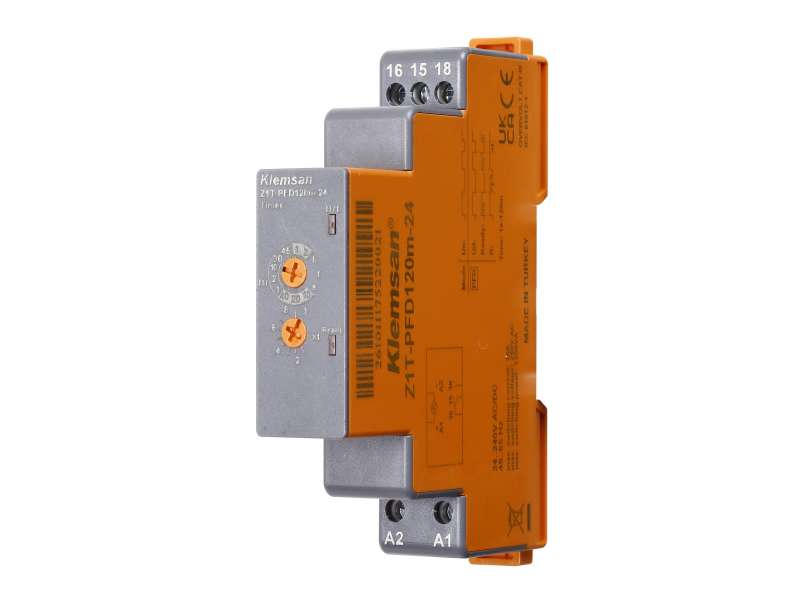

Klemsan Timer Relay Z1T-PFD120m-24, Power off delay timer-120 min, 1 CO; 261011
Klemsan Timer Relay Z1T-PFD120m-24, Power off delay timer-120 min, 1 CO; 261011...
Cena bez pdv-a: 7.578,24 |
Cena sa pdv-om: 9.093,89 |
Klemsan Timer Relay Z1T-PFD120m-24, Power off delay timer-120 min, 1 CO; 261011
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Case Width (mm)
18
Mounting Type
Panel & Rail
Supply Frequency
45-65 Hz
Output Type
Relay
Functions
PFD
Restore Time
Maks. 100ms
Trigger Input Voltage
----
POWER SUPPLY
Voltage
24-240 VDC / 24-240 VAC
Power Consumption
<8W DC / <8VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to + 60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95%
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
TIME INTERVAL
Timing 1
1 sn .. 120 dk
Timing 2
--
-
Single functional 28112024-TR-EN
-
Z1T-PFD120m-24
