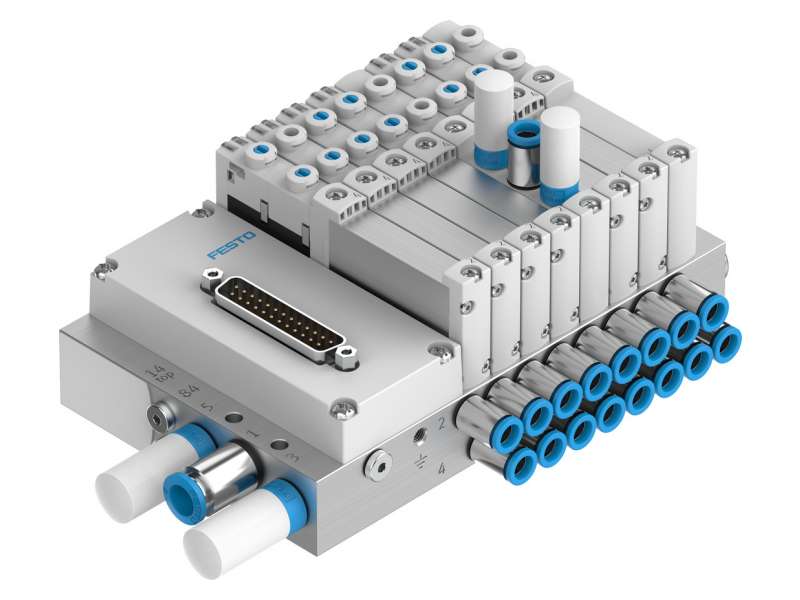

Festo Valve manifold VTUG ; 573606
Compact and universal, with high flow rates. Optimized valve manifold variants for installation in control cabinets, with manifold rail for increased corrosion protection....
Cena na upit
Compact and universal, with high flow rates. Optimized valve manifold variants for installation in control cabinets, with manifold rail for increased corrosion protection. Also with hot swap function for replacing pneumatic valves without interruptions to the ongoing process.
- Low-cost fixed grid
- Extremely easy assembly
- Exchangeable electrical actuation
- IO-Link® capable
- Pneumatic valves VUVG with individual electrical connection can be integrated
- Also available with pneumatic multiple connector plate
- Part of the VG series
- Energy-efficient thanks to reverse operation and targeted pressure reduction
- Optimized, space-saving variant available for installation in control cabinets
- Variants with hot swap connections: pneumatic valves can be replaced during ongoing process
- Valve function
-
5/2, monostable
2x3/2, open, monostable
3/2, closed, monostable
3/2, open, monostable
2x3/2, closed, monostable
5/2, bistable
5/3, closed
2x3/2, open/closed, monostable
5/3, exhausted
5/3, pressurized - KC characters
- KC EMC
- Valve size
-
10 mm
14 mm
18 mm - Max. standard nominal flow rate
-
330 l/min at 10 mm
630 l/min at 14 mm
1200 l/min at 18 mm - Pneumatic working port
-
QS-6
G1/4
QS-4
QS-10
QS-1/4
QS-3/16
QS-5/32
M7
QS-8
G1/8
QS-5/16
QS-3
QS-3/8
QS-1/8
M5 - Operating pressure
- -0.9 bar ... 10 bar
- Electrical actuation
-
Fieldbus
IO-Link®
I-Port
Multi-pin
Individual connection - Max. no. of valve positions
- 24
- Max. no. of pressure zones
- 13
- Electrical I/O system
- no
- Ambient temperature
- -5 °C ... 60 °C
- Degree of protection
-
IP40
IP65
IP67
IP69K - Certification
-
RCM compliance mark
c UL us - Recognized (OL)
c CSA us (OL) - Type code
- VTUG
- Exhaust air function
- With flow control option
- Actuation type
- Electrical
- Sealing principle
- Soft
- Design
- Piston gate valve
- Type of control
- Pilot-controlled
- Valve manifold design
- Fixed grid
- Signal status display
- LED
- Nominal pick-up current per solenoid coil
- 47 mA to 20 ms
- Nominal operating voltage DC
- 24 V
- Nominal current with current reduction
- 15.5 mA after 20 ms
- Permissible voltage fluctuations
- +/- 10 %
- Certificate issuing authority
- UL MH19482
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
-
As per EU EMC directive
as per EU explosion protection directive (ATEX) - Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials
- RoHS-compliant
- Seals material
-
HNBR
NBR
