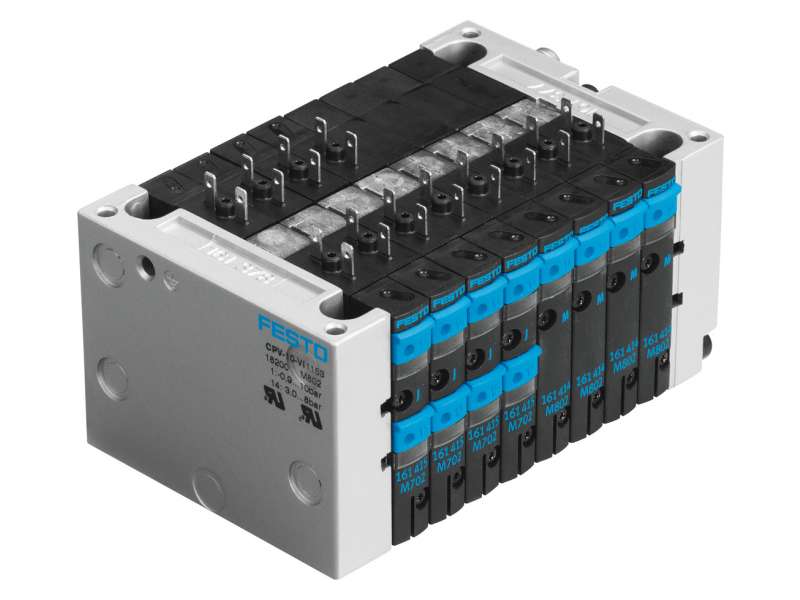

Festo Valve manifold CPV10-VI ; 18200
Valve manifold in segmented design with option for connecting to type CPX electronic terminal via CP interface. Diagnostic and condition monitoring functions (Fieldbus...
Cena na upit
Valve manifold in segmented design with option for connecting to type CPX electronic terminal via CP interface. Diagnostic and condition monitoring functions (Fieldbus Direct) included.
- Maximum performance in the smallest of spaces
- Three sizes
- Wide range of connection and mounting options
- Multi-pin or fieldbus control
- IO-Link® capable
- Valve function
-
5/2, bistable
2x3/2, closed, monostable
Vacuum generator
2x3/2, open/closed, monostable
2x2/2 closed, monostable
2x3/2, open, monostable
2x2/2, open/closed, monostable
5/2, monostable
Vacuum generator + 2/2, closed, monostable - KC characters
- KC EMC
- Valve size
- 10 mm
- Max. standard nominal flow rate
- 400 l/min at 10 mm
- Pneumatic working port
-
QS-4
M7
QS-1/4
QS-1/8
QS-6 - Operating pressure
- -0.9 bar ... 10 bar
- Electrical actuation
-
CPI installation system
AS-Interface
Individual connection
Fieldbus
Multi-pin - Max. no. of valve positions
- 8
- Max. no. of pressure zones
- 2
- Electrical I/O system
- yes
- Ambient temperature
- -5 °C ... 50 °C
- Degree of protection
- IP65
- Certification
-
c UL us - Recognized (OL)
RCM compliance mark - Nominal width
- 4 mm
- Type code
- CPV10
- Actuation type
- Electrical
- Sealing principle
- Soft
- Valve terminal type
- 10
- Design
- Piston gate valve
- Max. no. of valve functions
- 16
- Pilot air supply port
-
External
Internal - Valve manifold design
- Fixed grid
- Signal status display
- LED
- Information on operating pressure
- 0 - 8 bar with external pilot air
- Pilot pressure
- 3 bar ... 8 bar
- Suitability for vacuum
- yes
- Nominal operating voltage DC
- 24 V
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T4 X Gc
- Explosion protection certification outside the EU
- NEC 500 Class I, Div. 2
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Explosion prevention and protection
-
Zone 2 (ATEX)
Class I, Div. 2 (US) - Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
-
as per EU explosion protection directive (ATEX)
As per EU EMC directive - Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
-
1 - Low corrosion stress
2 - Moderate corrosion stress - Storage temperature
- -20 °C ... 40 °C
- Temperature of medium
- -5 °C ... 50 °C
- Pilot air port 12/14
- Common port
- Pilot exhaust air port 82/84
- Common port
- Pneumatic connection 1
- Common port
- Pneumatic connection 2
- M7
- Pneumatic connection 3
- Common port
- Pneumatic connection 4
- M7
- Note on materials
- RoHS-compliant
-
18200datasheet
