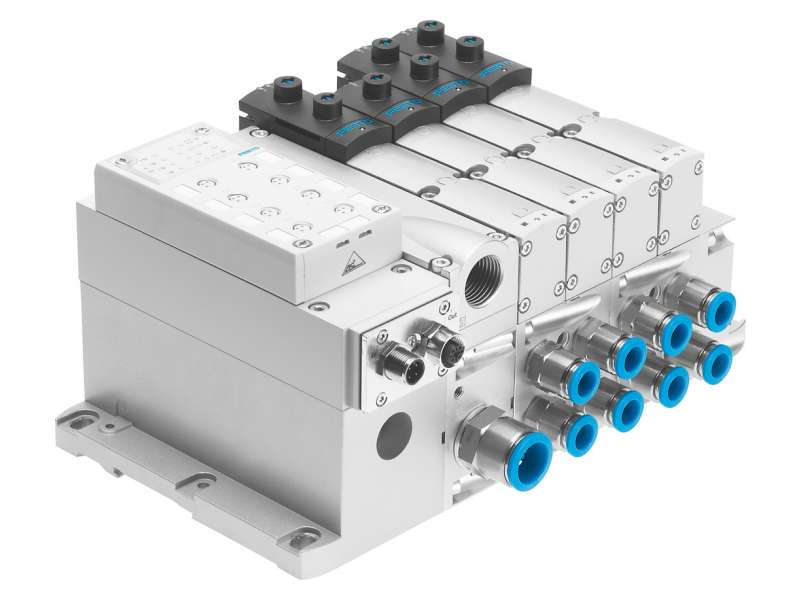

Festo Valve manifold VTSA-F-ASI ; 555566
Height-adjustable valve manifold with metric connections. Activation via AS-Interface. Flow rate-optimized valve manifold VTSA Linking with increased flow rates...
Cena na upit
Height-adjustable valve manifold with metric connections. Activation via AS-Interface.
- Flow rate-optimized valve manifold VTSA
- Linking with increased flow rates
- Functions like industry standard valve manifolds VTSA
- Valve function
-
5/2, bistable
2x3/2, closed, monostable
5/2, monostable, safety function
2x3/2, open/closed, monostable
5/3, exhausted
5/2, monostable
5/3, closed
2x3/2, open, monostable
5/3, pressurized
5/2, bistable, dominant
2x2/2 closed, monostable
5/3, connection 2 pressurized, 4 exhausted - KC characters
- KC EMC
- Valve size
-
65 mm
18 mm
26 mm
52 mm
42 mm - Max. standard nominal flow rate
-
1860 l/min at 42 mm
4000 l/min at 65 mm
2900 l/min at 52 mm
1350 l/min at 26 mm
700 l/min at 18 mm - Pneumatic working port
-
G1/2
G1/4
QS-12
QS-10
QS-6
QS-16
G3/8
G1/8
QS-8
G1 - Operating pressure
- -0.9 bar ... 10 bar
- Electrical actuation
- Fieldbus
- Electrical I/O system
- yes
- Ambient temperature
- -5 °C ... 50 °C
- Degree of protection
- IP65
- Certification
-
C-Tick
c UL us - Recognized (OL)
BIA - Type code
- VTSA
- Exhaust air function
- Via throttle plate
- Actuation type
- Electrical
- Valve terminal type
- 45
- Design
- Piston gate valve
- Pilot air supply port
-
Internal
External - Valve manifold design
- Modular, pneumatic valve sizes can be mixed
- Signal status display
- LED
- Pilot pressure
- 3 bar ... 10 bar
- Suitability for vacuum
- yes
- Nominal operating voltage DC
- 24 V
- Permissible voltage fluctuations
- +/- 10 %
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex nA IIC T3 X Gc
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Explosion prevention and protection
- Zone 2 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
-
as per EU explosion protection directive (ATEX)
As per EU EMC directive - Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Storage temperature
- -20 °C ... 60 °C
- Relative air humidity
- 0 - 90 %
- Note on materials
- RoHS-compliant
-
555566datasheet
