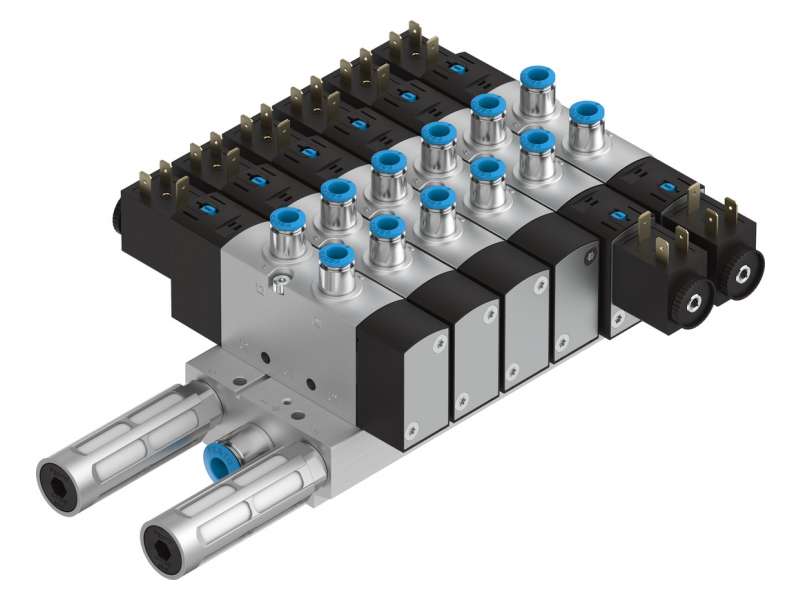

Festo Manifold assembly VTUS-25 ; 8022016

Festo Manifold assembly VTUS-25 ; 8022016

Vacuum-capable valve manifold assembly with individual electric ports. 25 mm grid. Robust pneumatic valves VUVS with long service life Individual electrical connection...

Brand: festo
Šifra: 8022016
Dostupnost: Proveriti dostupnost
Cena na upit
Vacuum-capable valve manifold assembly with individual electric ports. 25 mm grid.

  • Robust pneumatic valves VUVS with long service life
  • Individual electrical connection
  • Pilot air supply in the manifold rail
  • Comprehensive range of accessories
Valve function
2x3/2, closed, monostable
5/3, exhausted
5/3, closed
3/2, closed, monostable
2x3/2, open/closed, monostable
5/3, pressurized
2x3/2, open, monostable
3/2, open, monostable
5/2, bistable
5/2, monostable
Valve size
26.5 mm
Standard nominal flow rate
1000 l/min ... 1300 l/min
Pneumatic working port
1/4 NPT
QS-8
QS-10
G1/4
QS-5/16
QS-1/4
QS-6
QS-3/8
Operating pressure
-0.9 bar ... 10 bar
Electrical actuation
Individual connection
Max. no. of valve positions
16
Max. no. of pressure zones
9
Electrical I/O system
no
Ambient temperature
-10 °C ... 50 °C
Degree of protection
IP67
as per IEC 60529
With plug socket
IP65
Certification
c UL us - Recognized (OL)
Width dimension
27.5 mm
Type code
VTUS
Exhaust air function
With flow control option
Sealing principle
Soft
Design
Plate seat
Piston gate valve
Valve manifold design
Fixed grid
Operating pressure for valve manifold with internal pilot air supply
1.5 bar ... 10 bar
ATEX category gas
II 3G
Type of ignition protection for gas
Ex ec IIC T4 X Gc
ATEX category for dust
II 3D
Type of (ignition) protection for dust
Ex tc IIIC T115°C X Dc
Explosive ambient temperature
-10°C <= Ta <= +60°C
Explosion prevention and protection
Zone 2 (ATEX)
Zone 22 (ATEX)
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-20 °C ... 60 °C
Note on materials
RoHS-compliant
  • 8022016datasheet

    8022016datasheet
