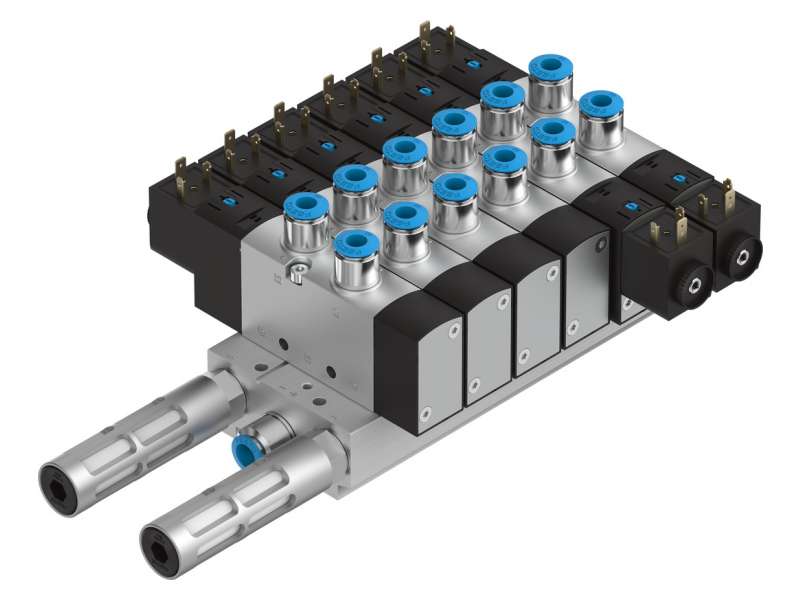

Festo Manifold assembly VTUS-30 ; 8022019

Festo Manifold assembly VTUS-30 ; 8022019

Vacuum-capable valve manifold assembly with individual electric ports. 30 mm grid. Robust pneumatic valves VUVS with long service life Individual electrical connection...

Brand: festo
Šifra: 8022019
Dostupnost: Proveriti dostupnost
Cena na upit
Vacuum-capable valve manifold assembly with individual electric ports. 30 mm grid.

  • Robust pneumatic valves VUVS with long service life
  • Individual electrical connection
  • Pilot air supply in the manifold rail
  • Comprehensive range of accessories
Valve function
3/2, closed, monostable
2x3/2, open/closed, monostable
5/3, exhausted
5/3, closed
2x3/2, closed, monostable
5/2, monostable
2x3/2, open, monostable
3/2, open, monostable
5/2, bistable
5/3, pressurized
Valve size
31 mm
Standard nominal flow rate
1600 l/min ... 2300 l/min
Pneumatic working port
QS-10
QS-5/16
QS-1/2
QS-3/8
QS-12
QS-8
G3/8
3/8 NPT
Operating pressure
-0.9 bar ... 10 bar
Electrical actuation
Individual connection
Max. no. of valve positions
16
Max. no. of pressure zones
9
Electrical I/O system
no
Ambient temperature
-10 °C ... 50 °C
Degree of protection
IP65
IP67
With plug socket
as per IEC 60529
Certification
c UL us - Recognized (OL)
Width dimension
32 mm
Type code
VTUS
Exhaust air function
With flow control option
Sealing principle
Soft
Design
Plate seat
Piston gate valve
Valve manifold design
Fixed grid
Operating pressure for valve manifold with internal pilot air supply
1.5 bar ... 10 bar
Pilot pressure
1.5 bar ... 10 bar
ATEX category gas
II 3G
Type of ignition protection for gas
Ex ec IIC T4 X Gc
ATEX category for dust
II 3D
Type of (ignition) protection for dust
Ex tc IIIC T115°C X Dc
Explosive ambient temperature
-10°C <= Ta <= +60°C
Explosion prevention and protection
Zone 2 (ATEX)
Zone 22 (ATEX)
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-20 °C ... 60 °C
Temperature of medium
-10 °C ... 50 °C
Note on materials
RoHS-compliant
Seals material
NBR
HNBR
TPE-U(PU)
  • 8022019datasheet

    8022019datasheet
