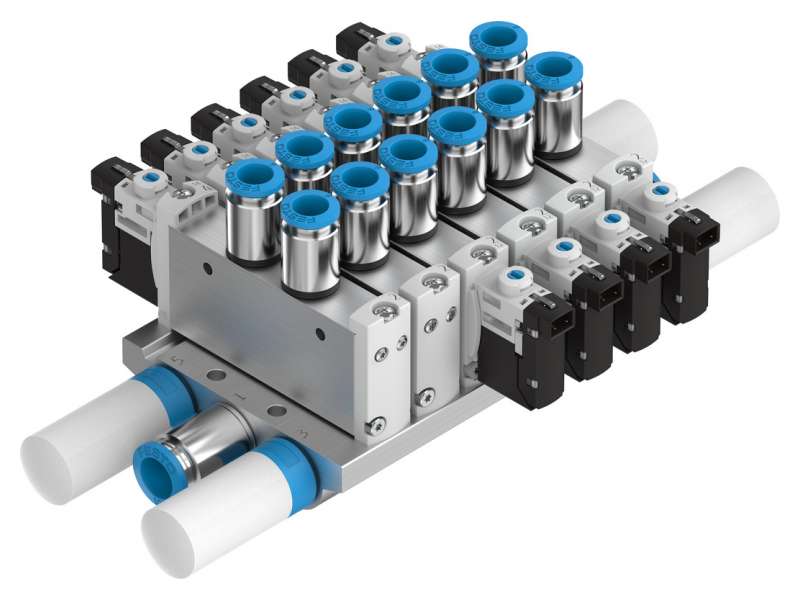

Festo Manifold assembly VTUG-S ; 572230
Highly variable valve battery with adaptation options in all interfaces at every valve position. Compact with small pneumatic valves VUVG Connection technology easy...
Cena na upit
Highly variable valve battery with adaptation options in all interfaces at every valve position.
- Compact with small pneumatic valves VUVG
- Connection technology easy to change via the E-box
- Wide range of valve functions
- Also with semi in-line valves
- Valve function
-
2x3/2, open/closed, monostable
5/2, monostable
2x3/2, closed, monostable
5/3, pressurized
2x3/2, open, monostable
5/3, closed
5/2, bistable
5/3, exhausted - Valve size
-
10 mm
14 mm
18 mm - Max. standard nominal flow rate
-
780 l/min at 14 mm
380 l/min at 10 mm
1380 l/min at 18 mm - Pneumatic working port
-
QS-3
QS-3/16
M3
QS-4
QS-10
QS-1/4
QS-5/16
QS-5/32
G1/4
QS-3/8
M5
QS-8
QS-6
QS-1/8
M7
G1/8 - Operating pressure
- -0.9 bar ... 10 bar
- Electrical actuation
- Individual connection
- Max. no. of valve positions
- 16
- Max. no. of pressure zones
- 9
- Electrical I/O system
- no
- Ambient temperature
- -5 °C ... 60 °C
- Degree of protection
-
IP65
IP40 - Certification
-
c UL us - Recognized (OL)
RCM compliance mark - Type code
- VTUG
- Exhaust air function
- With flow control option
- Actuation type
- Electrical
- Sealing principle
- Soft
- Valve terminal type
- 26
- Design
- Piston gate valve
- Pilot air supply port
-
External
Internal - Valve manifold design
- Fixed grid
- Signal status display
- LED
- Operating pressure for valve manifold with internal pilot air supply
- 1.5 bar ... 8 bar
- Pilot pressure
- 1.5 bar ... 8 bar
- Permissible voltage fluctuations
- +/- 10 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- Restricted ambient and media temperature
-
-5 - 50 °C
Without holding power reduction - Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Temperature of medium
- -5 °C ... 60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials
- RoHS-compliant
- Seals material
-
NBR
HNBR
-
572230datasheet
