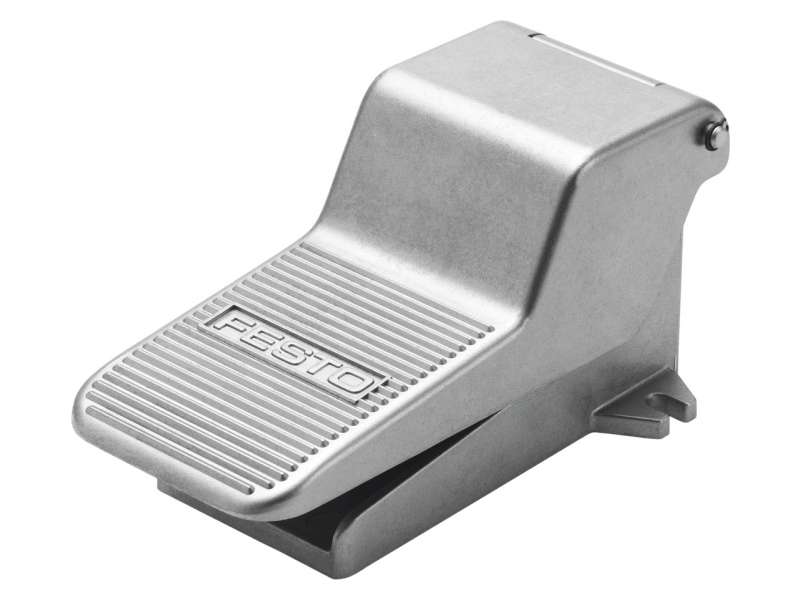

Festo Foot valve F-5-1/4-B ; 8992

Foot valve F-5-1/4-B F-5-1/4-B Part no. 8992...

Brand: festo
Šifra: 8992
Dostupnost: Proveriti dostupnost
Cena na upit

Foot valve F-5-1/4-B

F-5-1/4-B Part no.  8992
Valve function
5/2, monostable
Actuation type
Manual
Standard nominal flow rate
550 l/min
Pneumatic working port
G1/4
Operating pressure
-0.95 bar ... 10 bar
Design
Plate seat
Reset method
Mechanical spring
Nominal width
7 mm
Type code
F
Mounting position
Any
Type of control
Direct
Flow direction
Non-reversible

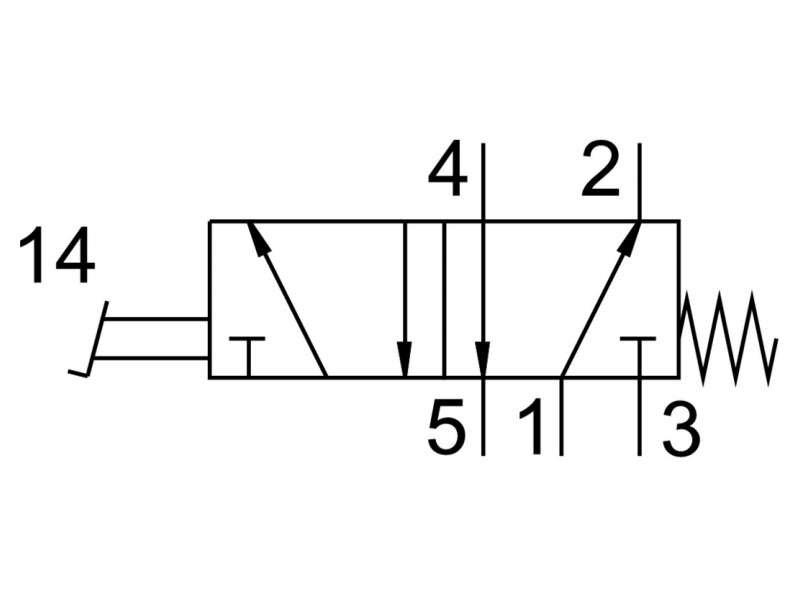

Symbol
00991333
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Actuating force
78 N
Product weight
705 g
Type of mounting
With through-hole
Pneumatic connection 1
G1/4
Pneumatic connection 2
Pneumatic connection 3
G1/4
Pneumatic connection 4
G1/4
Pneumatic connection 5
G1/4
Seals material
NBR
Housing material
Die-cast aluminum
  • 8992datasheet

    8992datasheet

  • VHEM ENUS

    VHEM ENUS
