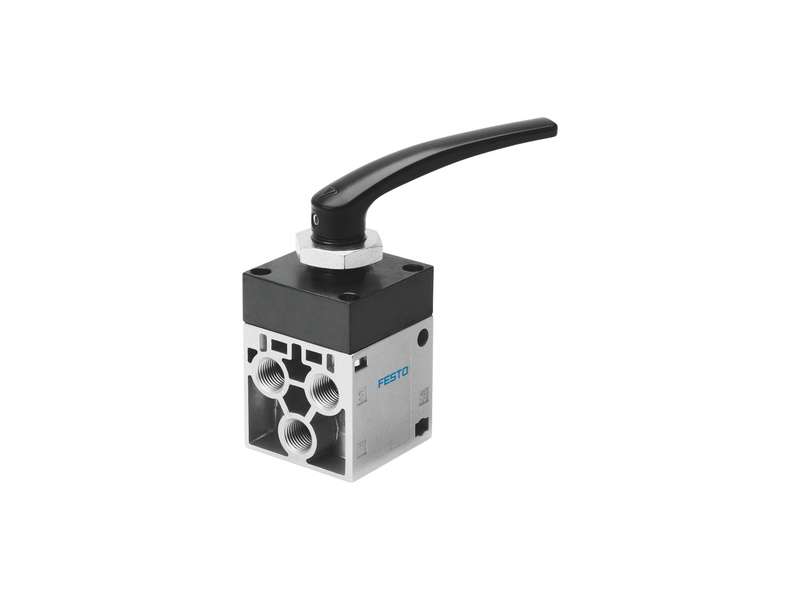

Festo Hand lever valve H-5-1/4-B ; 8995

Hand lever valve H-5-1/4-B...

Brand: festo
Šifra: 8995
Dostupnost: Proveriti dostupnost
Cena na upit

Hand lever valve H-5-1/4-B

Valve function
5/2, bistable
Standard nominal flow rate
550 l/min
Pneumatic working port
G1/4
Operating pressure
-0.95 bar ... 10 bar
Design
Plate seat
Nominal width
7 mm
Type code
H
Type of control
Direct

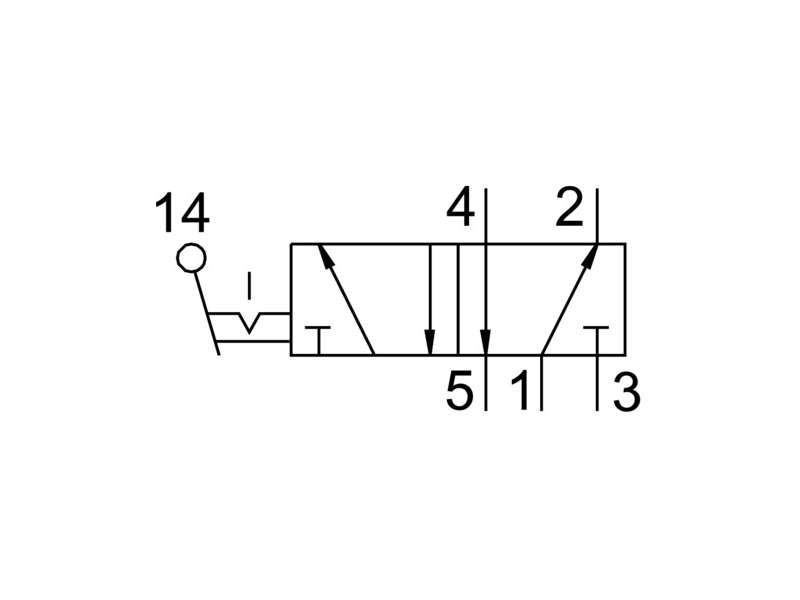

Symbol
00991700
Ambient temperature
-10 °C ... 60 °C
Actuating force
2 N
Product weight
510 g
Type of mounting
With through-hole
Pneumatic connection 1
G1/4
Pneumatic connection 2
Pneumatic connection 3
G1/4
Pneumatic connection 4
G1/4
Pneumatic connection 5
G1/4
Seals material
NBR
Housing material
Die-cast aluminum
  • 8995datasheet

    8995datasheet

  • VHEM ENUS

    VHEM ENUS
