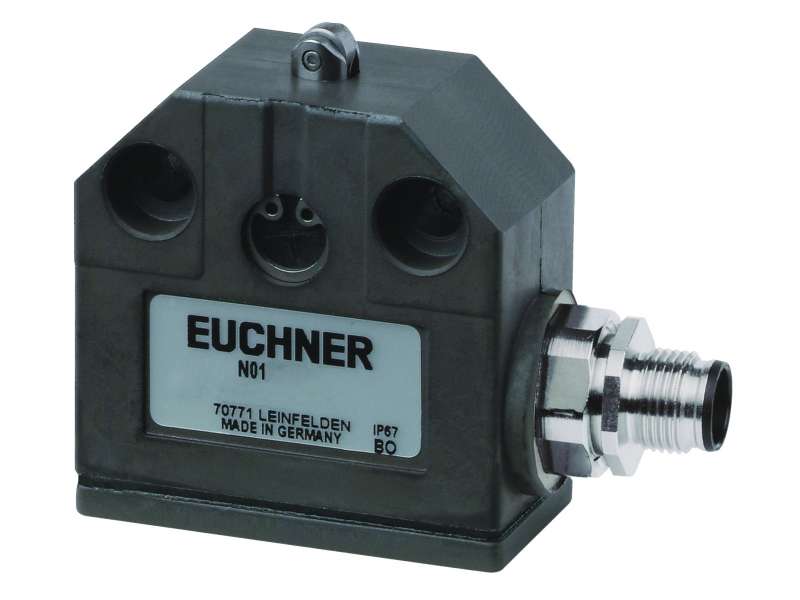

EUCHNER Precision single limit switch N01R550-MC1526; 091001
SINGLE LIMIT SWITCH N01R550-MC1526 (Order no. 091001), Precision single limit switch N01, roller plunger, plug connector M12 Plunger material stainless steel For...
Cena na upit
SINGLE LIMIT SWITCH N01R550-MC1526 (Order no. 091001), Precision single limit switch N01, roller plunger, plug connector M12
- Plunger material stainless steel
- For plug connector with LED display
Approvals
Electrical connection values
| Fuse | max. 4 A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 2 kV |
| Utilization category | |
| DC-13 | 2 A 24 V |
| Switching current | |
| min. at DC 24V | 10 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Anfahrgeschwindigkeit | 0.01 ... 50 m/min |
| Connection type | |
| 1 x | Plug connector M12 |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 |
| Actuating element | |
| Slide bearing metal | Roller plunger |
| Actuating force | 15 ... 20 N |
| Installation orientation | any |
| Storage temperature | -25 ... 80 °C |
| Mechanical life | 10 x 10⁶ |
| Switching principle | Changeover contact with snap-action function |
| Degree of protection | IP67 |
| Ambient temperature | -5 ... 80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
Miscellaneous
| C number | |
| C1526 |
-
EUCHNER 091001
