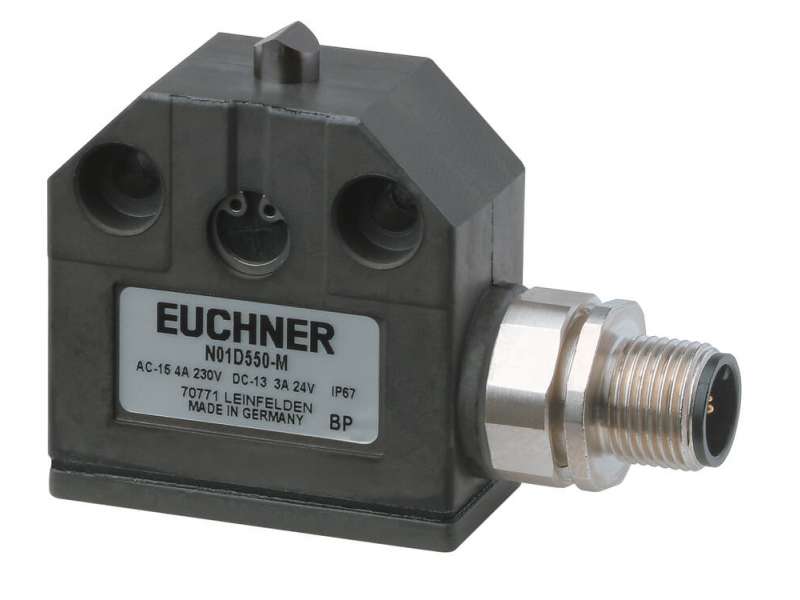

EUCHNER Precision Single Limit Switch N01D550-MC1526 ; 091003
Precision single limit switch N01, chisel plunger, plug connector M12 Plunger material stainless steel For plug connector with LED display...
Cena na upit
Precision single limit switch N01, chisel plunger, plug connector M12
- Plunger material stainless steel
- For plug connector with LED display
Approvals
Mechanical values and environment
| Housing material | Anodized die-cast alloy |
| Weight | |
| Net | 0,07 kg |
| Ambient temperature | -5 ... 80 °C |
| Degree of protection | IP67 |
| Mechanical life | 10 x 106 |
| Contact material | Silver alloy, gold flashed |

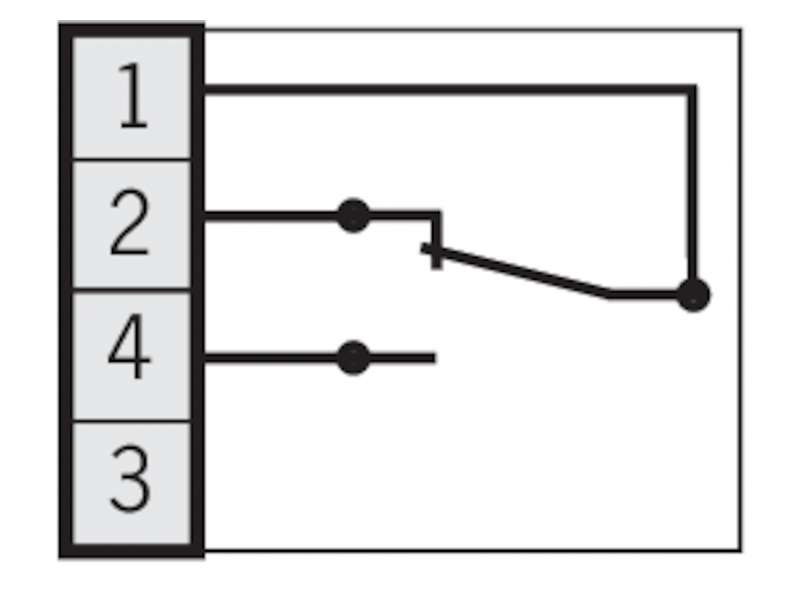

| Switching principle | Changeover contact with snap-action function |
| Installation orientation | Any |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 |
| Connection | |

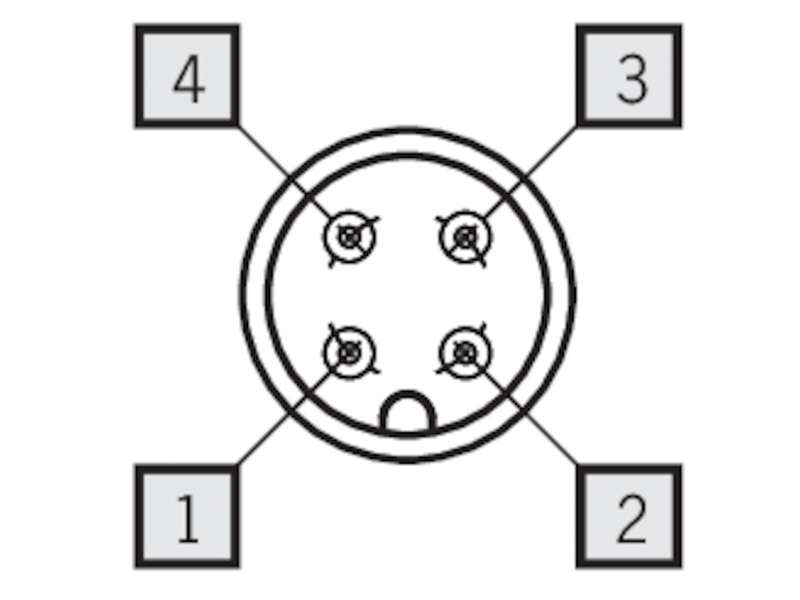

| 1 x | Plug connector M12 |
| Approach speed | 0,01 ... 20 m/min |
| Actuating element | Chisel plunger |
| Actuating force | 15 ... 20 N |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| DC-13 | 2A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 2 kV |
| Switching current | |
| Min. at DC 24V | 10 mA |
Other
| C number | |
| C1526 |
-
Limit Switches Instructions
