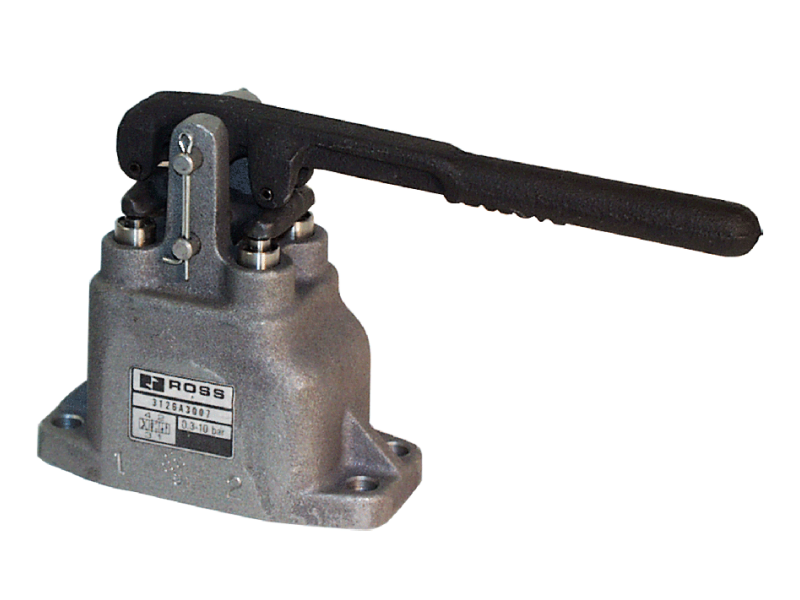

ROSS EUROPA VENTIL RUCNI 0,3-10 bara 4/3 1-1/4 DIREKTNO UPRAVLJAN NORMALNO OTVOREN; 3126A7007
5125410_VENTIL RUCNI 0,3-10 bara 4/3 1-1/4" DIREKTNO UPRAVLJAN NORMALNO OTVOREN 3126A7007 31 Series, 4/3 Manual Horizontal Hand Lever Valve, Open Center, Detented,...
Cena na upit
5125410_VENTIL RUCNI 0,3-10 bara 4/3 1-1/4" DIREKTNO UPRAVLJAN NORMALNO OTVOREN 3126A7007
31 Series, 4/3 Manual Horizontal Hand Lever Valve, Open Center, Detented, Port (In-Out) 1-1/4", NPT, Port (Exhaust) 1-1/2" NPT
31 Series, 4/3 Manual Horizontal Hand Lever Valve, Open Center, Detented, Port (In-Out) 1-1/4", NPT, Port (Exhaust) 1-1/2" NPT
- Lever Valves
- Toggle Lever Valves
- Hand Lever Valves
| Valve Type | Directional Control |
| Series | 31 |
| Application | General |
| Actuation | Manual Hand Lever |
| Function | 4/3 |
| Default Position | Normally Open |
| Center Position | Open |
| Return | Detented |
| Thread Type | NPT |
| Inlet Pipe Size | 1-1/4" |
| Outlet Pipe Size | 1-1/4" |
| Exhaust Pipe Size | 1-1/2" |
| Construction | Poppet |
| Mounting | Inline |
| Cv (1-4) | 14 |
| Cv (2-3) | 9.6 |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 4.75 in (121 mm) |
| Width | 8.25 in (210 mm) |
| Height | 14.1 in (358 mm) |
| Weight | 11.0 lb (5.0 kg) |
| Valve Body Material | Cast Aluminum |
| Lever Position | Horizontal |
-
ROSS 11 12 Series Mechanical and Manual Valves Installation Instructions SS105
-
Manual Toggle Lever Valves ROSS-MV TL EN
