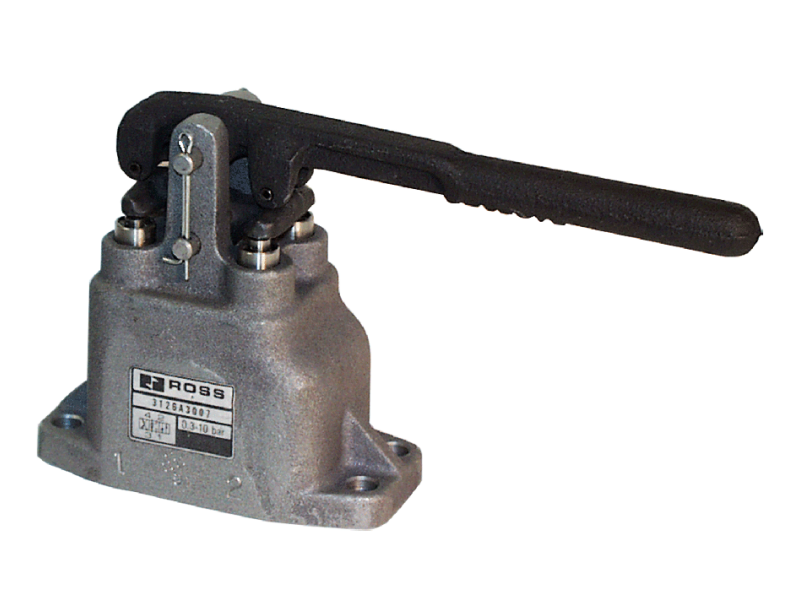

ROSS EUROPA Lever Valves; D3126A6010
Lever Valves; D3126A6010 31 Series, 4/3 Manual Horizontal Hand Lever Valve, Closed Center, Detented, Port (In-Out) G1", Port (Exhaust) G1-1/4" Lever Valves...
Cena na upit
Lever Valves; D3126A6010
31 Series, 4/3 Manual Horizontal Hand Lever Valve, Closed Center, Detented, Port (In-Out) G1", Port (Exhaust) G1-1/4"
31 Series, 4/3 Manual Horizontal Hand Lever Valve, Closed Center, Detented, Port (In-Out) G1", Port (Exhaust) G1-1/4"
- Lever Valves
- Toggle Lever Valves
- Hand Lever Valves
| Valve Type | Directional Control |
| Series | 31 |
| Application | General |
| Actuation | Manual Hand Lever |
| Function | 4/3 |
| Default Position | Normally Closed |
| Center Position | Closed |
| Return | Detented |
| Thread Type | G |
| Inlet Pipe Size | 1" |
| Outlet Pipe Size | 1" |
| Exhaust Pipe Size | 1-1/4" |
| Construction | Poppet |
| Mounting | Inline |
| Cv (1-4) | 10 |
| Cv (2-3) | 7.5 |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 4.13 in (105 mm) |
| Width | 7.94 in (202 mm) |
| Height | 13.5 in (343 mm) |
| Weight | 10.0 lb (4.5 kg) |
| Valve Body Material | Cast Aluminum |
| Lever Position | Horizontal |
-
Manual Toggle Lever Valves ROSS-MV TL EN
-
ROSS 11 12 Series Mechanical and Manual Valves Installation Instructions SS105
