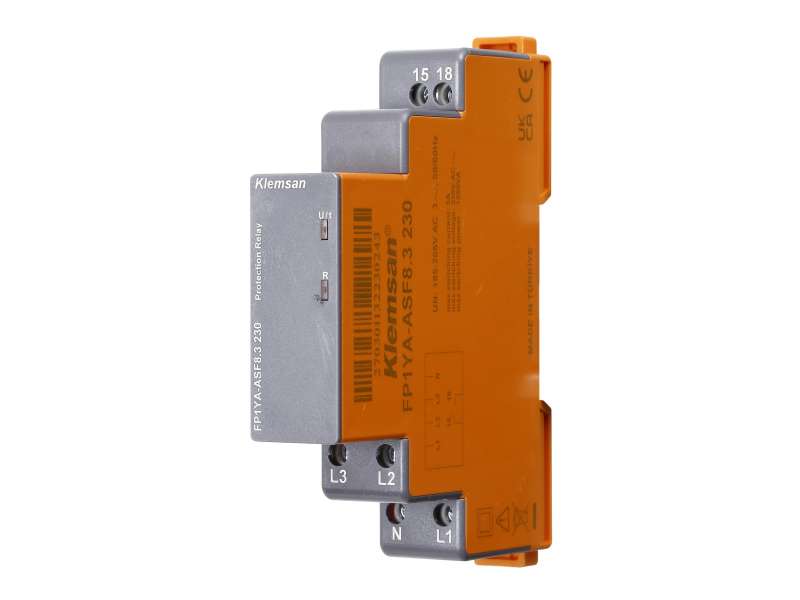

Klemsan Motor Protection Relay FP1Y-ASF8.3 230; 270274
Klemsan Motor Protection Relay FP1Y-ASF8.3 230; 270274 Star connection, Asymmetry (40% - Sensitive) / Sequence / Phase Loss, 230V Un, 1 Form A...
Cena bez pdv-a: 2.856,83 |
Cena sa pdv-om: 3.428,20 |
Klemsan Motor Protection Relay FP1Y-ASF8.3 230; 270274
Star connection, Asymmetry (40% - Sensitive) / Sequence / Phase Loss, 230V Un, 1 Form A
Star connection, Asymmetry (40% - Sensitive) / Sequence / Phase Loss, 230V Un, 1 Form A
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
Nominal Voltage
230 V
EMC-EMI
ok
Networks
3Ø without neutral
POWER SUPPLY
Voltage
85-300V LN ±20% AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 NO (SPST)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Phase Loss Delay Time
500 ms
Phase Sequence Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Asymmetry Protection Range/Limit
± 40%
Asymmetry Protection Hysteresis
3% x Un
Asymmetry Protection Delay Time
500ms
-
FP1Y-ASF8.3 230
-
Fixed Protection Relays 23072024-EN
