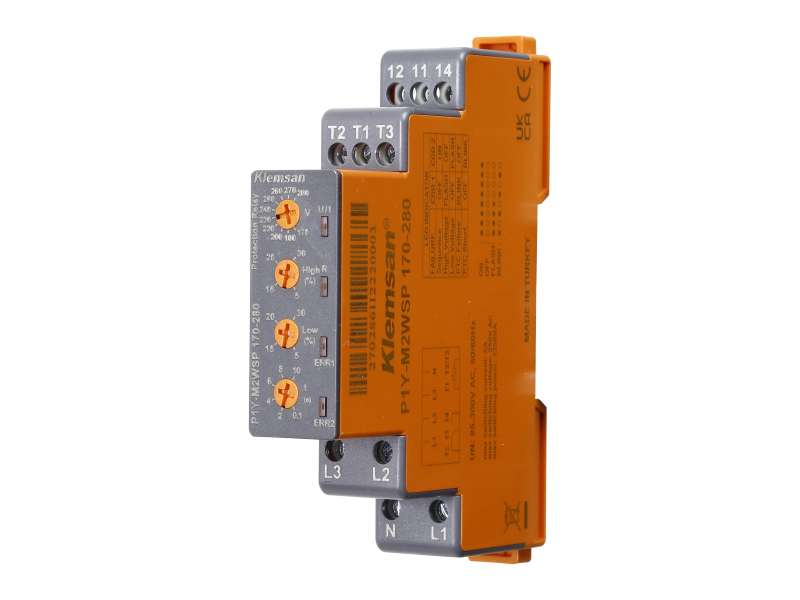

Klemsan Motor Protection Relay P1Y-M2WSP 170-280; 270286
Klemsan Motor Protection Relay P1Y-M2WSP 170-280; 270286 Phase Loss, Phase Sequence, PTC, High/Low Voltage Protection, Neutral loss, 3ph with neutral...
Cena bez pdv-a: 4.114,78 |
Cena sa pdv-om: 4.937,73 |
Klemsan Motor Protection Relay P1Y-M2WSP 170-280; 270286
Phase Loss, Phase Sequence, PTC, High/Low Voltage Protection, Neutral loss, 3ph with neutral
Phase Loss, Phase Sequence, PTC, High/Low Voltage Protection, Neutral loss, 3ph with neutral
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
18
Mounting Type
Rail Mount
Nominal Voltage
170V-280V
EMC-EMI
ok
Networks
3Ø with neutral
POWER SUPPLY
Voltage
85-300V LN ±20% AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Phase Loss Delay Time
500 ms
Phase Sequence Delay Time
500 ms
Neutral Loss Delay Time
500 ms
Voltage Protection Upper Limit
± (5 - 30%)
Voltage Protection Lower Limit
± (5 - 30%)
Voltage Protection Delay Time
0.1sn .. 10sn
PTC Protection Short Circuit Threshold
20 O
PTC Protection High Value Threshold
2.7 kO
PTC Protection Delay Time
500ms
Voltage Protection Hysteresis
3% x Un
-
Adjustable Protection Relays 09122024-TR-EN
