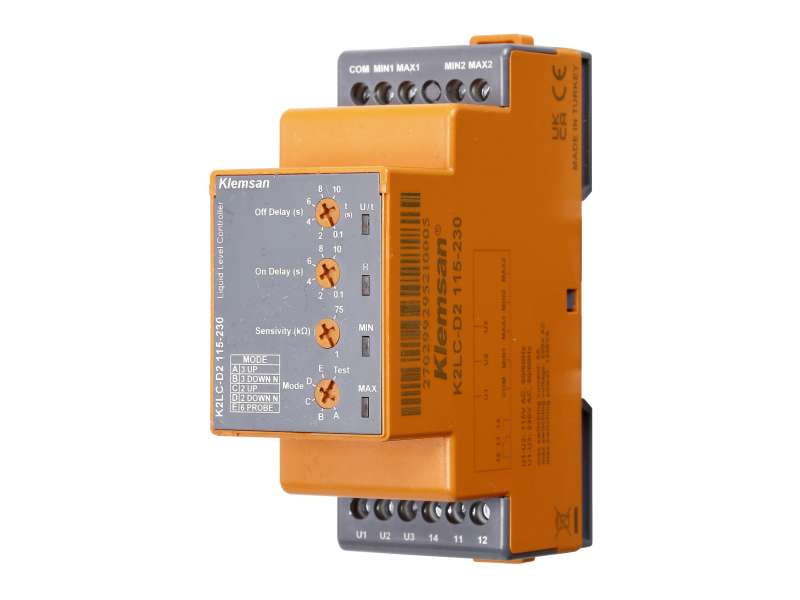

Klemsan Liquid level controller K2LC-D2 115-230VAC, 1kΩ - 75kΩ; 270299
Klemsan Liquid level controller K2LC-D2 115-230VAC, 1kΩ - 75kΩ 270299 6 probe, 1-75kohm, 1 CO...
Cena bez pdv-a: 5.659,58 |
Cena sa pdv-om: 6.791,49 |
Klemsan Liquid level controller K2LC-D2 115-230VAC, 1kΩ - 75kΩ; 270299
6 probe, 1-75kohm, 1 CO
6 probe, 1-75kohm, 1 CO
GENERAL
Connection Type
Screw terminal
Protection Class
IP20
Weight (g)
80
Packaging Quantity
1
Case Width (mm)
36
Mounting Type
Rail Mount
EMC-EMI
ok
POWER SUPPLY
Voltage
115VAC & 230 VAC ±10% AC
Frequency
50-60Hz
Consumption
<13VA AC
ENVIRONMENTAL CONDITIONS
Operating Temperature
-20 to +60°C
Storage Temperature
-40°C +75°C
Relative Humidity (Non-condensing)
Max. 95% (no condensation)
BACKUP CONNECTIONS
Type
1 C/O (SPDT)
Max. Values - AC (NO side)
10A/250V; 1250 VA
Max. Values - DC (NO side)
5A/30VDC; 150W
Mechanical Operating Life
= 10^7 operations
Electrical Operating Life (NO side)
5x10^4 (5A@250VAC) 1x10^5 (5A@30VDC)
MONITORING FUNCTIONS
Number of Props for Liquid Level Monitoring
6
Liquid Level Monitoring Sensitivity
1k ohm - 75k ohm
Liquid Level Monitoring Delay Time
"ton= 0.1 .. 10 sn / toff= 0.1 - 10 sn"
-
Liquid Level Monitoring 09122024-TR-EN
