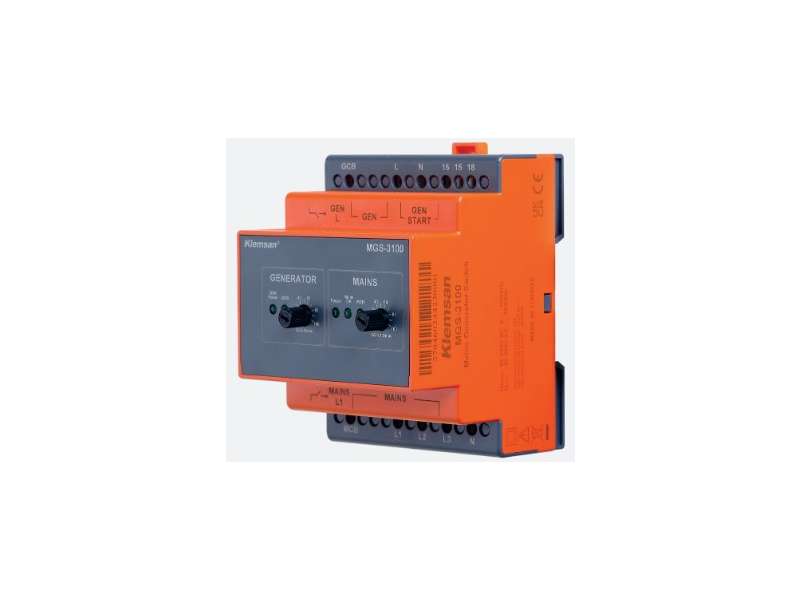

Klemsan Automatic Transfer Switch MGS 3110, Low Voltage + Phase Loss + Phase Sequence; 270461
Klemsan Automatic Transfer Switch MGS 3110, Low Voltage + Phase Loss + Phase Sequence; 270461 Relej za automatsku promenu izvora napajanja - glavno napajanje i ...
Cena bez pdv-a: 8.577,54 |
Cena sa pdv-om: 10.293,05 |
Klemsan Automatic Transfer Switch MGS 3110, Low Voltage + Phase Loss + Phase Sequence; 270461
Relej za automatsku promenu izvora napajanja - glavno napajanje i generator
Relej za automatsku promenu izvora napajanja - glavno napajanje i generator
Technical Specifications
• Supply Voltage (Mains & Generator): 85-300 V AC
• Frequnecy (Mains & Generator): 50/60 Hz
• Delay (Network & Generator): 1-100 sec
• Low Voltage Threshold: 150V AC
• Hysteresis: 9V
• Overvoltage Category: CAT III
• Screw Tightening Torque: 0.5 Nm
• Cable Stripping Size (Min & Max): 8 mm-9 mm
• Cable Cross Section: 2.5 mm1 (Copper conductor only)/ 14 AWG Single core/ Multicore
• Power Consumption: <13 VA
• Maximum Switching (MCB & GCB & Remote Start): 16A / 250V AC / 2000VA
• Operating Temperature: -20 / +60 °C
• Dimensions: 72mm (design in accordance with DIN Norm)
• Weight: 180 g
• IP Protection: IP20
• Supply Voltage (Mains & Generator): 85-300 V AC
• Frequnecy (Mains & Generator): 50/60 Hz
• Delay (Network & Generator): 1-100 sec
• Low Voltage Threshold: 150V AC
• Hysteresis: 9V
• Overvoltage Category: CAT III
• Screw Tightening Torque: 0.5 Nm
• Cable Stripping Size (Min & Max): 8 mm-9 mm
• Cable Cross Section: 2.5 mm1 (Copper conductor only)/ 14 AWG Single core/ Multicore
• Power Consumption: <13 VA
• Maximum Switching (MCB & GCB & Remote Start): 16A / 250V AC / 2000VA
• Operating Temperature: -20 / +60 °C
• Dimensions: 72mm (design in accordance with DIN Norm)
• Weight: 180 g
• IP Protection: IP20
-
MGS EN
-
MGS 28072022 EN
