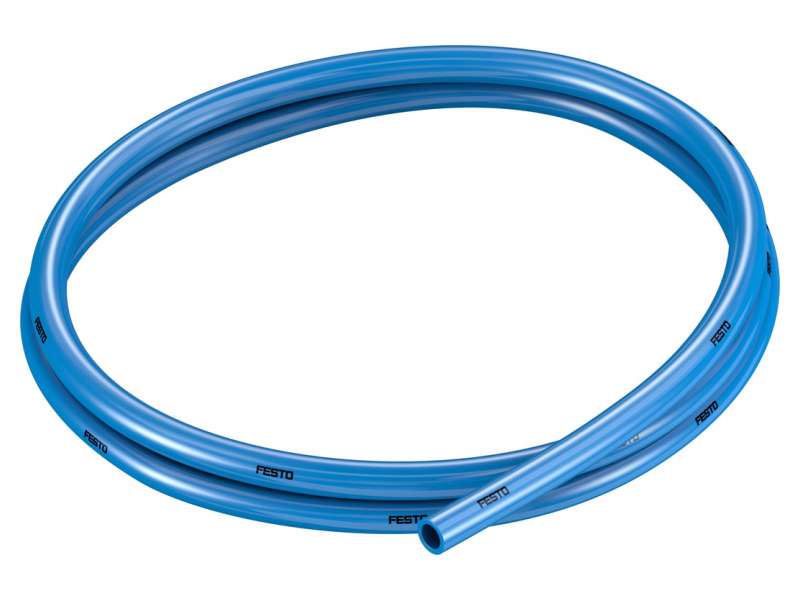

Festo Plastic tubing PUN-8X1,25-BL ; 159666
Plastic tubing PUN-8X1,25-BL PUN-8X1,25-BL Part no. 159666 Polyurethane High resistance to stress cracks Suitable for energy-chains Also available as DUO plastic...
Cena na upit

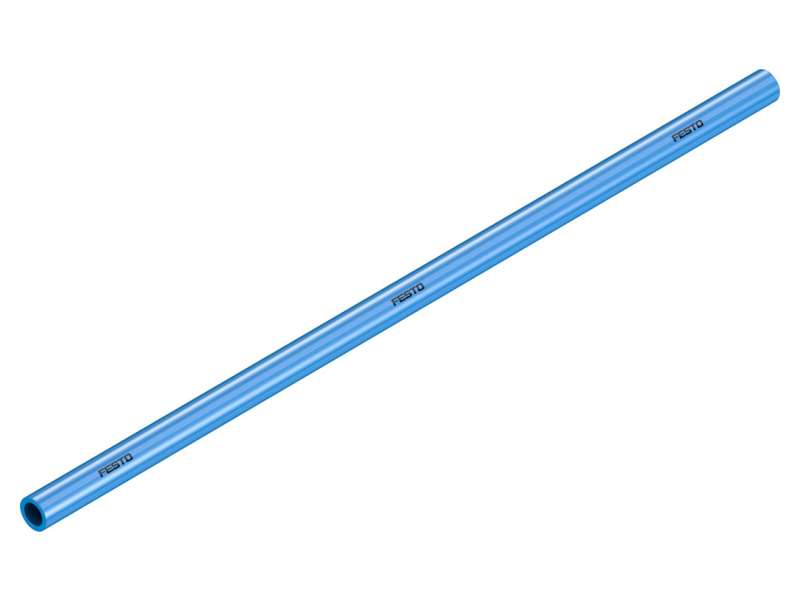

Plastic tubing PUN-8X1,25-BL
PUN-8X1,25-BL Part no. 159666
- Polyurethane
- High resistance to stress cracks
- Suitable for energy-chains
- Also available as DUO plastic tubing
- Operating medium compressed air, vacuum
- Pneumatic tubing test conditions
- Suitability for energy chains: >5 million cycles as per FN 942021
- Tubing characteristics
- Suitable for energy chains in applications with high cycle rates
- Outside diameter
- 8 mm
- Bending radius relevant for flow rate
- 37 mm
- Inside diameter
- 5.7 mm
- Min. bending radius
- 24 mm
- Type code
- PUN
- Temperature-dependent operating pressure
- -0.95 bar ... 10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Material fire test
- UL94 HB
- Ambient temperature
- -35 °C ... 60 °C
- Certification
- German Technical Control Board (TÜV)
- Product weight by length
- 0.0302 kg/m
- Pneumatic connection
-
For barbed fitting, inside diameter 6 mm
For plug connection outside diameter 8 mm
For barbed fitting, inside diameter 6 mm, with union nut - Color
- Blue
- Shore hardness
- D 52 +/-3
- Note on materials
-
Free of copper and PTFE
RoHS-compliant - Material of pneumatic tubing
- TPE-U(PU)
-
159666datasheet
-
OD-TUBING ENUS
