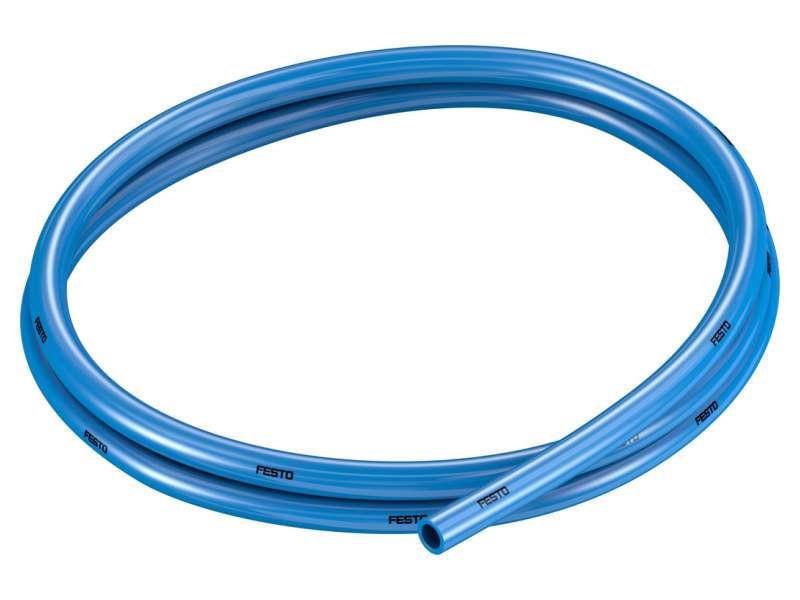

Festo Plastic tubing PUN-6X1-BL ; 159664

Plastic tubing PUN-6X1-BL PUN-6X1-BL Part no. 159664 Polyurethane High resistance to stress cracks Suitable for energy-chains Also available as DUO plastic tubing...

Brand: festo
Šifra: 159664
Dostupnost: Proveriti dostupnost
Cena na upit

Plastic tubing PUN-6X1-BL


   PUN-6X1-BL Part no.  159664
  • Polyurethane
  • High resistance to stress cracks
  • Suitable for energy-chains
  • Also available as DUO plastic tubing
  • Operating medium compressed air, vacuum
Pneumatic tubing test conditions
Suitability for energy chains: >5 million cycles as per FN 942021
Tubing characteristics
Suitable for energy chains in applications with high cycle rates
Outside diameter
6 mm
Bending radius relevant for flow rate
26.5 mm
Inside diameter
4 mm
Min. bending radius
16 mm
Type code
PUN
Temperature-dependent operating pressure
-0.95 bar ... 10 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Material fire test
UL94 HB
Ambient temperature
-35 °C ... 60 °C
Certification
German Technical Control Board (TÜV)
Product weight by length
0.0192 kg/m
Pneumatic connection
For barbed fitting, inside diameter 4 mm, with union nut
For plug connection outside diameter 6 mm
For barbed fitting, inside diameter 4 mm
Color
Blue
Shore hardness
D 52 +/-3
Note on materials
Free of copper and PTFE
RoHS-compliant
Material of pneumatic tubing
TPE-U(PU)
  • 159664datasheet

    159664datasheet

  • OD-TUBING ENUS

    OD-TUBING ENUS
