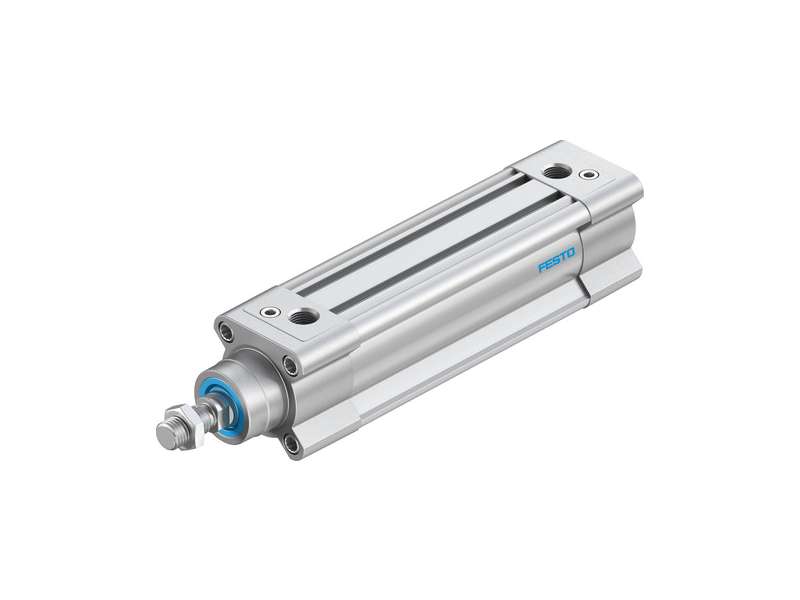

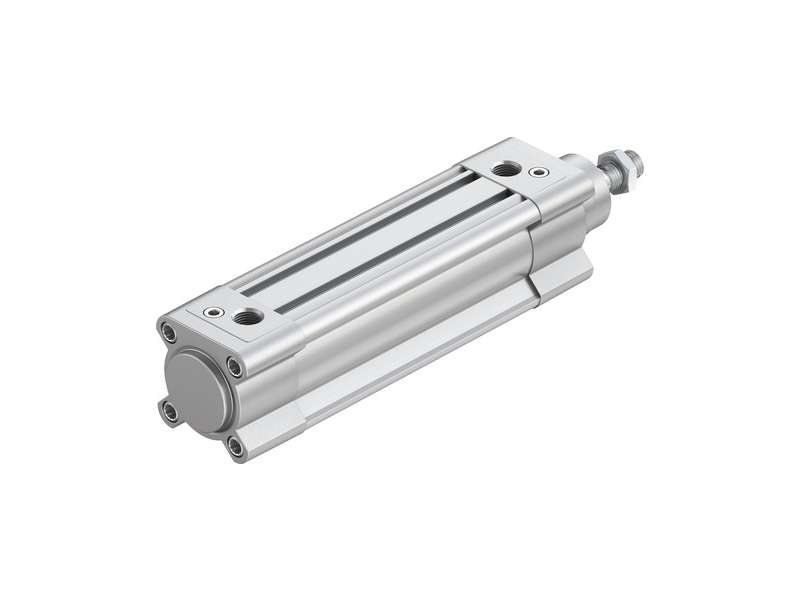

Festo ISO cylinder DSBC-40-100-PPVA-N3 ; 1376660

ISO 15552 (ISO 6431, VDMA 24562) Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed Standard profile with two sensor...

Brand: festo
Šifra: 1376660
Dostupnost: Proveriti dostupnost
Cena na upit
  • ISO 15552 (ISO 6431, VDMA 24562)
  • Self-adjusting pneumatic end-position cushioning which adapts optimally to changes in load and speed
  • Standard profile with two sensor slots
  • Wide range of variants for customized applications
  • Comprehensive range of mounting accessories for just about every type of installation
  • Magnetic piston for position sensing
Stroke
100 mm
Piston diameter
40 mm
Piston rod thread
M12x1.25
Type code
DSBC
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
Any
Conforms to standard
ISO 15552
Piston rod end
External thread
Design
Profile barrel
Piston rod
Piston
Position sensing
For proximity sensor
Symbol
00991235
Variants
Piston rod at one end
Operating pressure
0.6 bar ... 12 bar
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.7 J
Cushioning length
19 mm
Theoretical force at 6 bar, retracting
633 N
Theoretical force at 6 bar, advancing
754 N
Moving mass at 0 mm stroke
205 g
Additional weight per 10 mm stroke
37 g
Basic weight with 0 mm stroke
740 g
Additional moving mass per 10 mm stroke
16 g
Type of mounting
With internal thread
With accessories
Optionally:
Pneumatic connection
G1/4
Note on materials
RoHS-compliant
Cover material
Die-cast aluminum
Coated
Seals material
TPE-U(PU)
Piston rod material
High-alloy steel
Material of cylinder barrel
Wrought aluminum alloy
Smooth anodized
  • 1376660datasheet

    1376660datasheet

  • D15000100122133

    D15000100122133
