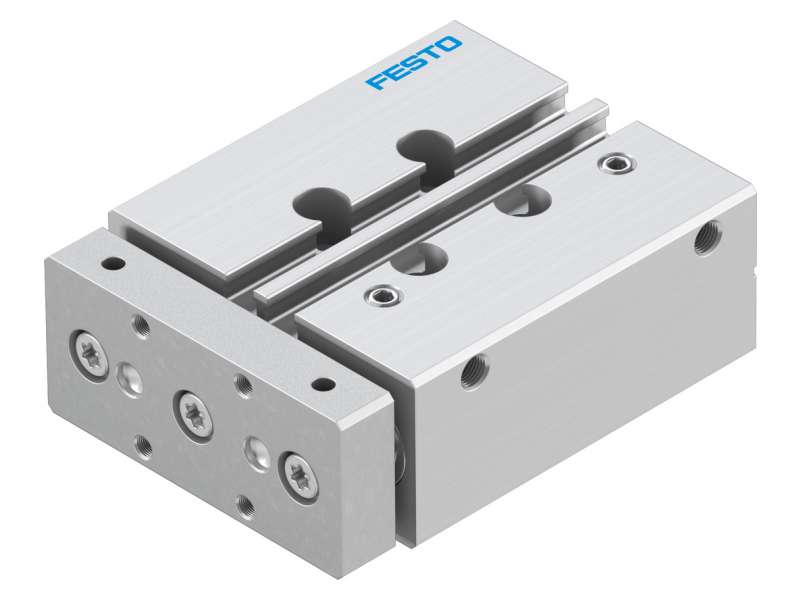

Festo Guided actuator DFM-12-30-P-A-GF ; 170827

Place your trust in precise guidance and great absorption of torques and shear forces - coupled with a sturdy, compact design. The guided actuator DFM is suitable...

Brand: festo
Šifra: 170827
Dostupnost: Proveriti dostupnost
Cena na upit
Place your trust in precise guidance and great absorption of torques and shear forces - coupled with a sturdy, compact design. The guided actuator DFM is suitable for clamping, lifting and stopping tasks.

  • Actuator and guide unit in a single housing
  • High resistance to torques and lateral forces
  • Plain or ball bearing guide
  • Wide variety of mounting and attachment options
  • Wide range of variants for customized applications
Distance of centre of gravity of payload to yoke plate xs
25 mm
Max. permissible torque load Mx as a function of the stroke
0.45 Nm
Stroke
30 mm
Piston diameter
12 mm
Type code
DFM
Drive unit operating mode
Yoke
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Guide
Sliding guide
Design
Guide
Position sensing
For proximity sensor
Symbol
00991737
Operating pressure
2 bar ... 10 bar
Max. speed
0.8 m/s
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
1 - Low corrosion stress
Ambient temperature
-20 °C ... 80 °C
Impact energy in the end positions
0.07 J
Max. payload as a function of the stroke at defined distance xs
21 N
Theoretical force at 6 bar, retracting
51 N
Theoretical force at 6 bar, advancing
68 N
Moving mass
200 g
Product weight
435 g
Alternative connections
See product drawing
Pneumatic connection
M5
Note on materials
RoHS-compliant
Cover material
Wrought aluminum alloy
Seals material
NBR
Housing material
Wrought aluminum alloy
Piston rod material
High-alloy stainless steel
  • DFM ENUS

    DFM ENUS
