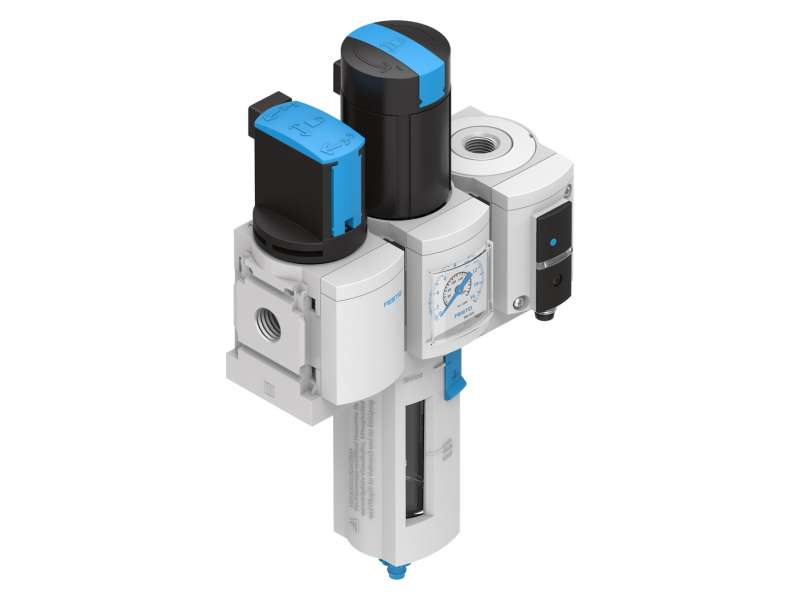

Festo Air preparation combination unit MSB4-1/4:C3:J1:F12-WP ; 8025356

Perfect compressed air treatment! With its large product range, highly functional components and a wide choice of services, the MS series from Festo offers a complete...

Brand: festo
Šifra: 8025356
Dostupnost: Proveriti dostupnost
Cena na upit
Perfect compressed air treatment! With its large product range, highly functional components and a wide choice of services, the MS series from Festo offers a complete concept for compressed air treatment – for both standard applications and application-specific solutions.

  • Combination of filter regulating valve, compressed air filter, air line lubricator, shut-off valve, soft-start valve
  • Size: 4
Size
4
For use in the food industry
See supplementary material information
Type code
MSB4
Series
MS
Actuator lock
Rotary knob with detent
can be closed with accessories
Mounting position
Vertical +/- 5°
Grade of filtration
40 µm
Condensate drain
Manually rotating
Design
Shut off valve
Filter regulator with pressure gauge
Branching module
Controller function
With secondary exhausting
With return flow function
With primary pressure compensation
Outlet pressure constant
Bowl guard
Plastic bowl guard
Symbol
00991758
Pressure gauge
with pressure gauge
Operating pressure
0.8 bar ... 14 bar
Pressure regulation range
0.5 bar ... 10 bar
Standard nominal flow rate
1600 l/min
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Inert gas
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Storage temperature
-10 °C ... 60 °C
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium
0 °C ... 50 °C
Ambient temperature
0 °C ... 50 °C
Product weight
1500 g
Type of mounting
With accessories
Pneumatic connection 1
G1/4
Pneumatic connection 2
Pneumatic connection 3
G1/4
Housing material
Die-cast aluminum
Material of bowl
PC
  • MS-COMBINATION ENUS

    MS-COMBINATION ENUS
