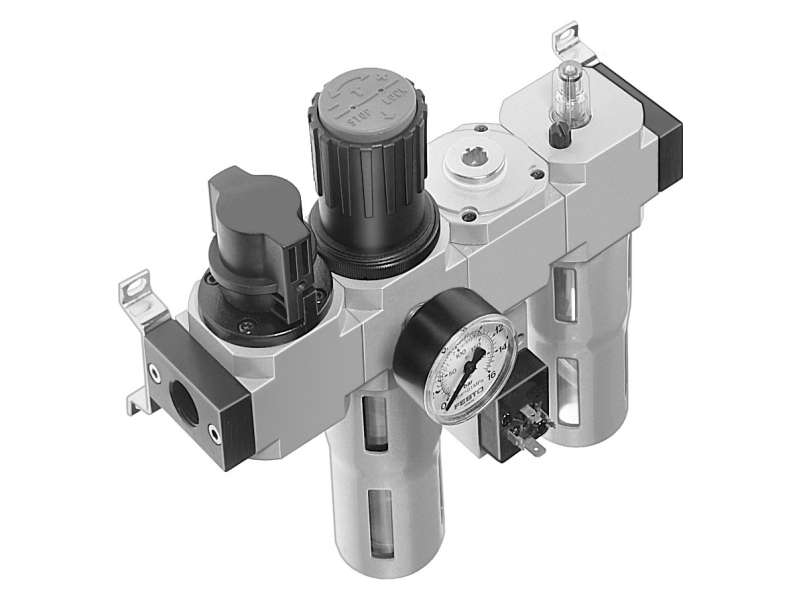

Festo Air preparation unit FRC-1/2-D-MIDI-KC-A ; 185824
Combination of filter regulating valve, branching module, air line lubricator, shut-off valve, soft-start valve, mounting accessories Size: mini, midi, maxi...
Cena na upit
- Combination of filter regulating valve, branching module, air line lubricator, shut-off valve, soft-start valve, mounting accessories
- Size: mini, midi, maxi
- Size
- Midi
- Maritime classification
- See certificate
- Type code
- FRC
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/- 5°
- Grade of filtration
- 40 µm
- Condensate drain
- Fully automatic
- Design
-
Shut off valve
Pressure switch
Branching module
Filter regulator with pressure gauge
Proportional standard oil mist lubricator - Max. condensate volume
- 43 ml
- Bowl guard
- Metal bowl guard

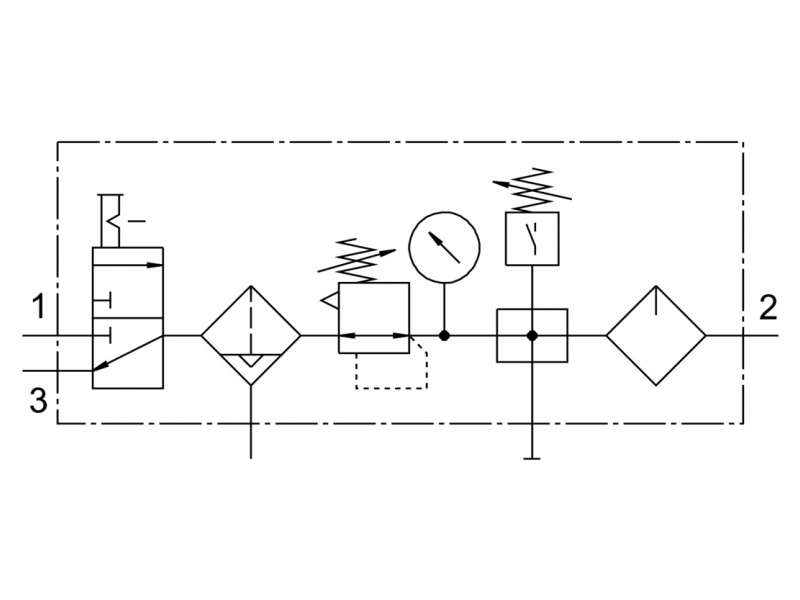

- Symbol
- 00991548
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1.5 bar ... 12 bar
- Pressure regulation range
- 0.5 bar ... 12 bar
- Max. pressure hysteresis
- 0.3 bar
- Standard nominal flow rate
- 2400 l/min
- Operating medium
-
Inert gas
Compressed air as per ISO 8573-1:2010 [-:-:-] - Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Air quality class at the output
-
Inert gas
Compressed air as per ISO 8573-1:2010 [7:4:-] - Temperature of medium
- -10 °C ... 60 °C
- Ambient temperature
- -10 °C ... 60 °C
- Product weight
- 3000 g
- Type of mounting
-
Line installation
With accessories
Optionally: - Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Note on materials
- Contains paint-wetting impairment substances
- Housing material
- Die-cast zinc
- Material of bowl
- PC
-
FRC-D-COMBINATION ENUS
