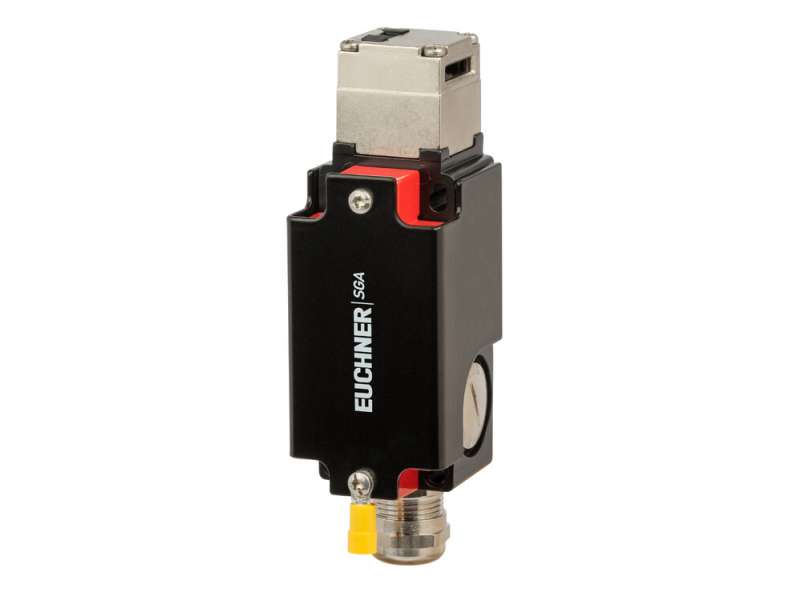

EUCHNER SGA1A-2131A-M-EX ; 123460
Safety switch SGA, ATEX ATEX version Suitable for usage in zone 2 and 22 (gases and dusts) Cable entry M20 x 1.5 Switching disc made of metal...
Cena na upit
Safety switch SGA, ATEX
- ATEX version
- Suitable for usage in zone 2 and 22 (gases and dusts)
- Cable entry M20 x 1.5
- Switching disc made of metal
Approvals
Mechanical values and environment
| Housing material | Die-cast alloy, cathodically dipped |
| Weight | |
| Net | 0,5 kg |
| Ambient temperature | -10 ... 75 °C |
| Degree of protection | IP67 |
| Mechanical life | 2 x 106 |
| Contact material | Silver alloy, gold flashed |
| Switching principle | Slow-action switching contact |
| Installation orientation | Any |

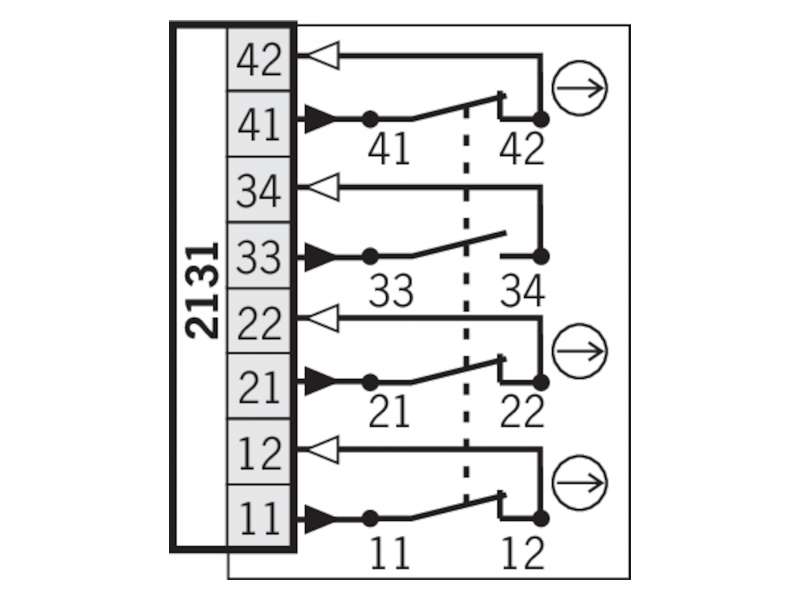

| Number of door position positively driven contacts | 3 |
| Number of door position NO contacts | 1 |
| Connection | |
| 3 x | M20 x 1.5 |
| Approach speed | max.20 m/min |
| Actuation frequency | max.6700 1/h |
| Retention force | 10 N |
| Extraction force | 25 N |
| Actuating force | 25 N |
| Insertion depth | 24,5 mm |
Electrical connection ratings
| Thermal rated current Ith | 4 A |
| Utilization category according to EN 60947-5-1 | |
| AC-15 | 4A 50V |
| DC-13 | 4A 24V |
| Short circuit protection according to IEC 60269-1 | |
| (Fuse) | 4A gG |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 2,5 kV |
| Switching voltage | |
| Min. at 10mA | 12 V |
| Switching current | |
| Min. at 24V | 1 mA |
| Connection cross-section | 0,34 ... 1,5 mm² |
Other
| Explosion protection | |
| incl. cable gland | II3G Ex nR IIB T5 Gc X / II3D Ex tc IIIC T90° Dc X |
Reliability values according to EN ISO 13849-1
| Monitoring of the safety guard position | |
| B10D | 3 x 106 |
In combination with Actuator BETAETIGER-S-G-SN-C2115
Mechanical values and environment
| Overtravel | 5 mm |
-
Safety Switches Ex - Catalogue
-
Safety Switches Ex - Manual
