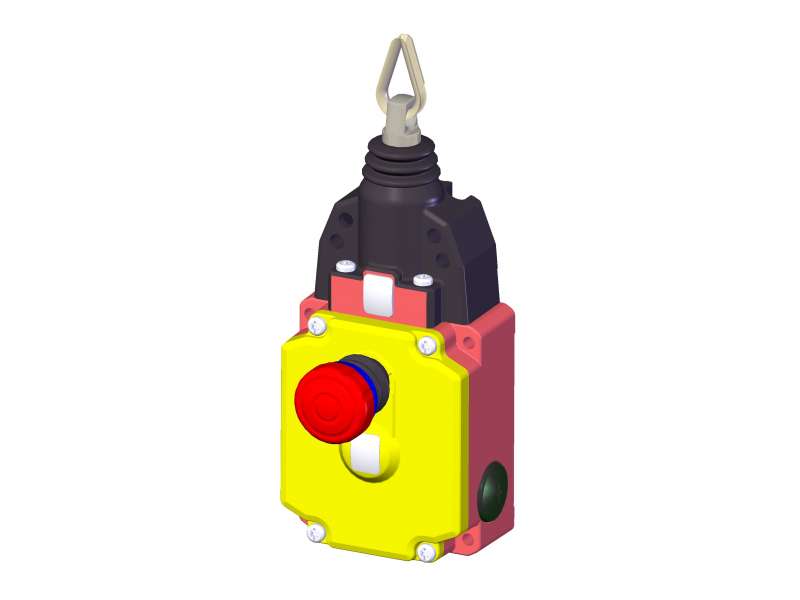

EUCHNER Rope pull switch with pull-to-reset button for emergency stop device, thimble RPS-M-2131SR300M; 171993
Rope pull switch with pull-to-reset button for emergency stop device, thimble RPS-M-2131SR300M, Actuating force 300N; 171993 Metal housing Emergency stop device...
Cena na upit
Rope pull switch with pull-to-reset button for emergency stop device, thimble RPS-M-2131SR300M, Actuating force 300N; 171993
- Metal housing
- Emergency stop device with detent mechanism as per EN ISO 13850 and EN 60947-5-5
- Thimble for pull wire
- Indication of correct rope tension
- 3 cable entries M20 x 1.5
- Switching elements with 4 switching contacts
Switching element
|
2131 |
Slow-action switching contact 3 NC |
+ 1 NOApprovals
Electrical connection values
| Fuse | max. 6 A gG |
| Connection cross section | 0.5 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 3A 240V / 6A 120V |
| DC-13 | 0.27A 250V / 0.55A 125V |
| Switching current | |
| at 24V | min. 10 mA |
| thermal rated current Ith | 10 A |
Mechanical values and environment
| Connection type | |
| 3 x | M20 x 1.5 |
| Number of NO contacts | 1 |
| Number of positively driven contacts | 3 |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 300 N |
| Installation orientation | any |
| Storage temperature | -30 ... 80 °C |
| Mechanical life | 0.1 x 10⁶ |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Rope diameter | 2 ... 5 mm |
| Ambient temperature | -30 ... 80 °C |
| Material | |
| Housing | Die-cast aluminum |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Emergency stop | 0.2x106 | 20 y |
Miscellaneous
| Additional feature | Emergency stop function |
-
EUCHNER 171993
