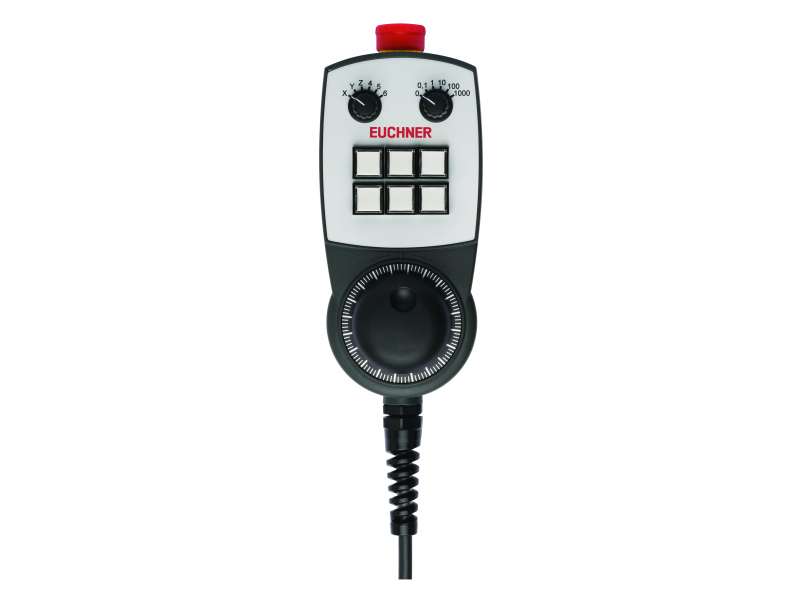

EUCHNER Hand-held pendant station HBM, EMERGENCY STOP device, pushbutton, selector switch, handwheel, HBM-111711
Hand-held pendant station HBM, EMERGENCY STOP device, pushbutton, selector switch, handwheel, HBM-111711...
Cena na upit
Hand-held pendant station HBM, EMERGENCY STOP device, pushbutton, selector switch, handwheel, HBM-111711
Hand-held pendant station HBM, EMERGENCY STOP device, pushbutton, selector switch, handwheel
- Handwheel, 100 pulses, wear-free magnetic detent mechanism
- 6 illuminated pushbuttons, can be individually labeled
- Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
- 2 selector switches, 6 positions each (X, Y, Z, 4, 5, 6 and 0, 0.1, 1, 10, 100, 1000)
- Enabling switch, 3-stage
- Coiled cable, expandable to 3.5 m, 35-core, flying lead
Approvals

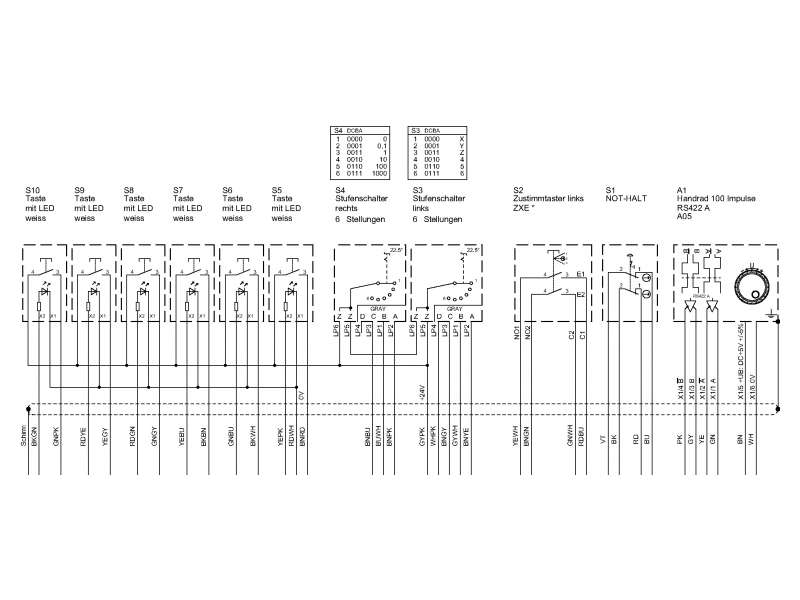

Operating and display elements
| Item | Color | Extras | Version | Slide-in label | Note slide-in label | Switching element | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| see data sheets | red-yellow | - | Emergency stop | 2 pos. driven contacts | 1 | ||||
| see data sheets | black knob with marking | - | Selector switch | 6-stage, Gray coded, detent angle 22.5° | 1 | ||||
| see data sheets | - | with white LED, can be labeled | Pushbutton | 1 NO contact each | 6 | ||||
| see data sheets | black plastic adjusting wheel | - | Handwheel | - | 1 | ||||
| see data sheets | - | - | Enabling switch, 3-stage | 2 NO contacts | 1 | ||||
| see data sheets | black knob with marking | - | Selector switch | 6-stage, Gray coded, detent angle 22.5° | 1 |
Electrical connection values
| Connecting cable | 35x0.14 mm² |
| EMC protection requirements | |
| according to CE | EN 61000-6-2, EN 61000-6-4 |
| Display/control element | |
| Output type | |
| Handwheel | RS422 |
| Operating voltage DC | |
| Handwheel | 5 V DC -5% ... +5% |
| Utilization category | |
| DC-13 Emergency stop | 30 V DC / 1 A |
| Pulses per revolution | |
| Handwheel | 2x100 |
| Switching capacity (VA) | |
| Selector switch | max. 0.2 VA |
| Enabling switch | max. 1 VA |
| Switching voltage | |
| Selector switch | max. 15 V |
| Pushbutton | max. AC/DC 250 V |
| Enabling switch | max. AC/DC 42 V |
| Switching current | |
| Selector switch | max. 20 mA |
| Enabling switch | max. 100 mA |
| Pushbutton | max. 5000 mA |
| LED power supply | |
| mounted in pushbutton | max. 24 V DC |
Mechanical values and environment
| Connection type | flying lead |
| Cable length | |
| coiled | 3.5 m |
| Atmospheric humidity | |
| Condensation not permissible | max. 80 % rH |
| Shock and vibration resistance | according to EN 60068-2-27/-2-6 |
| Degree of protection | |
| according to NEMA | 250-12 |
| IP65 | |
| Ambient temperature | 0 ... +50 °C |
| Material | Pocan |
| Display/control element | |
| Detent positions per revolution | |
| Handwheel | 100 |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Emergency stop | |
| B10D | 0.1 x 10⁶ |
Miscellaneous
| Color | |
| Housing | anthracite |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
-
DATA Multilang 01 691395
