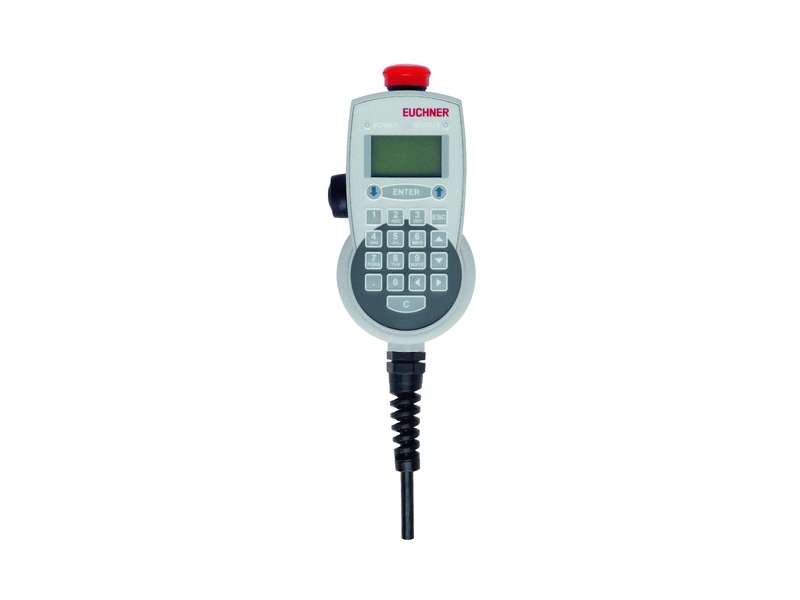

EUCHNER Hand-held pendant station HBAS-094594 (Order no. 094594)
Hand-held pendant station HBAS-094594 (Order no. 094594)...
Cena na upit
Hand-held pendant station HBAS-094594 (Order no. 094594)
Hand-held pendant station HBAS, EMERGENCY STOP device, enabling switch, pushbuttons, membrane keypad, programmable pulse generator, LC display
- Programmable pulse generator
- Tamper-proof EMERGENCY STOP device according to EN ISO 13850, dual-channel
- Membrane keypad with 20 keys and 2 LEDs
- LC display with LED background lighting, switchable 4-line/8-column or 8-line/16-column
- RS422 interface, 3964R protocol
- 1 enabling switch, 3-stage, 2 NO contacts
- Coiled cable can be expanded to 3.5 m
Approvals
Operating and display elements
| Item | Color | Extras | Version | Switching element | Slide-in label | Note slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| - | - | - | Pulse generator | - | 1 | ||||
| - | - | - | Display | - | 1 | ||||
| see data sheets | - | - | Membrane keys | - | 20 | ||||
| see data sheets | - | - | LED | - | 2 | ||||
| see data sheets | - | - | Enabling switch, 3-stage | 2 NO contact each | 1 | ||||
| see data sheets | red-black with yellow plate | - | Emergency stop | 2 pos. driven contacts | 1 |
Electrical connection values
| Connecting cable | 23x0.14 mm² |
| Output type | |
| Pulse generator | RS422 |
| Operating voltage DC | 24 V DC -20% ... +20% |
| Utilization category | |
| DC-13 Emergency stop | 30 V / 3 A |
| Switching capacity (VA) | |
| Enabling switch | max. 0.25 VA |
| Switching voltage | |
| Enabling switch | max. AC/DC 42 V |
| Switching current | |
| Enabling switch | max. 100 mA |
| Current consumption | max. 100 mA |
Mechanical values and environment
| Connection type | Plug connector |
| Cable length | |
| coiled | 3.5 m |
| Atmospheric humidity | |
| Condensation not permissible | max. 80 % rH |
| Shock and vibration resistance | according to EN 60068-2-27/-2-6 |
| Degree of protection | |
| according to NEMA | 250-12 |
| IP65 | |
| Ambient temperature | 0 ... +50 °C |
| Material | Polycarbonate |
Miscellaneous
| Color | |
| Housing | Gray RAL 7040 |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature | |
| Pulse generator | |
| Firmware update | |
| Acoustic sensor |
Interface
| Data protocol | 3964R, 8 data bits, even parity |
| Data rate | 9.6 ... 19.2 kbit/s |
| Date interface | RS422 |
-
DATA Multilang 03 2308347
