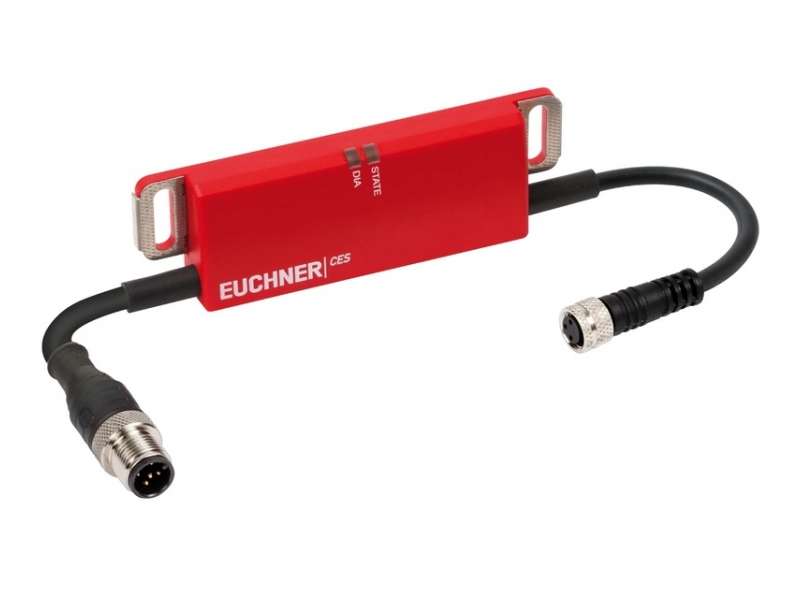

EUCHNER Field evaluation unit CES-FD-AP-M-01-USI-115534 (Order no. 115534)
Field evaluation unit CES-FD-AP-M-01-USI-115534 (Order no. 115534)...
Cena na upit
Field evaluation unit CES-FD-AP-M-01-USI-115534 (Order no. 115534)
Field evaluation unit CES-FD-AP-…
- Connection of a CES/CKS read head
- Evaluation of signals in the field
- Connection to the ET200s and ET200pro
- Familiar EUCHNER AP interface
- Multicode
Approvals
Workspace
| Repeat accuracy R | |
| according to EN 60947-5-2 | <= 10 |
Electrical connection values
| Fuse | |
| external (operating voltage) | 0.25 ... 8 A |
| Rated insulation voltage Ui | 75 V |
| Rated impulse voltage Uimp | 1.5 kV |
| Operating voltage DC | |
| UB (PELV, see operating instructions) (reverse polarity protected, regulated, residual ripple<5%) | 24 V DC -15% ... +15% |
| Turn-on time | |
| Safety outputs | max. 400 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3 | max. 260 ms |
| Safety class | III |
| Current consumption | max. 45 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Safety outputs FO1A / FO1B | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| HIGH U(FO1A) / U(FO1B) | UB-1.5V ... UB V DC |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| rated conditional short-circuit current | 100 A |
| Discrepancy time | max. 10 ms |
| Utilization category | |
| DC-13 | 24 V 150 mA |
| Off-state current Ir | max. 0.25 mA |
| Switching current | |
| per safety output | 1 ... 150 mA |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | min. 100 ms |
Mechanical values and environment
| Connection type | Connecting cable PUR with plug connector M12, 5-pin; pin 5 not used |
| Tightening torque | max. 1 Nm |
| Ready delay | 1 s |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65/IP67 |
| Cable ambient temperature (dynamic) | -5 ... +65 °C |
| Cable ambient temperature (static) | -20 ... +65 °C |
| Material | |
| Housing | Plastic, PBT |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PL | Maximum SIL | PFHD | Category | Mission time | |
|---|---|---|---|---|---|
| Monitoring of the guard position | PL e | - | 4.5x10-9 | 4 | 20 y |
Miscellaneous
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
In combination with read head CES-A-LMN-SC and actuator CES-A-BMB
| Switch-on distance | 5 mm |
| Secured switch-off distance sar | max. 10 mm |
| Secured switching distance sao | min. 3.4 mm |
| Switching hysteresis | 0.05 ... 0.2 mm |
-
