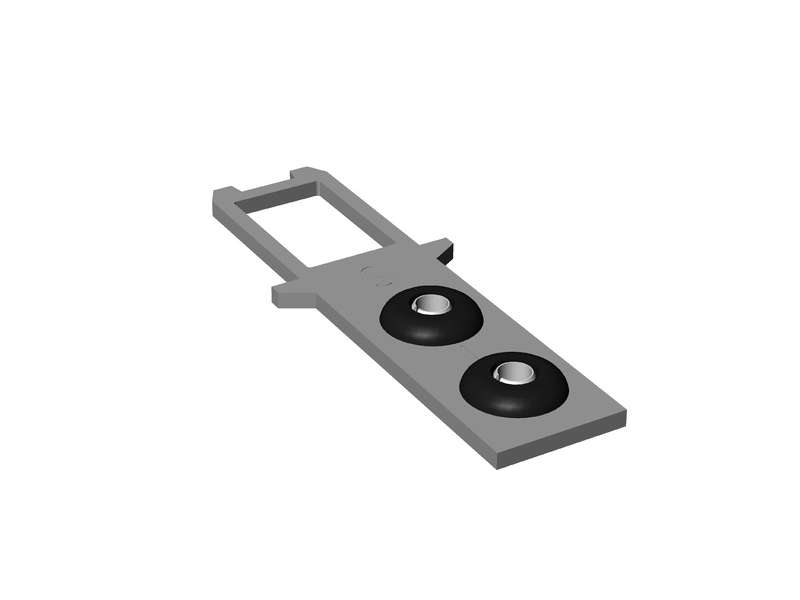

EUCHNER Actuator S for safety switch SGA/SGP/STA/STP/STM. BETAETIGER-S-GT-SN; 095738
Actuator S for safety switch SGA/SGP/STA/STP/STM. BETAETIGER-S-GT-SN; 095738 Two safety screws included Actuator with rubber bush...
Cena bez pdv-a: 1.146,26 |
Cena sa pdv-om: 1.375,51 |
Actuator S for safety switch SGA/SGP/STA/STP/STM. BETAETIGER-S-GT-SN; 095738
- Two safety screws included
- Actuator with rubber bush
Notice
S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.
Straight actuator
Suitable for a maximum tensile force of 3000 N. The straight actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.
Screws made of stainless steel
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Approvals
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
| Overtravel | max. 5 mm |
| Door radius | min. 300 mm |
| Material | |
| Actuator | Stainless steel |
| Rubber bush | NBR |
| Screw | Stainless steel |
Miscellaneous
| Usability of insertion funnel | No |
-
EUCHNER 095738
