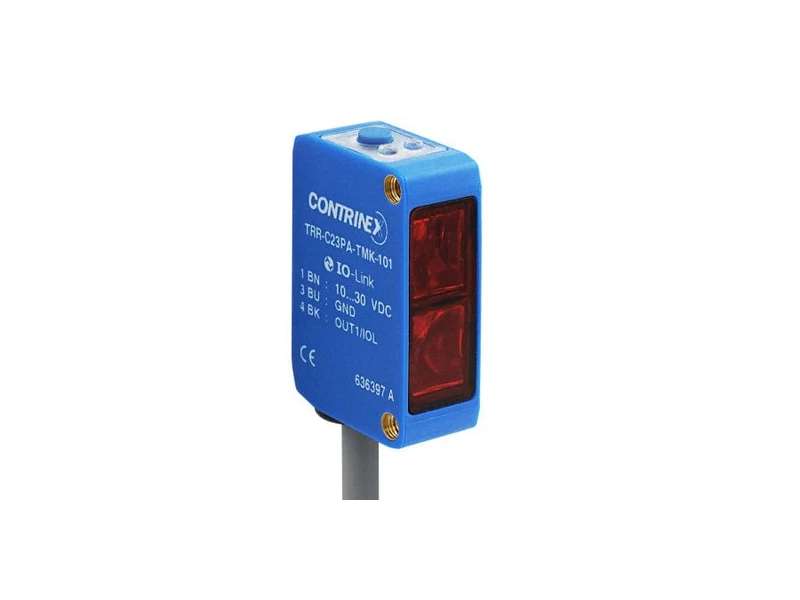

CONTRINEX Transparent object Transparent reflex 20 x 30 (C23) 20...4200 mm ABS Teach button LED, red 630 nm, TRR-C23PA-TMK-101
Transparent object Transparent reflex 20 x 30 (C23) 20...4200 mm ABS Teach button LED, red 630 nm, TRR-C23PA-TMK-101; 620-400-370 PVC, 2 m, 4 wire, Light-on + Dark-on,...
Cena bez pdv-a: 18.204,42 |
Cena sa pdv-om: 21.845,31 |
Transparent object Transparent reflex 20 x 30 (C23) 20...4200 mm ABS Teach button LED, red 630 nm, TRR-C23PA-TMK-101; 620-400-370
PVC, 2 m, 4 wire, Light-on + Dark-on, NPN
PVC, 2 m, 4 wire, Light-on + Dark-on, NPN
| Operating range | 20...4200 mm |
| Switching frequency max. | 1500 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Sensitivity adjustment | Teach button |
| Connection | PVC, 2 m, 4 wire |
| Housing size [mm] | 20 x 30 (C23) |
| Enclosure rating | IP 67 |
| Housing material | ABS |
| Sensitivity Range Adjustm | 30...5000 mm |
| Temperature range | -25...+65°C |
| Light source | LED, red 630 nm |
| Interface | Standard output |
| Operating principle | Transparent reflex |
| Sensing range max. | 10...5000 mm |
-
TRR-C23PA-TM
