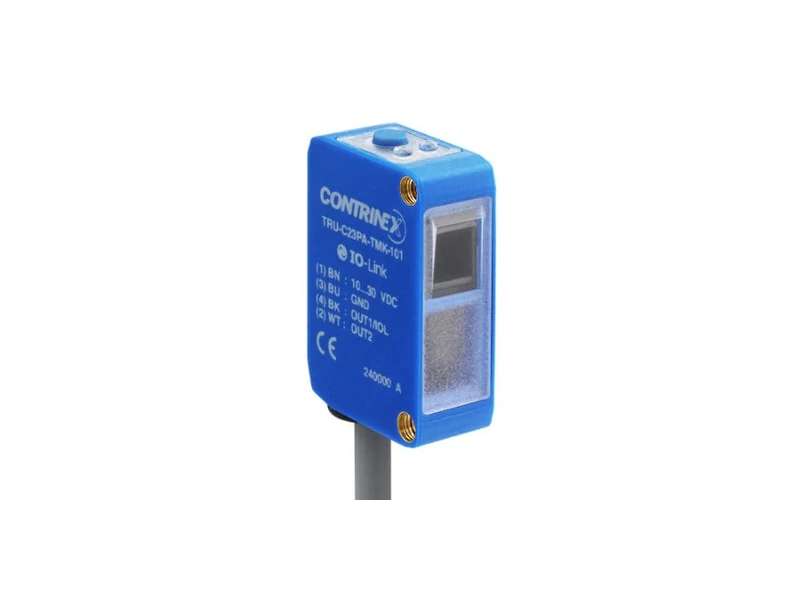

CONTRINEX Transparent object Transparent reflex 20 x 30 (C23) 0...1000 mm ABS Teach button LED, UV 275 nm, Risk Group 2, TRU-C23PA-TMK-101
Transparent object Transparent reflex 20 x 30 (C23) 0...1000 mm ABS Teach button LED, UV 275 nm, Risk Group 2, TRU-C23PA-TMK-101; 620-400-386 PVC, 2 m, 4 wire, Light-on...
Cena bez pdv-a: 7.738,81 |
Cena sa pdv-om: 9.286,57 |
Transparent object Transparent reflex 20 x 30 (C23) 0...1000 mm ABS Teach button LED, UV 275 nm, Risk Group 2, TRU-C23PA-TMK-101; 620-400-386
PVC, 2 m, 4 wire, Light-on + Dark-on, NPN
PVC, 2 m, 4 wire, Light-on + Dark-on, NPN
| Operating range | 0...1000 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 15...30 |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Sensitivity adjustment | Teach button |
| Connection | PVC, 2 m, 4 wire |
| Housing size [mm] | 20 x 30 (C23) |
| Enclosure rating | IP 67 |
| Housing material | ABS |
| Sensitivity Range Adjustm | 30...5000 mm |
| Temperature range | -25...+65°C |
| Light source | LED, UV 275 nm, Risk Group 2 |
| Interface | Standard output |
| Operating principle | Transparent reflex |
| Sensing range max. | 0...1200 mm |
-
TRU-C23PA-TM
