CONTRINEX Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/100
Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/630-400-100 // Type 4 light curtains from...
Cena na upit

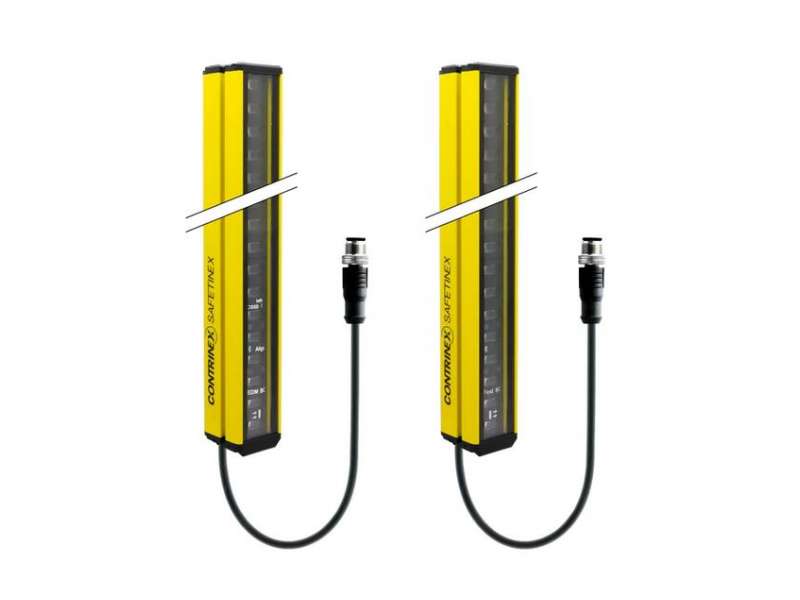

Light curtain extended slim Type 4 Finger 14 mm (finger) Cat. 4, PL e, Type 4, SIL 3, YBES-14K4-XXXX-P012; 630-400-093/630-400-100
//
Type 4 light curtains from the EXTENDED SLIM range are TÜV, CE and UL certified according to IEC 61496-1/2, IEC 61508-1/2/3 and ISO 13849-1. Protective heights range from 170 to 1,610 mm with integrated EDM*, restart interlock and beam coding. Since EDM includes a relay monitoring function, users can also avoid the cost of wired relays. The slim housing (26 × 26 mm) enables blind-zone free installation and connection is via an integral 5-pin or 8-pin M12 pigtail. This range of light curtains is configured and monitored wirelessly via a Bluetooth® signal and free smartphone app – a world first!
//
Type 4 light curtains from the EXTENDED SLIM range are TÜV, CE and UL certified according to IEC 61496-1/2, IEC 61508-1/2/3 and ISO 13849-1. Protective heights range from 170 to 1,610 mm with integrated EDM*, restart interlock and beam coding. Since EDM includes a relay monitoring function, users can also avoid the cost of wired relays. The slim housing (26 × 26 mm) enables blind-zone free installation and connection is via an integral 5-pin or 8-pin M12 pigtail. This range of light curtains is configured and monitored wirelessly via a Bluetooth® signal and free smartphone app – a world first!
Short Specifications
YBES-14K4-XXXX-P012
| Operating range | 0.4...5 m |
| Sender wavelength | IR 850 nm |
| Protective height | 170 mm - 330 mm - 490 mm - 650 mm - 810 mm - 970 mm - 1130 mm - 1290 mm |
| Supply voltage | 24 |
| Polarity | PNP |
| Safety Level | Cat. 4, PL e, Type 4, SIL 3 |
| Connection | PUR, 0.3 m, 5 / 8 wire + M12 5-pin |
| Housing size [mm] | 26 x 26 (slim) |
| Enclosure rating | IP 65 |
| Safety Type | Kit |
| Response time | 9.6 ms - 13.2 ms - 16.8 ms - 20.4 ms - 24 ms - 27.6 ms - 31.2 ms - 34.8 ms |
| Resolution | 14 mm (finger) |
| Temperature range | 0...+55°C |
| Sensor Height | 170 mm - 330 mm - 490 mm - 650 mm - 810 mm - 970 mm - 1130 mm - 1290 mm |
| Product Range | Light curtain extended slim |
| Beam gap | 10 mm |
-
YBES-14x4-xxxx-P012 EN
-
YBES-14x4-xxxx-P012 Manual
