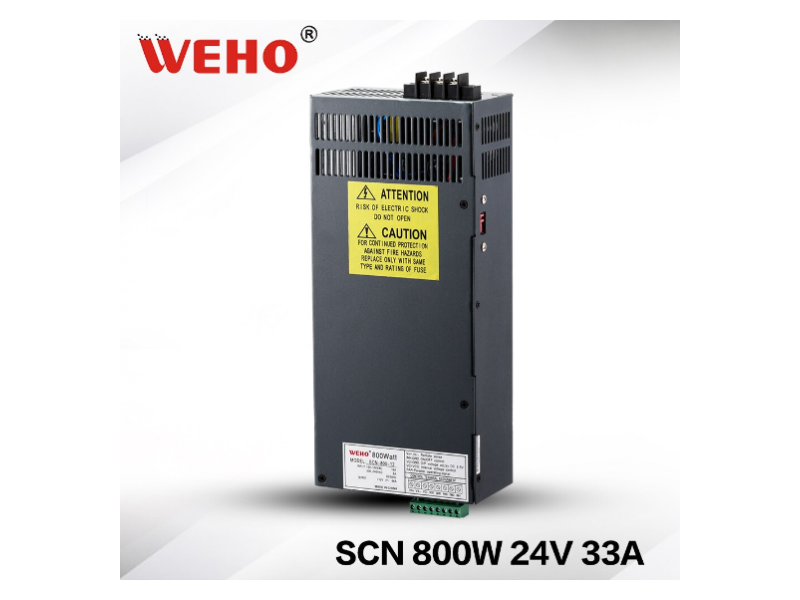

WEHO S-800-24
Izvor napajanja , S-800-24, Izlazne snage 800W, izlazni jednosmerni napon 24V. 86% koeficijent korisnog dejstva Ulazni napon 110/220V naizmeničnog napona 24 meseca...
Trenutno nema na stanju
Izvor napajanja , S-800-24, Izlazne snage 800W, izlazni jednosmerni napon 24V.
86% koeficijent korisnog dejstva
Ulazni napon 110/220V naizmeničnog napona
24 meseca garancije
Odlike :
86% koeficijent korisnog dejstva
Ulazni napon 110/220V naizmeničnog napona
24 meseca garancije
Odlike :
- Mogućnost promene ulaznog naponskog nivoa
- Zaštita od kratkog spoja , preopterećenja , prenapona i pregrevanja
- Testiran na 100% opterećenja
- Visoka pouzdanost
- Cenovno konkurentan
MODEL |
S-800-12 | S-800-15 | S-800-24 | S-800-48 | |
OUTPUT | DC Voltage | 12V | 15V | 24V | 48V |
Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
Rated Current | 66A | 54A | 33A | 16.6A | |
Current Range | 0-66A | 0-54A | 0-33A | 0-16.6A | |
Rated Power | 800W | 800W | 800W | 800W | |
Ripple & Noise | 150mVp-p | 150mVp-p | 240mVp-p | 480mVp-p | |
DC Adjustment Range | ±5%; Can adjust from 40%~100% output voltage by external control 2-5V | ||||
Setup, Rise, Hold Time | 800ms, 50ms, 16ms at full load | ||||
INPUT | Voltage Range | 90~130VAC / 180~260 VAC47~63 Hz;selected by switch260~370VDC | |||
AC Current | 13A/115 VAC 8.0A/ 230 VAC | ||||
Efficiency | 80% | 81% | 85% | 87% | |
Inrush Current | 60A/230V | ||||
Leakage Current | 3.5 mA/240VAC | ||||
PROTECTION | Over Load | 110%~135% | |||
Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover | |||||
Over Temp | TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover | ||||
ENVIRONMENT | Working Temp., Humidity | -10°C~+65°C,20%~90 %RH | |||
Storage Temp., Humidity | -20°C~+85°C,10%~95 %RH | ||||
Vibration | 10~200Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||
SAFETY | Withstand Voltage | I/P-O/P, I/P-FG:1500VAC | |||
Isolation Resistance | I/P-O/P, I/P-FG, >100M Ohms / 500VDC | ||||
EMC Standard | Design refer to FCC Part 15 Class A | ||||
OTHERS | Weight | 2.65Kg; | |||
Packing | 6pcs/16kg/CARTON | ||||
NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. | |||||
3.Tolerance: includes set up tolerance, line regulation and load regulation. | |||||
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
