WEHO S-600-24
Izvor napajanja , S-600-24, Izlazne snage 600W, izlazni jednosmerni napon 24V. 86% koeficijent korisnog dejstva Ulazni napon 110/220V naizmeničnog napona 24 meseca...
Trenutno nema na stanju
86% koeficijent korisnog dejstva
Ulazni napon 110/220V naizmeničnog napona
24 meseca garancije
Odlike :
- Mogućnost promene ulaznog naponskog nivoa
- Zaštita od kratkog spoja , preopterećenja , prenapona i pregrevanja
- Testiran na 100% opterećenja
- Visoka pouzdanost
- Cenovno konkurentan
|
MODEL |
S-600-12 |
S-600-13.5 |
S-600-15 |
S-600-24 |
S-600-27 |
|
|
|
OUTPUT |
DC VOLTAGE |
12V |
13.5V |
15V |
24V |
27V |
|
|
RATED CURRENT |
50A |
44.4A |
40A |
25A |
22A |
|
|
|
CURRENT RANGE |
0 ~ 50A |
0 ~ 44.4A |
0 ~ 40A |
0 ~ 25A |
0 ~ 22A |
|
|
|
RATED POWER |
600W |
600W |
600W |
600W |
600W |
|
|
|
RIPPLE & NOISE (max.) |
240mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
200mVp-p |
|
|
|
VOLTAGE ADJ.RANGE |
10 ~ 13.2V |
12 ~ 15V |
13.5 ~ 18V |
20 ~ 26.4V |
26 ~ 32V |
|
|
|
VOLTAGE TOLERANCE |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
±1.0% |
|
|
|
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
|
LOAD REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
|
|
SETUP, RISE, HOLD TIME |
200ms, 50ms, 20ms at full load |
||||||
|
INPUT |
VOLTAGE RANGE |
90-132VAC /180-264VAC by switch |
|||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
||||||
|
EFFICIENCY (Typ.) |
84% |
84% |
84% |
86.0% |
87.0% |
88% |
|
|
AC CURRENT |
7A/115V 3.5A/230V |
||||||
|
INRUSH CURRENT (max.) |
18A/115V 36A/230V |
||||||
|
LEAKAGE CURRENT |
<3.5mA / 240VAC |
||||||
|
PROTECTION |
OVERLOAD |
105 ~ 135% of rate load |
|||||
|
Protection type : Fold back current limiting, recovers automatically after fault condition is removed |
|||||||
|
OVER VOLTAGE |
13.8 ~ 16.2V |
15.5 ~ 18.2V |
18 ~ 21V |
27.6 ~ 32.4V |
31 ~ 36.5V |
57.6 ~ 67.2V |
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed. |
|||||||
|

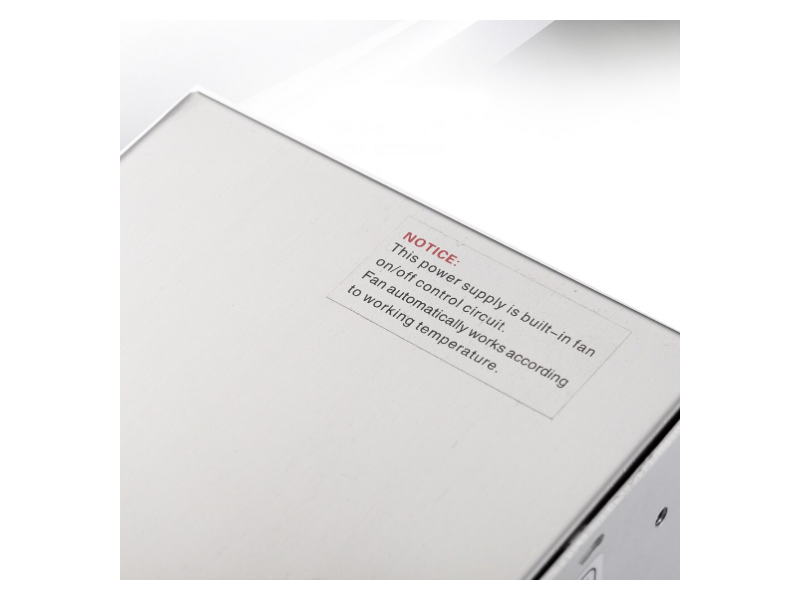

FAN CONTROL,O.T.P. |
RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down |
||||||
|
ENVIRONMENT |
WORKING TEMP. |
-10 ~ +60ºC, 20 ~ 90% RH non-condensing |
|||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
||||||
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85ºC, 10 ~ 95% RH |
||||||
|
TEMP. COEFFICIENT |
±0.03%/ºC (0 ~ 50ºC) |
||||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
|
SAFETY & EMC |
SAFETY STANDARDS |
Design refer to UL1950, TUV EN60950-1 |
|||||
|
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||||
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||||
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
||||||
|
HARMONIC CURRENT |
Compliance to EN61000-3-2,-3 |
||||||
|
EMS IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A |
||||||
|
OTHERS |
MTBF |
138.6K hrs min. MIL-HDBK-217F (25ºC) |
|||||
|
DIMENSION |
238*124*65mm (L*W*H) |
||||||
|
PACKING |
1.5Kgs/pcs, 12pcs/18Kgs |
||||||
