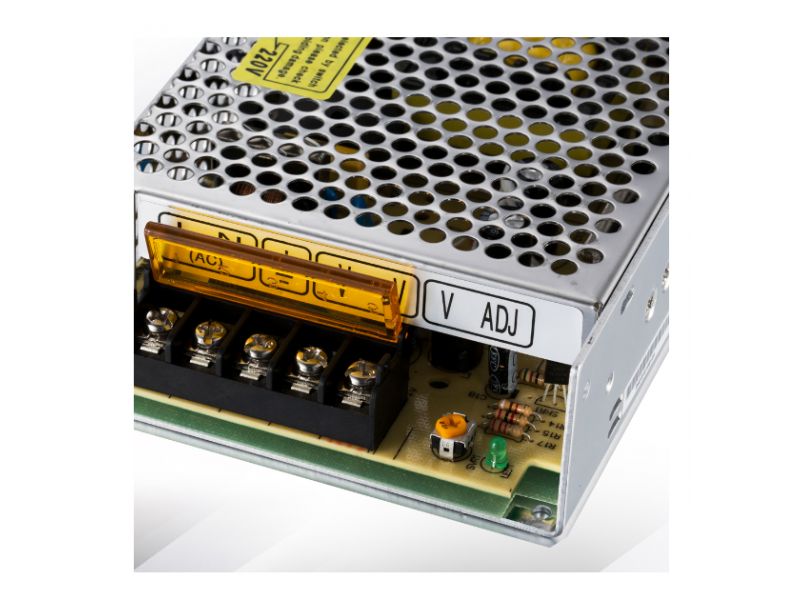

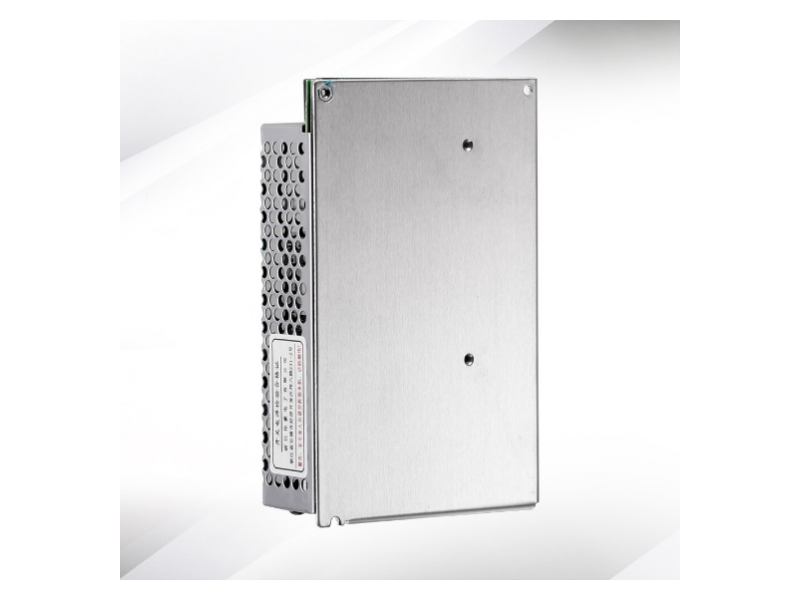

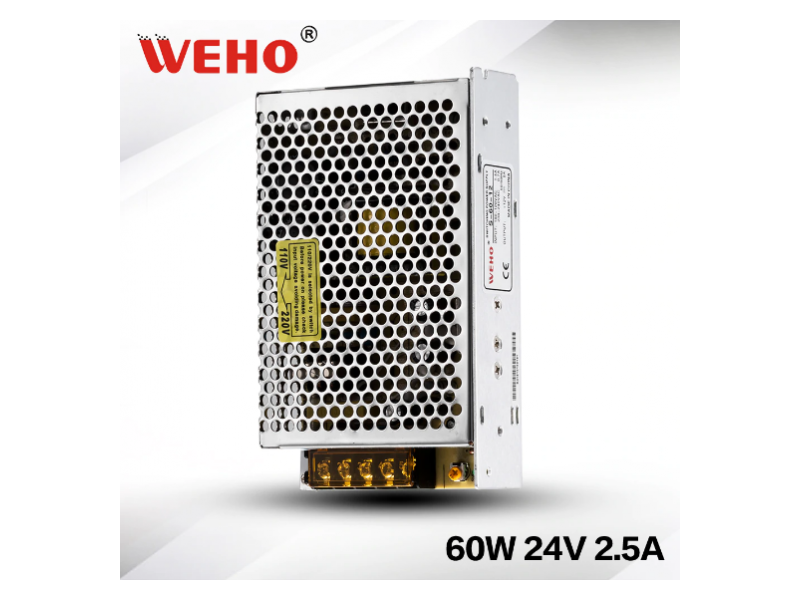

WEHO S-60-24

Napajanje, izlazni napon 24V, izlazna snaga 60W. Odlike: Visok stepen efikasnosti, pouzdanost I niska cena. Mogućnost izbora nivoa ulaznog napona. Testiran na 100%...

Brand: WEHO
Šifra: S-60-24
Dostupnost: Proveriti dostupnost

Trenutno nema na stanju
Napajanje, izlazni napon 24V, izlazna snaga 60W.
Odlike:
Visok stepen efikasnosti, pouzdanost I niska cena.
Mogućnost izbora nivoa ulaznog napona.
Testiran na 100% opterećenja
Zaštita od kratkog spoja I preopterećenja
Vazdušno hlađenje
Radna učestanost 37 KHz
Dve godine garancije
Dimenzije : 159 * 98 * 38 mm (L * W * H)

model

S-60-5

S-60-12

S-60-15

S-60-24

S-60-48

output

Dc output voltage

5V

12V

15V

24V

48V

Output voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated output current

12A

5A

4A

2.5A

1.3A

Output current range

0-12A

0-5A

0-4A

0-2.5A

0-1.3A

Output power

60W

60W

60W

60W

62.4W

Ripple and the noise

120mVp-p

120mVp-p

150mVp-p

150mVp-p

200mVp-p

Dc voltage adjustable scope

+10, -5%

±10%

±10%

±10%

±10%

Start, rise, keep time

800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

input

Input voltage range

90 ~132 VAC / 180-264VAC by switch 47~63 Hz;120~370VDC

Exchange input current

2A/115 V 1A/ 230 V

efficiency

73%

76%

77%

79%

79%

Impulse current

Cold start current 30A/115VAC 60A/230VAC

Leakage current

<3.5 mA/240VAC

Protection characteristics

Overload protection

115%~165%

Protection way: current limiting, automatic recovery

Over-voltage protection

115%~135%

Protection way: hiccups, auto recovery mode

environment

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

security

Compression sex

3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC

Insulation resistance

Between the input and output, the input and output, and ground:
100M Ohms/500VDC

standard

Safety standards

Accord with
UL1012, UL1950,TUV EN60950

EMC standards

Accord with
EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024

other

weight

0.5Kg

packaging

30pcs/15.8Kg/0.99CUFT

note

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
5. Specific output current see output drop forehead curve
