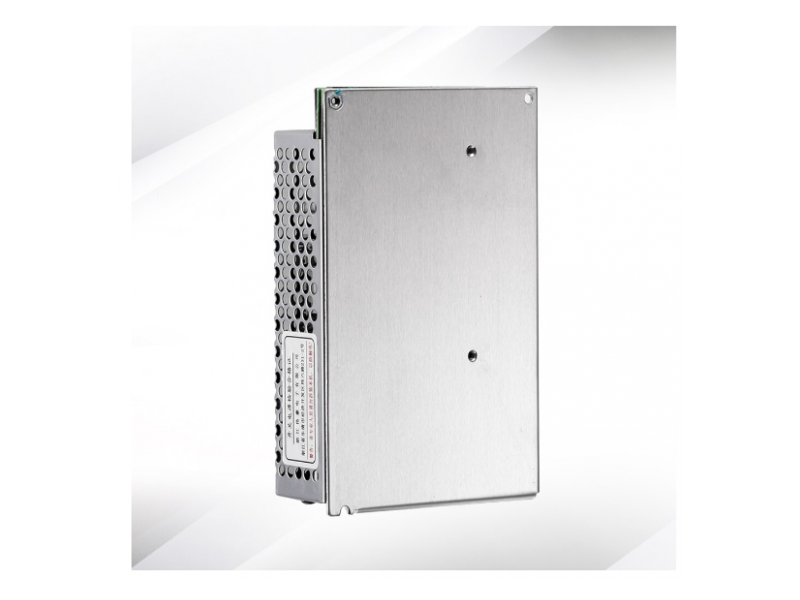

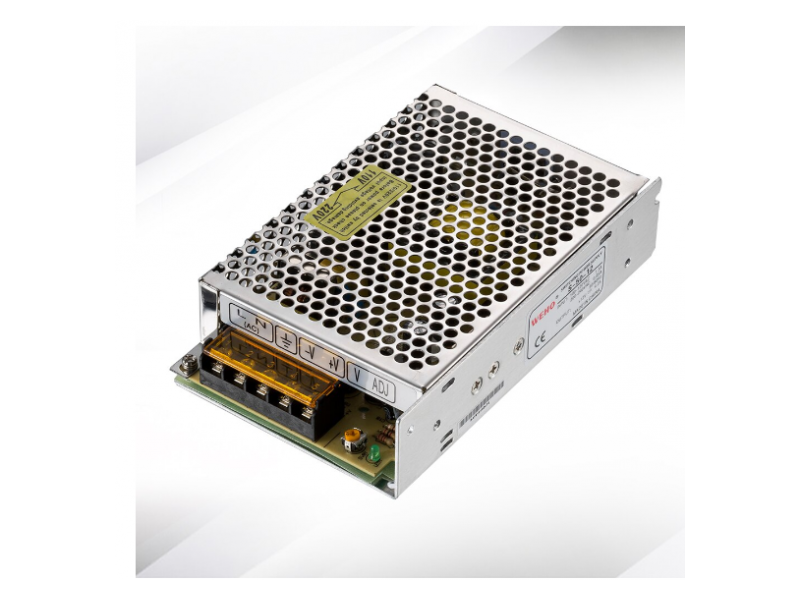

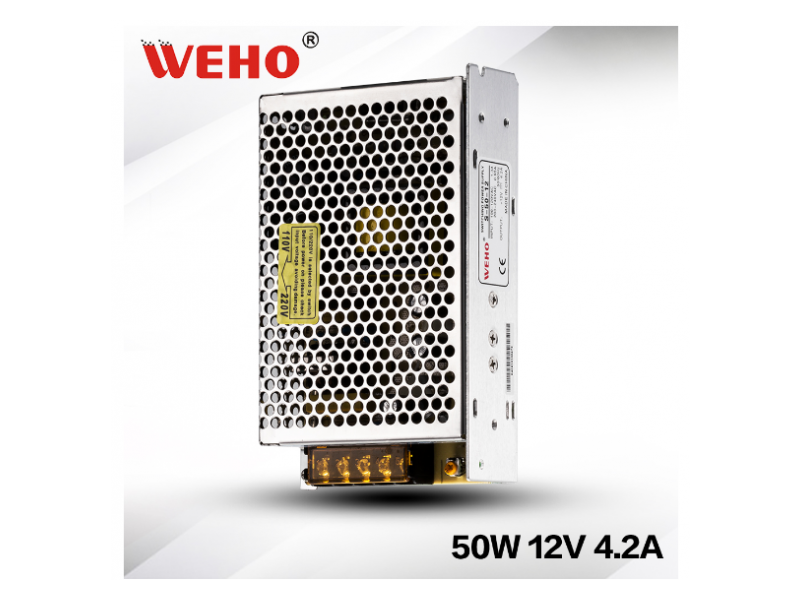

WEHO S-50-12

Napajanje izlaznog napona 12V , izlazne snage 50W , sa mogućnošću promene ulaznog naponskog nivoa. Odlike: Visok stepen efikasnosti, pouzdanost I niska...

Brand: WEHO
Šifra: S-50-12
Dostupnost: Proveriti dostupnost

Proizvod trenutno nije u ponudi
Napajanje izlaznog napona 12V , izlazne snage 50W , sa mogućnošću promene ulaznog naponskog nivoa.
Odlike:
Visok stepen efikasnosti, pouzdanost I niska cena.
Mogućnost izbora nivoa ulaznog napona.
Testiran na 100% opterećenja
Zaštita od kratkog spoja I preopterećenja
Vazdušno hlađenje
Radna učestanost 37 KHz
Dve godine garancije

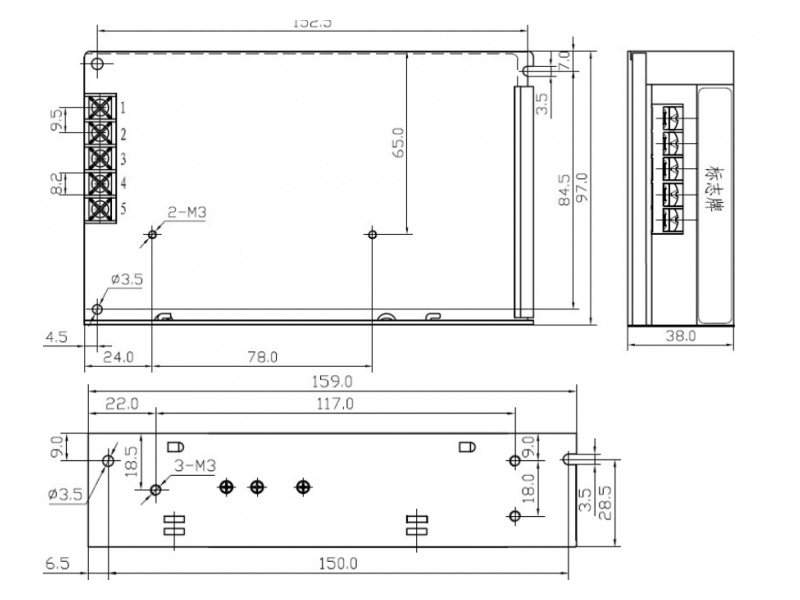

Dimenzije : 159x98x38  mm (L * W * H)

Model

S-50-5

S-50-12

S-50-15

S-50-24

S-50-48

OUTPUT

DC Voltage

5V

12V

15V

24V

48V

Voltage Tolerance

±2%

±1%

±1%

±1%

±1%

Rated Current

10A

4.2A

3.4A

2.1A

1A

Current Range

0-10A

0-4.2A

0-3.4A

0-2.1A

0-1A

Rated Power

50W

50.4W

51W

50.4W

48W

Ripple & Noise

75mVp-p

100mVp-p

100mVp-p

100mVp-p

100mVp-p

DC Adjustment Range

+10,-5%

±10%

±10%

±10%

±10%

Setup, Rise, Hold Time

200ms,100ms,20ms Loaded with

INPUT

Voltage Range

85~132 VAC/170~264VAC 47~63 Hz by switch 240~370VDC

AC Curren

1.3A/115 V 0.65A/ 230 V

Efficiency

71%

78%

78%

82%

84%

Inrush Current

Cold start current
18A/115V 36A/230V

Leakage Current

<1 mA/240VAC

PROTECTION

Overload protection

110%~160%

Protection way: current limiting, automatic recovery

ENVIRONMENT

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

SAFETY

Compression sex

Input/output: 1.5 KVAC input and between
:1.5KVAC Output and to
:0.5KVAC

Insulation resistance

Between the input and output, the input and output, and ground:
100M Ohms/500VDC

STANDARD

Safety standards

meet UL1012

EMC standards

Design refer to FCC Part15 J Conduction Class B

OTHERS

weight

0.5Kg

packaging

30pcs/15.8Kg/0.99CUFT

NOTE

  1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
  2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
  3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
  4. Specific output current see output drop forehead curve.
