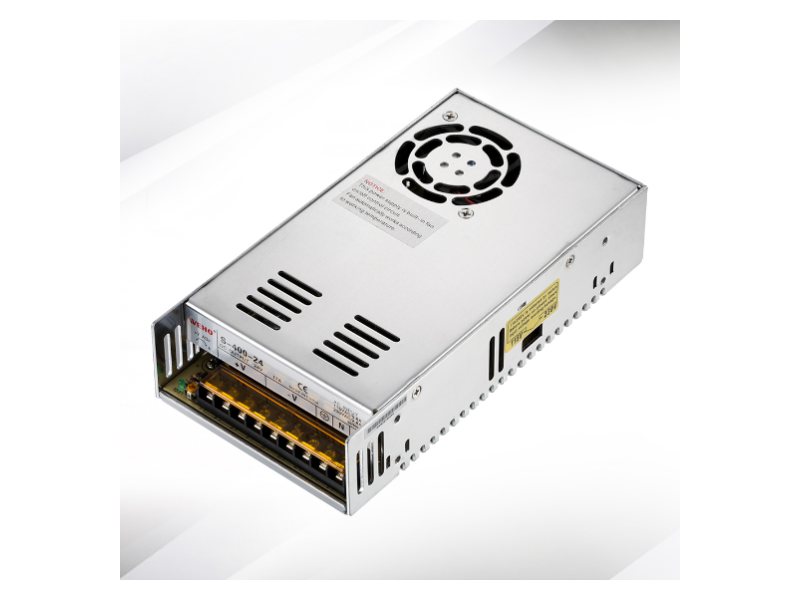

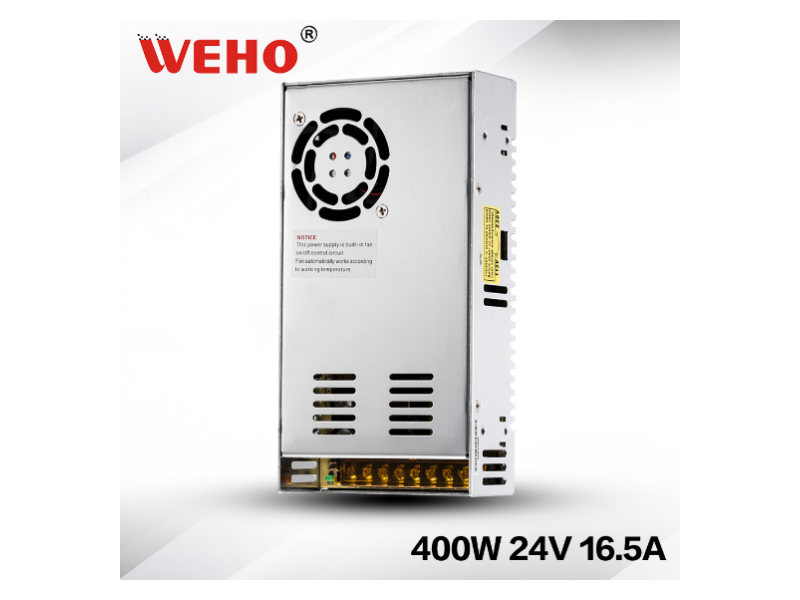

WEHO S-400-24
Izvor napajanja , S-400-24, Izlazne snage 400W, izlazni jednosmerni napon 24V. 86% koeficijent korisnog dejstva Ulazni napon 110/220V naizmeničnog napona 24 meseca...
Trenutno nema na stanju
86% koeficijent korisnog dejstva
Ulazni napon 110/220V naizmeničnog napona
24 meseca garancije
Odlike :

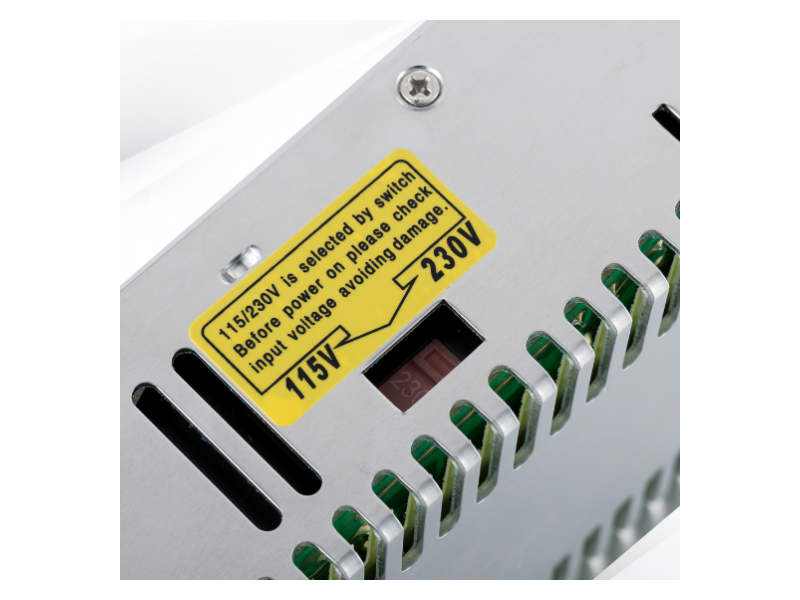

- Mogućnost promene ulaznog naponskog nivoa
- Zaštita od kratkog spoja , preopterećenja , prenapona i pregrevanja
- Testiran na 100% opterećenja
- Visoka pouzdanost
- Cenovno konkurentan
|
Model |
S-400W-5V |
S-400W-12V |
S-400W-15V |
S-400W-24 |
S-400W-48 |
|
DC output voltage |
5V |
12 V |
15 V |
24V |
48V |
|
DC output current |
60A |
33A |
27A |
16.5A |
8.3A |
|
DC output voltage error |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple & noise |
150mV |
150mV |
150mV |
150mV |
150mV |
|
efficiency |
73% |
74 % |
78% |
81% |
83 % |
|
AC input voltage range |
85-132VAC/170-264vac 47-63HZ 240-370VDC |
||||
|
Input current |
6.5A/115V 4A/230V |
||||
|
AC inrush current |
Cola-start current 25A/115V 50A/230V |
||||
|
Leakage current |
<3.5mA/240VAC |
||||
|
DC adjustable range |
±10% rated output voltage |
||||
|
Over load protection |
105-135% cut off the output auto -recovery |
||||
|
Over-voltage protection |
115-135 cut off the output auto -recovery |
||||
|
Setup rise hold up time |
200ms 50ms 20ms |
||||
|
Withstand voltage |
I/P-O/P:1.5KVAC 1minute I/P-FG:1.5KVAC 1minute O/P-O/P:0.5KVAC 1minute |
||||
|
Withstand temperature |
-10°C~+60°C,20%-90% RH |
||||
|
weight |
1.05kg |
||||
