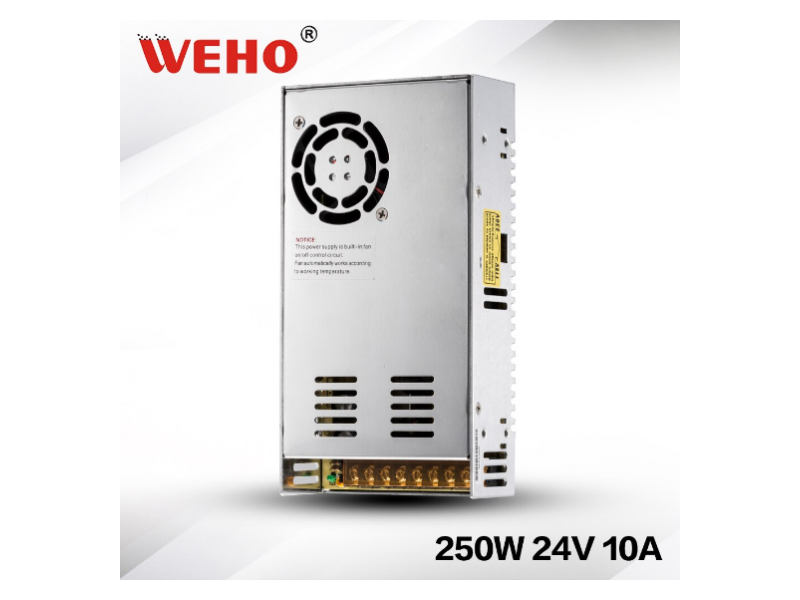

WEHO S-250-24
(S-250-24), izvor napajanja, izlaznog jednosmernog napona 24V, izlazne snage 250W, izlazne struje 10A , visok kvalitet i pouzdanost, 2 godine garancije....
Trenutno nema na stanju
performance |
Product model |
|||||
S-250-5 |
S-250-12 |
S-250-15 |
S-250-24 |
S-250-27 |
S-250-48 |
|
DC output voltage |
5V |
12V |
15V |
24V |
27V |
48V |
output voltage tolerance |
± 2% |
± 1% |
± 1% |
± 1% |
± 1% |
± 1% |
Output current range |
0-45A |
0-20A |
0-16A |
0-10A |
0-9A |
0-5.2A |
Ripple & noise |
80MVp-p |
120MVp-p |
120MVp-p |
120MVp-p |
150MVp-p |
200MVp-p |
advance wire stability |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
load stability |
± 1% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
DC output power |
225W |
240 W |
240W |
240W |
243W |
249.6 W |
efficiency |
74% |
79% |
80% |
81.5% |
82% |
82% |
volts d.c.adjustable extent |
4.5-5.8V |
10-14v |
12-18v |
20-28v |
26-32v |
41-56v |
Input voltage range |
90-132VAC/176-264VACBY switch stability 47-63HZ,254-370VDC |
|||||
Input current |
5.0A/1152.5A/230V |
|||||
dash current |
25A/115V 50A/230V |
|||||
leakage current |
<3.5mA/240VAC |
|||||
overload protection |
105-135% |
|||||
over-voltage protection |
5.75-6.75V |
13.8-16.2V |
18-21V |
27.6-32.4V |
33.7-39.2V |
57.6-67V |
high temperature protection |
RTH3 ≥ 90 ºC |
|||||
temperature coefficient |
± 0.03%(0-50) ºC |
|||||
startup . rise . retention time |
800MS,50MS,16MS |
|||||
antiknock characteristics |
10-500HZ,2G 10min/one Cyc , 60M |
|||||
resistance to pressure |
Input output:1.5KvAC input and crust,1.5KVACoutput and crus,0.5kvAC |
|||||
close resistance |
Input output: input and crust, output and crust.500VDC/100M Ω |
|||||
work temperature. humidity |
-10 ºC - +50 ºC ,20%-90%RH |
|||||
memory temperature. humidity |
-20 ºC - +85 ºC,10%-95%RH |
|||||
outline dimension |
215 × 115 × 50mm |
|||||
weight |
1.15kgs |
|||||
safety standards |
satisfy UL1950 |
|||||
EMC standard |
satisfy 55022, rank b |
