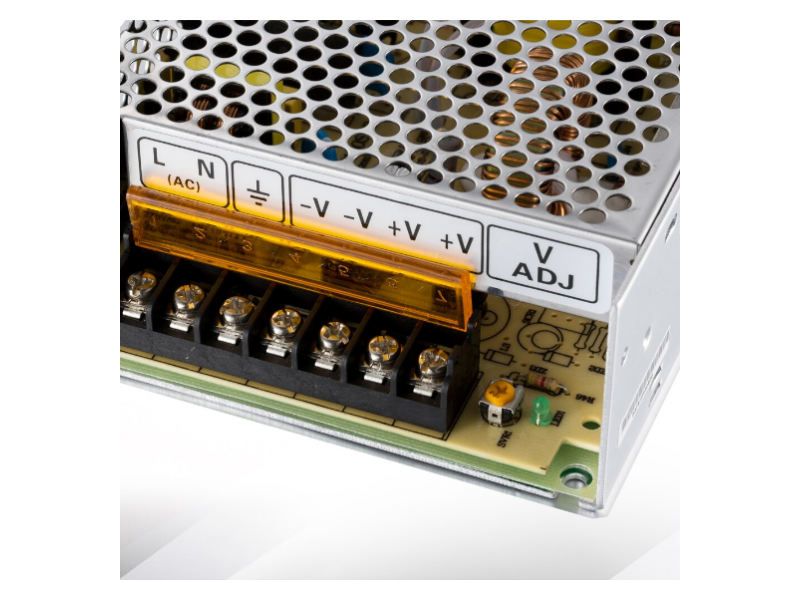

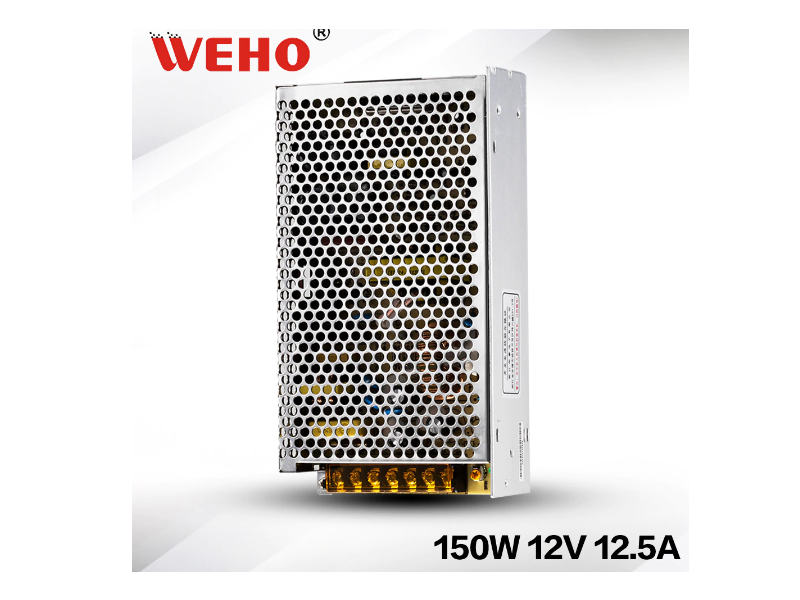

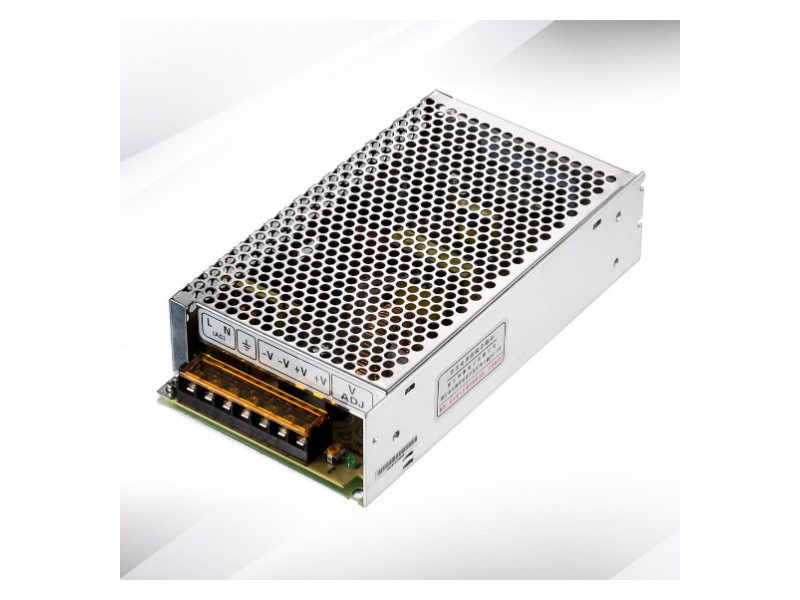

WEHO S-150-12
S-150-12 izvor napajanje, izlazni napon 24V, izlazna snaga 150W. 1 CE ROHS odobreno. 2. AC110/220V ulazni napon. 3. 82% stepen korisnog dejstva 4.2 godine garan...
Trenutno nema na stanju
1 CE ROHS odobreno.
2. AC110/220V ulazni napon.
3. 82% stepen korisnog dejstva
4.2 godine garancije
Model Specification |
S-150-7.5 |
S-150-9 |
S-150-12 |
S-150-13.5 |
S-150-15 |
S-150-24 |
DC Output voltage |
7.5V |
9V |
12V |
13.5V |
15V |
24V |
Output voltage range(Note:2) |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Rated output current |
20A |
16.7A |
12.5A |
11.2A |
10A |
6.5A |
Output current range |
0~20A |
0~16.7A |
0~12.5A |
0~11.2A |
0~10A |
0~6.5A |
Wave and noise(Note:3) |
150mVp-p |
120mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
Inlet stability(Note:4) |
±0.5% |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
±0.2% |
Load stability(Note:5) |
±0.5% |
±0.3% |
±0.3% |
±0.3% |
±0.3% |
±0.2% |
DC output power |
150W |
150.3W |
150W |
151.2W |
150W |
156W |
Efficiency |
80% |
80% |
82% |
83% |
84% |
85% |
Adjustable range for DC voltage |
6~8.3V |
8~10.4V |
10.6~13.2V |
12~15V |
13.5~16.5V |
21~28V |
AC input voltage range |
85~132VAC/176~264VAC selected by switch 47~63Hz,248~370VDC |
|||||
Input current |
3.2A/115V 1.6A/230V |
|||||
AC Inrush current |
Cold-start current 30A/115V 60A/230V |
|||||
Leakage current |
<3.5mA/240VAC |
|||||
Overload protection |
105 ~ 150% Protection type :pulsing hiccup shutdown Reset: auto recovery. |
|||||
Over-voltage protection |
115%~135% Protection type :shut off output |
|||||
Temperature coefficient |
±0.03%/°C(0~50°C) |
|||||
Setup, rise, hold up time |
100ms, 50ms, 20ms |
|||||
Vibration |
10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes |
|||||
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||||
Working temperature and humidity |
-10°C~+60°C(Refer to output load derating curve),20%~90%RH |
|||||
Overall dimension |
199X98X38mm (L*W*H) |
|||||
Weight |
0.85kgS |
|||||
Safety standards |
UL 1950 TUV EN60950 Approved |
|||||
EMC standards |
CISPR22(EN 5022),IEC1000-4-2,3,4 IEC1000-3-2Verification |
