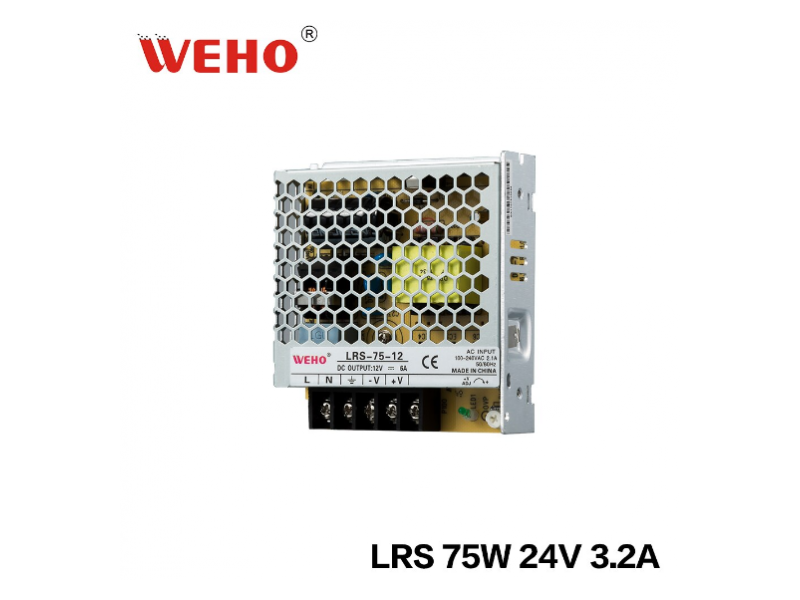

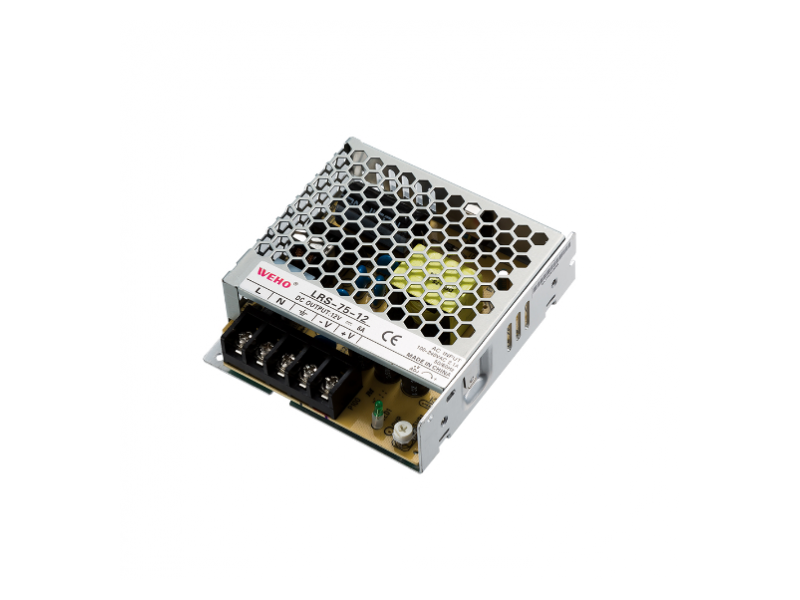

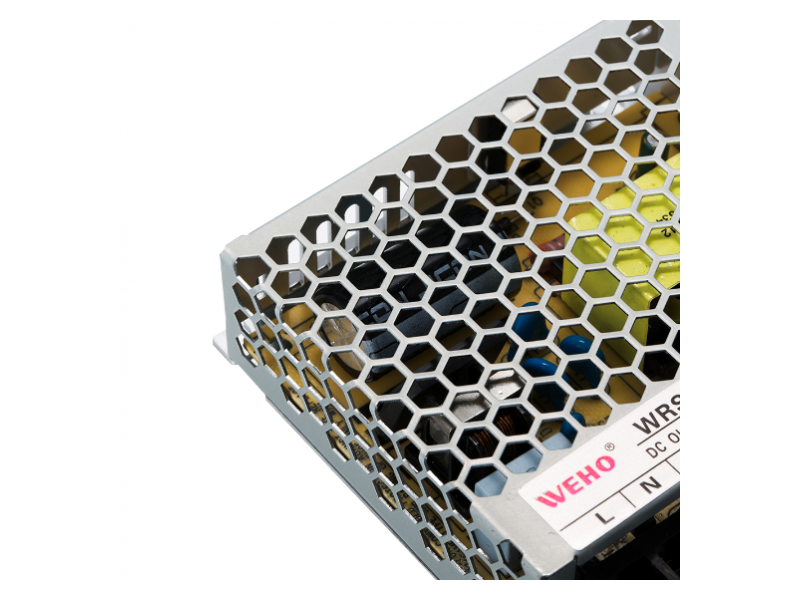

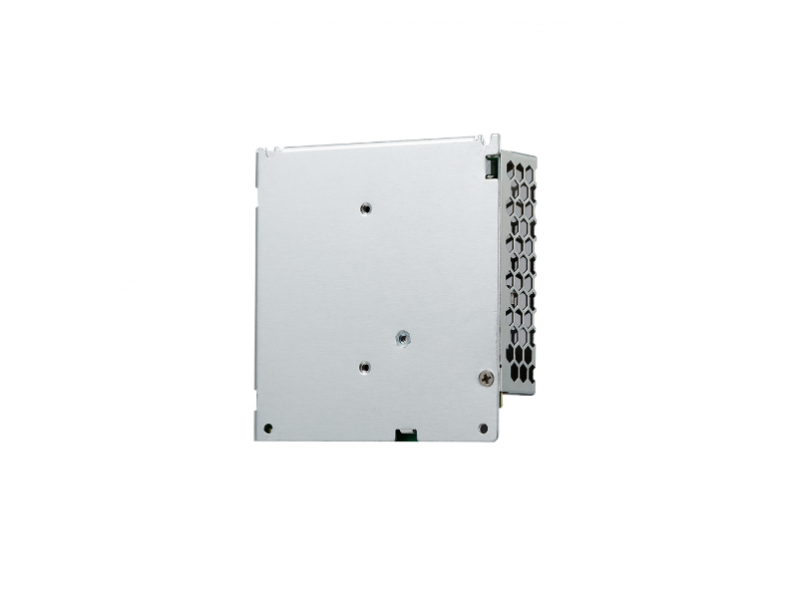

WEHO LRS-75-24

Izvor napajanja LRS serije, 24V izlazni napon , 75W izlazna snaga Odlike : 1.Ulaz naizmeničnog napona 85-264VAC, 47-63Hz 2.Zaštita od kratkog spoja ,preopterećenja...

Brand: WEHO
Šifra: LRS-75-24
Dostupnost: Proveriti dostupnost
1.201,78
Cena bez pdv-a: 1.201,78
Izvor napajanja LRS serije, 24V izlazni napon , 75W izlazna snaga

Odlike :

1.Ulaz naizmeničnog napona 85-264VAC, 47-63Hz

2.Zaštita od kratkog spoja ,preopterećenja i prenapona
3.Prirodno hlađenje vazduhom
4.Visoka efikasnost, dug radni vek i visok nivo pouzdanosti
5.Testiran na 100% opterećenja

6.Radna temperatura do 60 stepeni Celzijusa
7. Testiran na napon proboja od 300V na 5sekundi
8.Gubici kada nije opterećen manji od 0.2W
9.Radna nadmorska visina do 5000m
10. LED indikacija uključenosti
11. Dve godine garancije

Model LRS-75-5 LRS-75-12 LRS-75-15 LRS-75-24 LRS-75-36 LRS-75-48
Dc output voltage 5V 12V 15V 24V 36V 48V
Rated output current 14A 6A 5A 3.2A 2.1A 1.6A
Output current rage 0-14A 0-6A 0-5A 0-3.2A 0-2.1A 0-1.6A
Rated Power 70W 72W 75W 76.8W 75.6W 76.8W
Wave and noise 100mVp-p 120mVp-p 120mVp-p 150mVp-p 200mVp-p 200mVp-p
Voltage ADJ. range 4.5-5.5V 10.2-13.8V 13.5-18V 21.6-28.8V 32.4-39.6V 43.2-52.8V
Voltage tolerance ±2% ±1% ±1% ±1% ±1% ±1%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 86.5% 89.0% 89.0% 90.0% 91.5% 91.5%
AC input voltage range AC85~264V 47~63Hz;120~373VDC
Input current 1.4A/115V 0.85A/230V
AC INnrush current Cold-start 50A/230V
Overload proctection 110%~150% Potection type: Hiccp mode,recobers automatically after condition recoverd
Over-voltage protection 5.75-6.75V 13.8-16.2V 18.75-21.75V 28.8-33.6V 41.4-48.6V 55.2-64.8V
Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time 500ms,30ms/230VAC 500ms,30ms/115VAC at full lod
Hold up time 60ms/230VAC ,12ms/115VAC at full lod
Withstand voltage I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature -30°C~+70°C
Overall dimension 99*97*30mm
Safety standards Meet ULGB4943 UL60950 EN60950
EMC standards Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight 0.3Kgs
