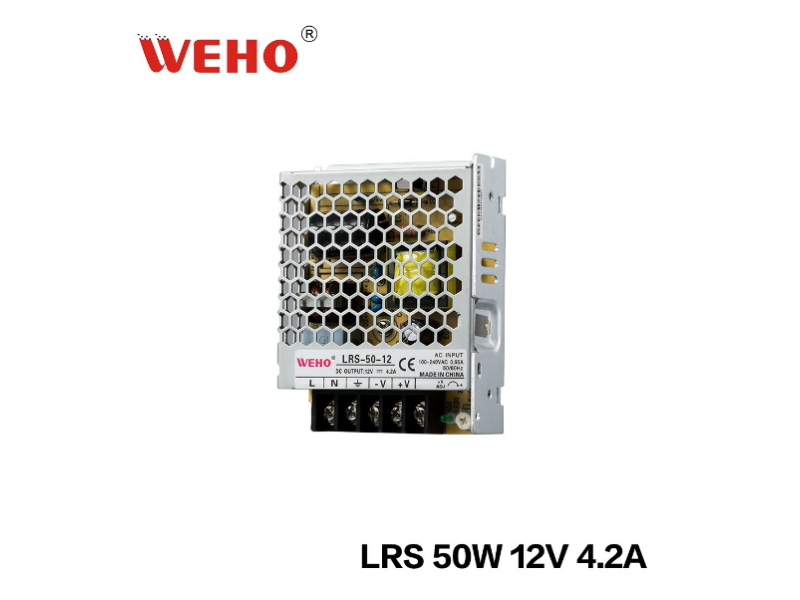

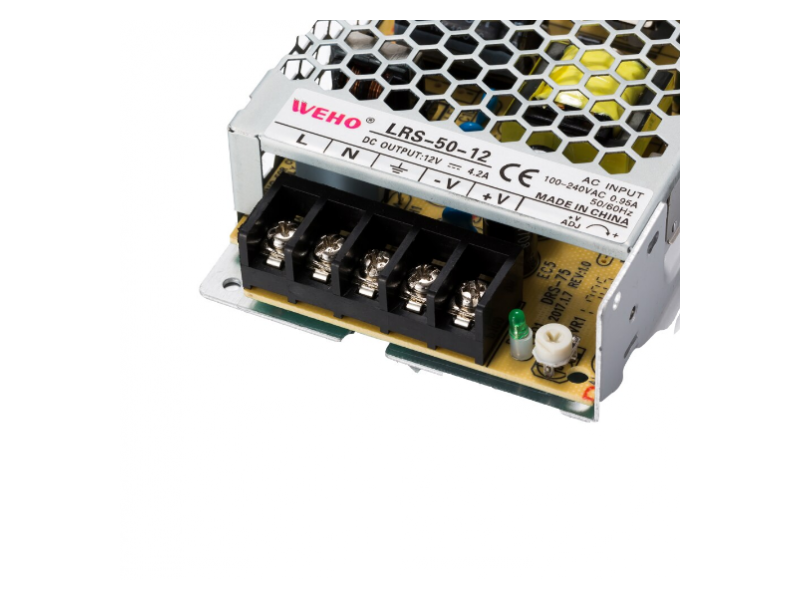

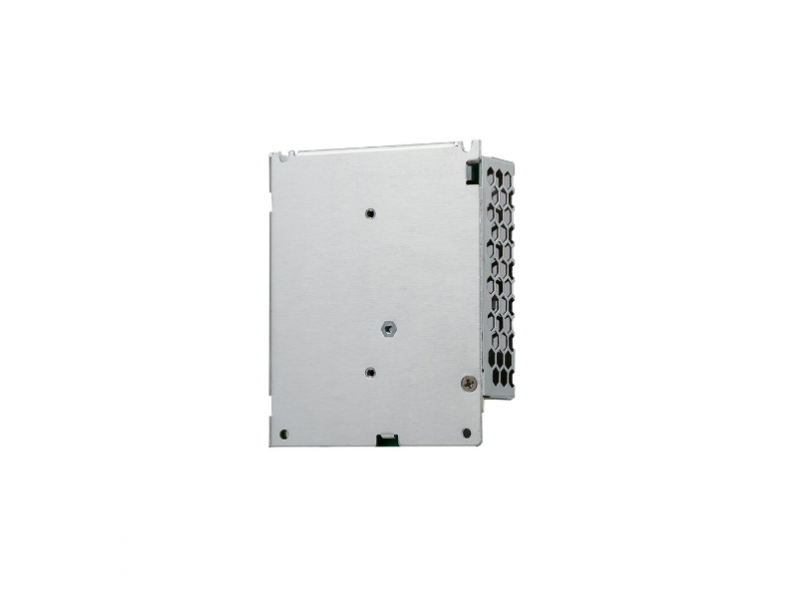

WEHO LRS-50-12

Izvor napajanja LRS serije, 12V izlazni napon , 50W izlazna snaga Odlike : 1.Ulaz naizmeničnog napona 85-264VAC, 47-63Hz 2.Zaštita od kratkog spoja ,preopterećenja...

Brand: WEHO
Šifra: LRS-50-12
Dostupnost: Proveriti dostupnost
1.030,10
Cena bez pdv-a: 1.030,10
Izvor napajanja LRS serije, 12V izlazni napon , 50W izlazna snaga

Odlike :

1.Ulaz naizmeničnog napona 85-264VAC, 47-63Hz

2.Zaštita od kratkog spoja ,preopterećenja i prenapona
3.Prirodno hlađenje vazduhom
4.Visoka efikasnost, dug radni vek i visok nivo pouzdanosti
5.Testiran na 100% opterećenja

6.Radna temperatura do 60 stepeni Celzijusa
7. Testiran na napon proboja od 300V na 5sekundi
8.Gubici kada nije opterećen manji od 0.2W
9.Radna nadmorska visina do 5000m
10. LED indikacija uključenosti
11. Dve godine garancije

Model

LRS-50-5

LRS-50-12

LRS-50-15

LRS-50-24

LRS-50-36

LRS-50-48

Dc output voltage

5V

12V

15V

24V

36V

48V

Rated output current

10A

4.2A

3.4A

2.2A

1.45A

1.1A

Output current rage

0-10A

0-4.2A

0-3.4A

0-2.2A

0-1.45A

0-1.1A

Rated Power

50W

50.4W

51W

52.8W

52.2W

52.8W

Wave and noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

200mVp-p

200mVp-p

Voltage ADJ. range

4.5-5.5V

10.2-13.8V

13.5-18V

21.6-28.8V

32.4-39.6V

43.2-52.8V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±1%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

83%

86%

88%

88%

89%

90%

AC input voltage range

AC85~264V 47~63Hz;120~373VDC

Input current

0.95A/115V 0.56A/230V

AC INnrush current

Cold-start 45A/230V

Overload proctection

110%~150% Potection type: Hiccp mode,recobers automatically after condition recoverd

Over-voltage protection

5.9-7.3V

13.8-16.2V

18.75-21.75V

28.8-33.6V

41.4-48.6V

55.2-64.8V

Potection type :Shut down o/p voltage,re-power on to recover

Setup rise time

1000ms,30ms/230VAC 2000ms,30ms/115VAC at full lod

Hold up time

30ms/230VAC ,12ms/115VAC at full lod

Withstand voltage

I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH

Working temperature

-30°C~+70°C

Overall dimension

99*82*30mm

Safety standards

Meet ULGB4943 UL60950 EN60950

EMC standards

Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B

Weight

0.23Kgs
