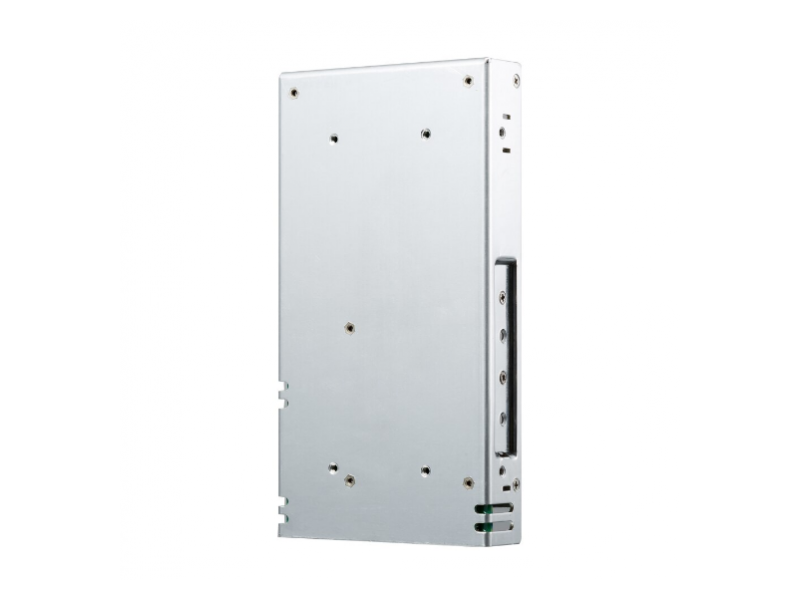

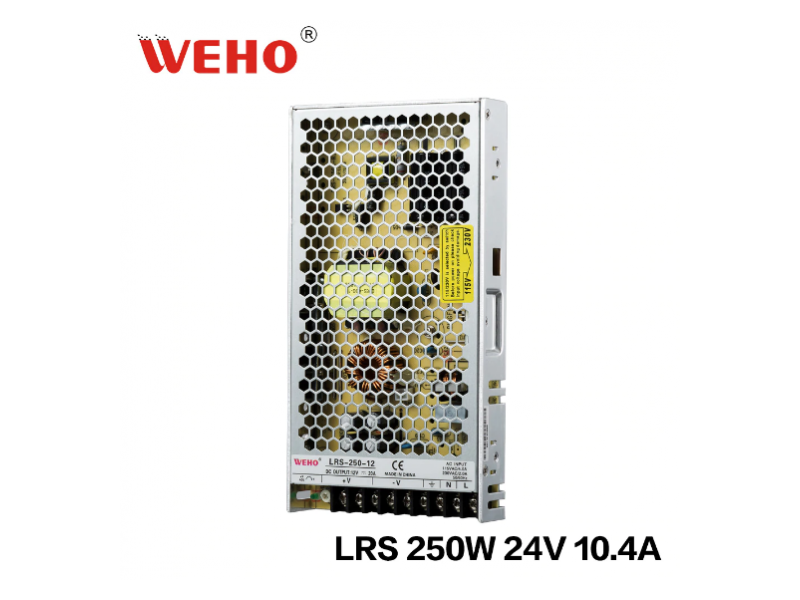

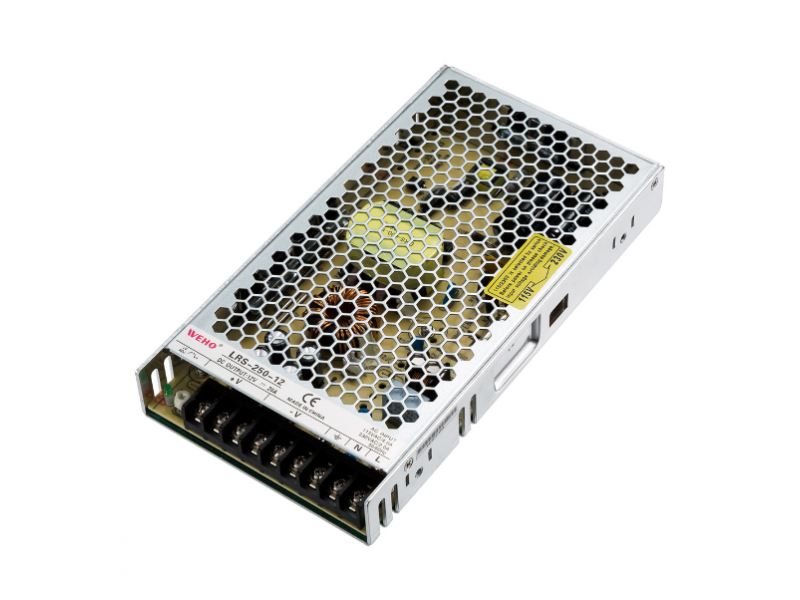

MODEL

LRS-250-12

LRS-250-24

OUTPUT

DC VOLTAGE

12V

24V

RATED CURRENT

20.8A

10.4A

CURRENT RAGE

0~17.0A

0~10.4A

RATED POWER

250W

250W

RIPPLE&NOISE(max.)(Note 2)

150mVp-p

150mVp-p

VOLTAGE ADJ.RANGE

10.2~13.8V

21.6~28.8V

VOLTAGE TOLERANCE(Note 3)

±1.0%

±1.0%

LINE REGULATION(Note 4)

±0.5%

±0.5%

LOAD REGULATION(Note 5)

±0.5%

±0.5%

SETUP ,RISE TIME

500ms,30ms/230VAC 500ms,30ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE

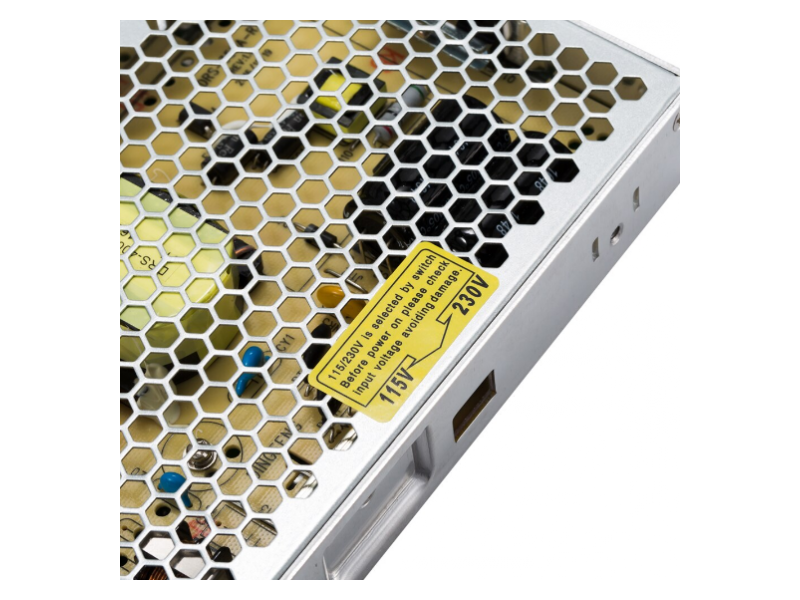

85~132VAC /170~264VAC by switch 240~370VDC (switch on 230VAC)

FREQUENCY RANGE

47~63Hz

EFFICIENCY

87.50%

88.00%

AC CURRENT(Typ.)

4.0A/115VAC 2.2A/230VAC

INRUSH CURRENT (Typ.)

COLD STAR 60A/230VAC

LEAKAGE CURRENT

<2.0mA/240VAC

PROTECTION

OVER LOAD

110~140% rated output power

Protection type :Hiccup mode,recovers automatically after fault condition is removed

OVER VOLTAGE

13.8~16.2V

28.8~33.6V

Protection type :Shut down o/p voltage , re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage , re-power on to recover

ENVIROMENT

WORKING TEMP.

-30~+70℃

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEM.,HUMIDITY

-40~+85℃ , 10~95% RH

TEMP.COEFFICIENT

±0.03%/℃ (0~50℃)

VIBRATION

10~500Hz , 5G 10min./1cycle , 60min. each along X,Y,Z axes

SAFETY &
EMC
(Note 7)

SAFETY STANDARDS

EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC I/ P-FG:1.5 KVAC O/P-FG:0.5 KVAC

ISOLATION RESISTANCE

I/ P-O/P, I/ P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) ,EN55024

EMC IMMUNITY

Compliance to EN61000-3-2,3

OTHERS

MTBF

601K h r s min. MIL-HDBK-217F ( 25℃)

DIMENSION

215*115*30mm (L*W*H)

PACKING

0.6Kg ; 30pcs/18.5Kg/38*25*39CM

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF
the power supply very quickly may lead to increase of the set up time.
7. The power supply is considered a component which will be installed into a final equipment.
All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate
with 1mm of thickness. The final equipment must be re-confirmed that it still meets
EMC direc ves. For guidance on how to perform these EMC tests, please refer to EMI tes ng of component power supplies.
8. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater
than 2000m (6500ft).
