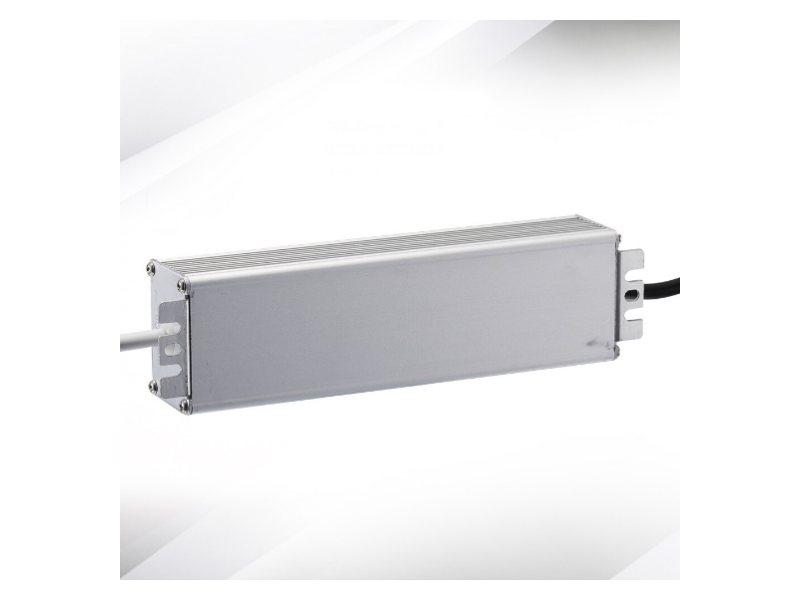

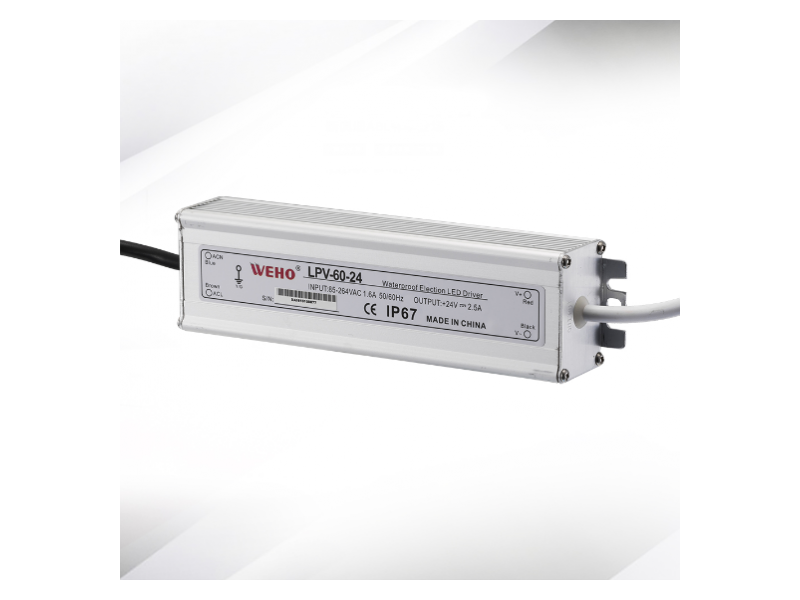

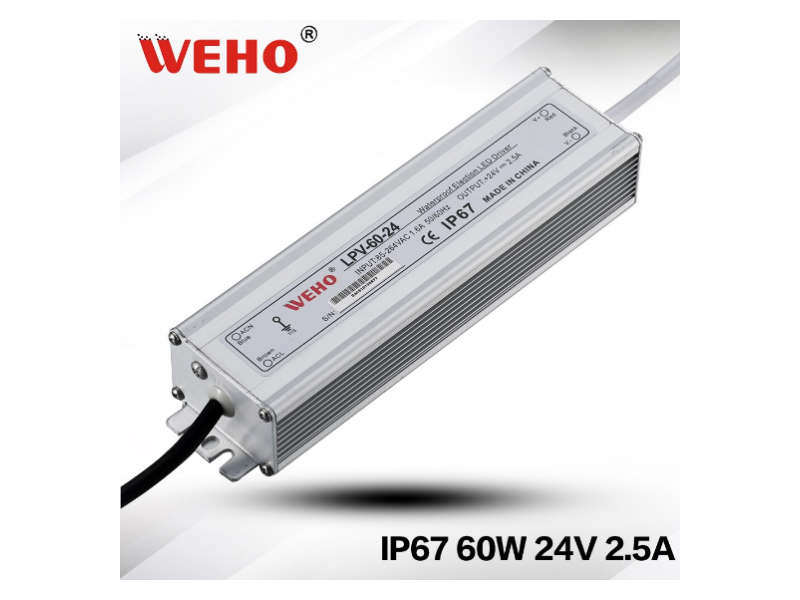

WEHO LPV-60-24
LED napajanje LPV-60-24 , izlazne snage 60W, izlazni napon 24 V u IP67 izvedbi Odlike : Stabilisan napon Ulazni naponski nivo 86-264V naizmeničnog napona Izdržljiv...
Trenutno nema na stanju
Odlike :
- Stabilisan napon
- Ulazni naponski nivo 86-264V naizmeničnog napona
- Izdržljiv na napon od 300VAC u intervalu od 5 sekundi
- Zaštita od kratkog spoja, preopterećenja , prenapona
- Visoka pouzdanost i efikasnost
- Prirodno hlađenje vazduhom
- IP67 izvedba
- Pogodan za napajanje LED rasvete
- 2 godine garancije
|
model |
LPV-60-12 | LPV-60-24 | LPV-60-36 | |
| output |
Dc output voltage |
12V | 24V | 36V |
|
Output voltage tolerance |
±3% | ±3% | ±3% | |
|
Rated output current |
5A | 2.5A | 1.7A | |
|
Output current range |
0-5A | 0-2.5A | 0-1.7A | |
|
Output power |
60W | 60W | 61W | |
|
Ripple and the noise |
100mVp-p | 150mVp-p | 180mVp-p | |
|
Dc voltage adjustable scope |
±10% | ±10% | ±10% | |
|
Start, rise, keep time |
500ms,20ms,24ms/230VAC |
|||
| input |
Input voltage range |
180～264VAC 47～63Hz，254～370VDC |
||
|
Exchange input current |
1.4A/115VAC 0.7A/230VAC |
|||
|
efficiency |
81% | 83% | 85% | |
|
Impulse current |
Cold start current 35A/230VAC |
|||
|
Leakage current |
＜1mA/240VAC |
|||
| Protection characteristics |
过载保护 |
Protection way: hiccups mode, load abnormal conditions can be removed recovery |
||
| environment |
Overload protection |
-10℃～+60℃;20%～90%RH(Please refer to reduce the specified number load curve ) |
||
|
Keep temperature, humidity |
-20℃～+85℃;10%～95%RH No condensation |
|||
|
Vibrate resistance |
10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis |
|||
| security |
Compression sex |
Between input and output ：1.5KVAC |
||
|
Insulation resistance |
Between input and output ：100M Ohms/500VDC |
|||
| Standards |
Safety standards |
Accord with UL1012 |
||
|
EMC standard |
Accord with EN55022，CLASSA |
|||
| other |
weight |
0.82kg 180*68*50mm（L*W*H） |
||
|
packaging |
0.82kg/18pcs/18kg |
|||
