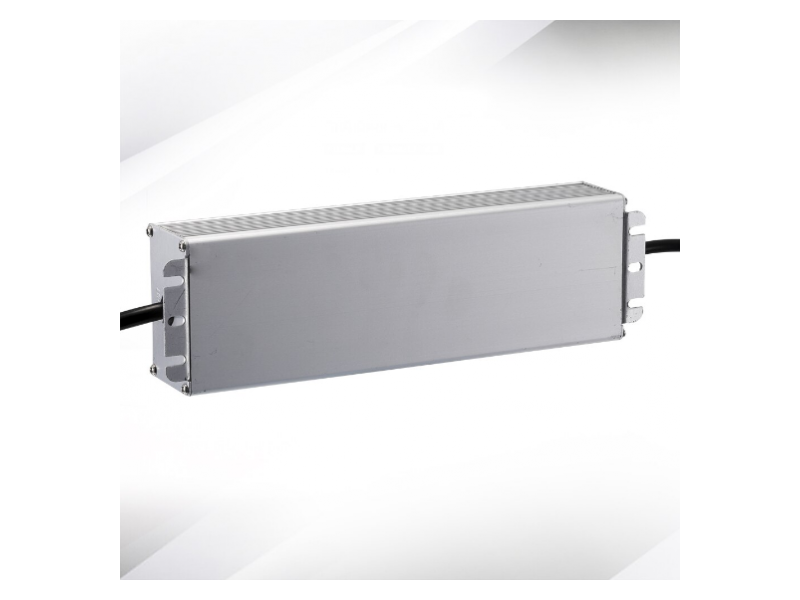

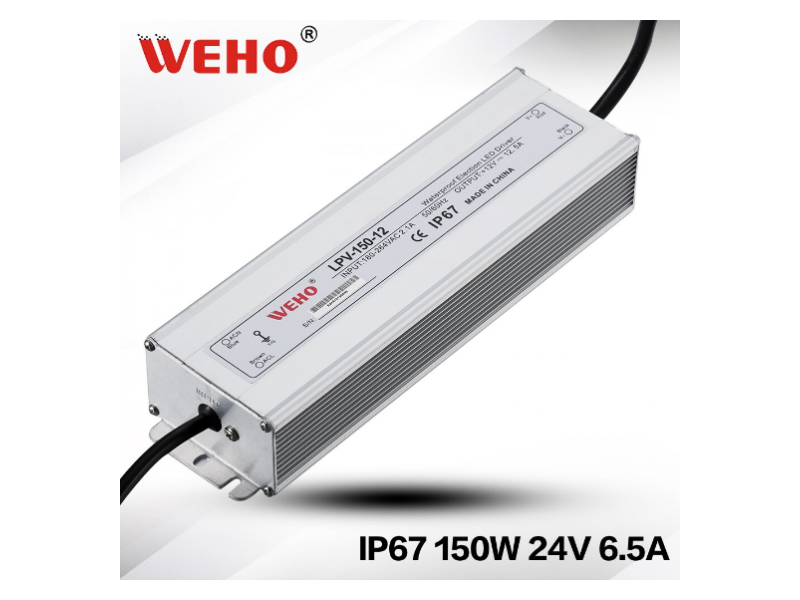

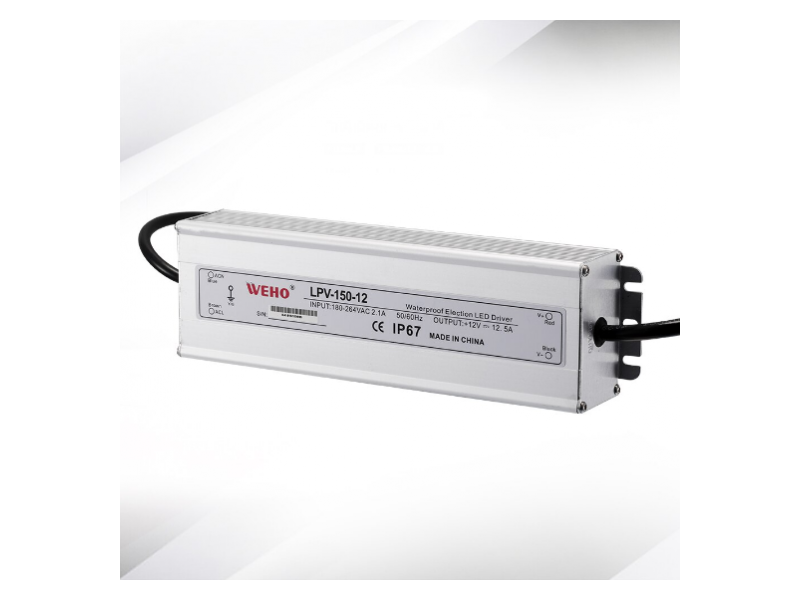

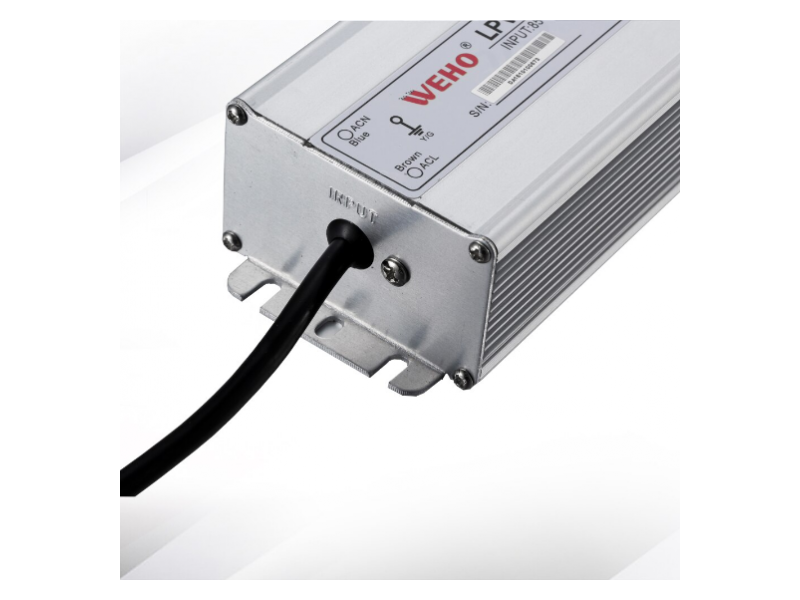

WEHO LPV-150-24
LED napajanje LPV-150-24 , izlazne snage 150W, izlazni napon 24 V u IP67 izvedbi Odlike : Stabilisan napon Ulazni naponski nivo 86-264V naizmeničnog napona Izdržljiv...
Trenutno nema na stanju
Odlike :
- Stabilisan napon
- Ulazni naponski nivo 86-264V naizmeničnog napona
- Izdržljiv na napon od 300VAC u intervalu od 5 sekundi
- Zaštita od kratkog spoja, preopterećenja , prenapona
- Visoka pouzdanost i efikasnost
- Prirodno hlađenje vazduhom
- IP67 izvedba
- Pogodan za napajanje LED rasvete
- 2 godine garancije
model |
LPV-150-12 | LPV-150-24 | LPV-150-36 | |
output |
Dc output voltage |
12V | 24V | 36V |
Output voltage tolerance |
±3% | ±3% | ±3% | |
Rated output current |
12.5A | 6.5A | 4.2A | |
Output current range |
0~12.5A | 0~6.5A | 0~4.2A | |
Output power |
150W | 151W | 151W | |
Ripple and the noise |
120mVp-p | 150mVp-p | 180mVp-p | |
Dc voltage adjustable scope |
±10% | ±10% | ±10% | |
Start, rise, keep time |
1000ms,30ms,24ms/230VAC |
|||
input |
Input voltage range |
180~264VAC 47~63Hz,254~370VDC |
||
Exchange input current |
1.8A/230VAC |
|||
efficiency |
82% | 84% | 85% | |
Impulse current |
Cold start current 40A/230VAC |
|||
Leakage current |
<2.5mA/240VAC |
|||
Protection characteristics |
Overload protection |
Protection way: hiccups mode, load abnormal conditions can be removed recovery |
||
environment |
Working temperature, humidity |
-10℃~+60℃;20%~90%RH(Please refer to reduce the specified number load curve ) |
||
Keep temperature, humidity |
-20℃~+85℃;10%~95%RH No condensation |
|||
Vibrate resistance |
10~500Hz,2G 10min./ 1 cycle time, 60 minutes, the axis |
|||
security |
Compression sex |
Between input and output :1.5KVAC |
||
Insulation resistance |
Between input and output :100M Ohms/500VDC |
|||
security |
Safety standards |
Accord with UL1012 |
||
EMC standard |
Accord with EN55022,CLASSA |
|||
other |
weight |
2.5kg 233*122*60mm(L*W*H) |
||
packaging |
2.5kg/9pcs/22.5kg |
|||
note |
1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value. |
